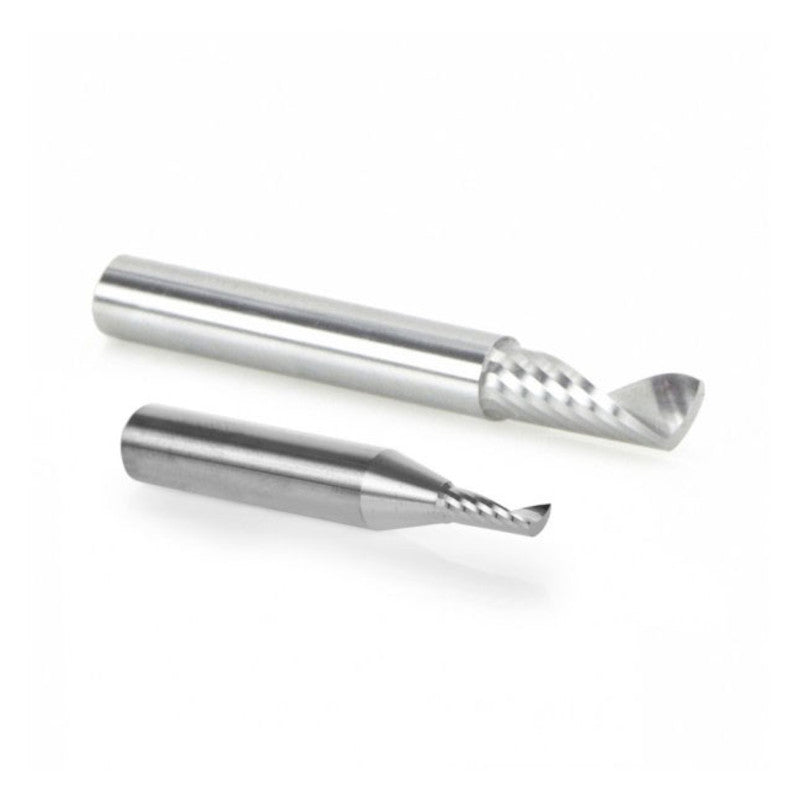

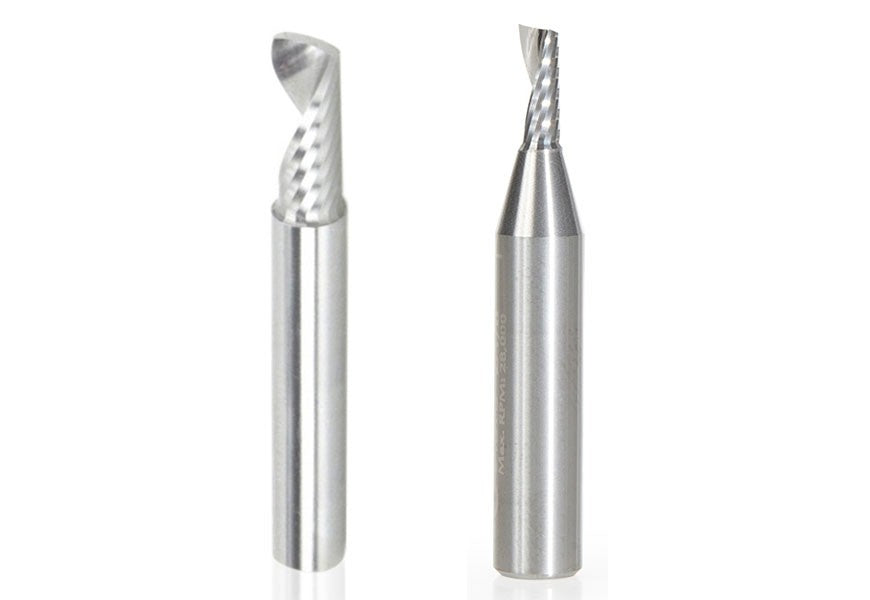

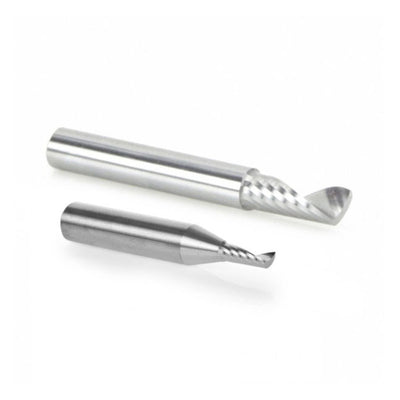

The Axiom ABS-307 Aluminum Bit Set includes the ideal tooling for cutting or pocketing aluminum, brass, bronze, copper or nearly any non-ferrous metal. The special geometry of these ‘O’ flute bits provides a superior finish and long tool life.

*Vcarve and Aspire users* The purchase of this Axiom router bit set includes a free download of the tooling geometry and simple instructions which allow you to easily import your new bits directly into your Vectric tooling database.

Tool File Download

Solid Carbide CNC Spiral ‘O’ Flute, Aluminum Cutting 1/8 Dia x 5/16 x 1/8 Shank Up-Cut:

Includes precision steel 1/4” to 1/8” collet reducer bushing

Direction Up-Cut (D) Diameter 1/4 (B) Cutting Height 5/8 (d) Shank 1/4 Overall Length (L) 2 Flutes 1

Solid Carbide CNC Spiral ‘O’ Flute, Aluminum Cutting 1/4 Dia x 5/8 x 1/4 Inch Shank Up-Cut:

Direction Up-Cut (D) Diameter 1/4 (B) Cutting Height 5/8 (d) Shank 1/4 Overall Length (L) 2 Flutes 1
