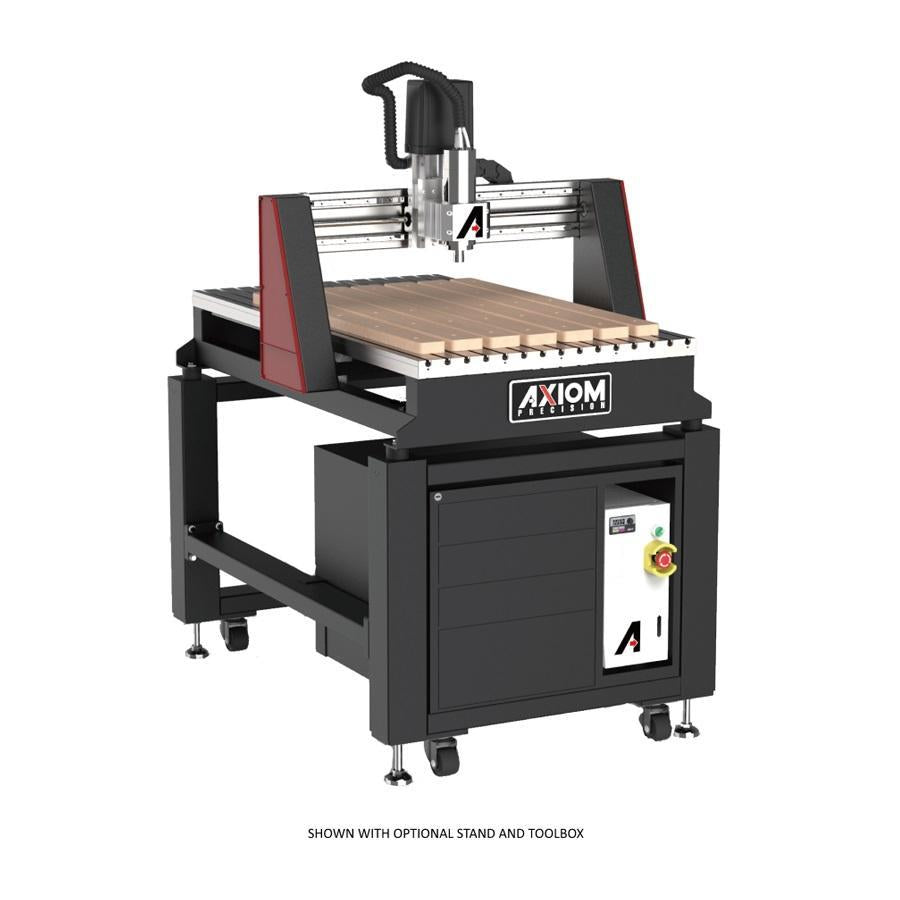

Axiom AR6 Pro V5 - 24" x 36" CNC Router
Couldn't load pickup availability
Questions? - We are here to help!
Call us at 1-877-231-342
or local at 204-231-3429
The new Axiom Precision AutoRoute PROV5 Series of CNC routers offers all of the great features you’ve come to know and love from our Pro+ series of machines but adds increased holding torque with 48V stepper motors, an improved cooling system, and higher spindle performance thanks to an upgraded VFD.
The new PRO also has a fresh new look.
These new Axiom CNC machines are now stronger, faster, and easier to maintain than ever before.
The updated PRO series offers 4-axis capability, powerful electro spindle performance, and rotary machining capability in a compact industrial machine.
Our PRO series CNC routers provide a full 6.5” of gantry clearance and a quiet yet powerful 3HP electro-spindle with integrated liquid cooling system.
Each PRO series machine is also prewired to accept our optional Rotary Kit.

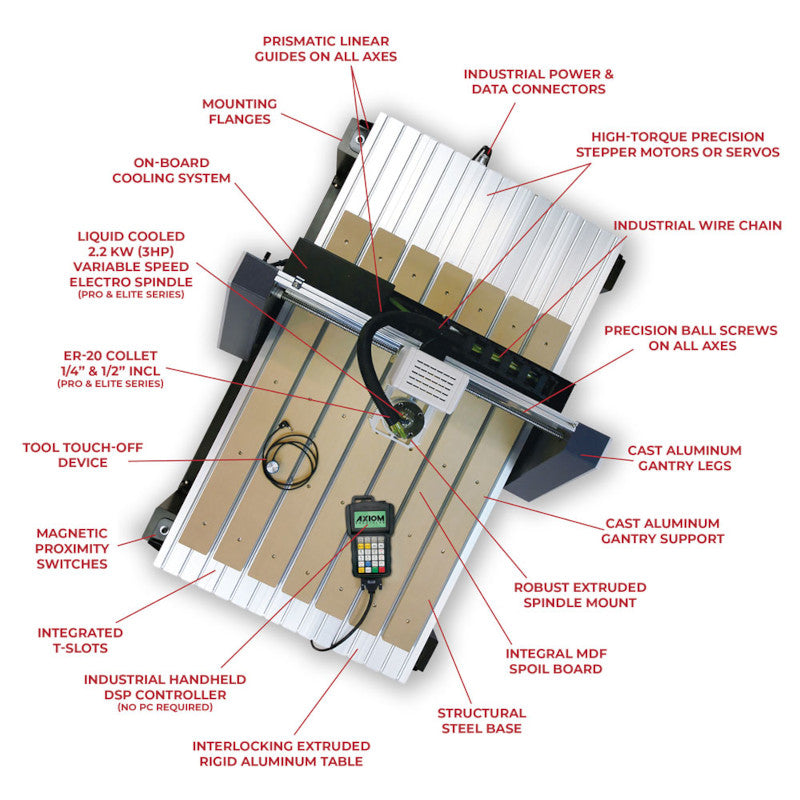

The Axiom AutoRoute PRO Series CNC routers also offer precision ball screws, prismatic guides, a robust steel frame, and interlocking aluminum table.
In addition, the integrated MDF spoil boards provide the exacting precision you need as they can easily be milled flat for a true perpendicular surface to the spindle.
Choose from three footprint options:
- 24” x 24”
- 24” x 36”
- 24” x 48”
There is no need to attach your CNC router to your computer to operate it. Simply transfer your file to the handheld controller via USB storage device. The handheld RichAuto B18 controller is a powerful, lightweight and easy to use controller with over a decade of proven results in demanding applications.
|X axis travel||24″ (610mm)|
|Y axis travel||AR4 = 24.1″ (610mm)
AR6 = 35.82 (910mm)
AR8 = 47.63″ (1210mm)
|Z axis travel||5.9″ (150mm)|
|C axis travel||360deg|
|Table work area||AR4 = 28.4″ x 39″
AR6 = 28.4″ x 51″
AR8 = 28.4″ x 63″
|Included Collets||1/4″ & 1/2″|
|Spindle speed||0~24000 RPM|
|Rapid shuttle speed||300 IPM (5 MPM)|
|Precision Linear Guideway||X/Y/Z|
|Precision Ball Screw||X/Y/Z|
|Ball Screw Diameter||16mm|
|Resolution||+/- .00393″ (0.10mm)|
|Power requirements||220 V,50~60 Hz, 10A, 1-Phase|
|Working Table||High rigidity Aluminum Extrusion|
|Gantry bridge||High rigidity Aluminum Extrusion|
|Gantry Supports||Aluminum alloy gravity cast|
|Gantry Clearance (from table)||6.5″ (165.1mm)|
|Gantry Clearance (from mdf spoil board)||5.5″ (139.7mm)|
|Machine Base||All Welded Steel|
|Frame Machine Dimensions||AR4 = 39.17″L x 37.36″W x 30.27″H
AR6 = 51.18″L x 37.36″W x 30.27″H
AR8 = 62.99″L x 37.36″W x 30.27″H
|Shipping Dimensions||AR4 = 42″L x 39″W x 33″H
AR6 = 53″L x 39″W x 33″H
AR8 = 65″L x 39″W x 33″H
|Shipping Weight||AR4 = 320 lbs
AR6 = 360 lbs
AR8 = 405 lbs
|Tool Touch-Off Device||Included|
|Onboard Cooling System||Included|
|Controller||Richauto B18 DSP 4-Axis Controller
CNC motion control system
USB port for easy file transfer.
|Language||Support English / Chinese|
|Product Manual||View Product Manual|
