Axiom AR8 Pro V5 - 24" x 48" CNC Router

In stock
Regular price $11,999.00

Questions? - We are here to help!

Call us at 1-877-231-342

or local at 204-231-3429

The new Axiom Precision AutoRoute PROV5 Series of CNC routers offers all of the great features you’ve come to know and love from our Pro+ series of machines but adds increased holding torque with 48V stepper motors, an improved cooling system, and higher spindle performance thanks to an upgraded VFD.

The new PRO also has a fresh new look.

These new Axiom CNC machines are now stronger, faster, and easier to maintain than ever before.

The updated PRO series offers 4-axis capability, powerful electro spindle performance, and rotary machining capability in a compact industrial machine.

Our PRO series CNC routers provide a full 6.5” of gantry clearance and a quiet yet powerful 3HP electro-spindle with integrated liquid cooling system.

Each PRO series machine is also prewired to accept our optional Rotary Kit.

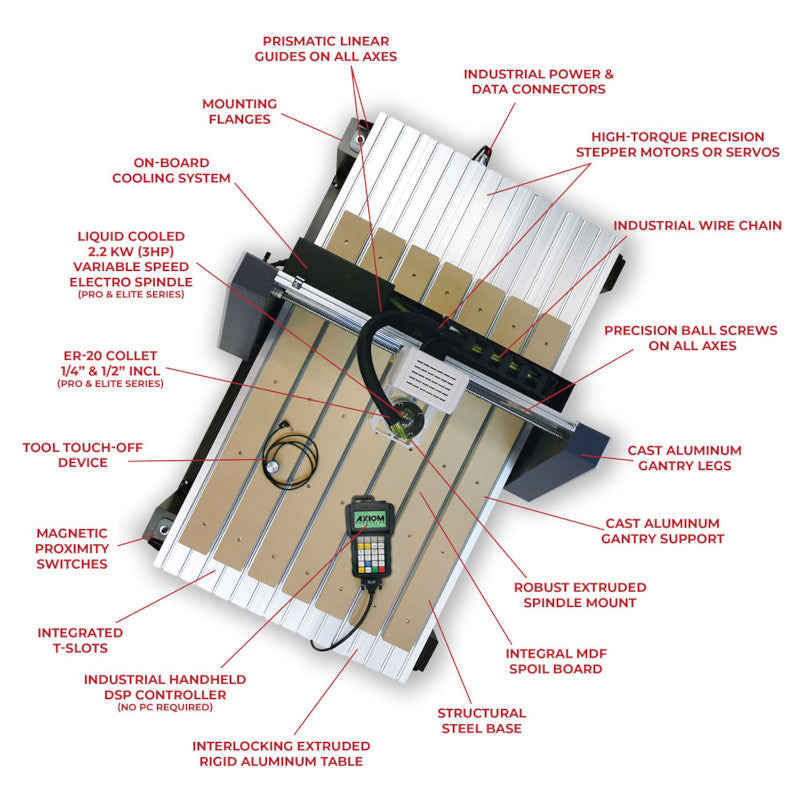

The Axiom AutoRoute PRO Series CNC routers also offer precision ball screws, prismatic guides, a robust steel frame, and interlocking aluminum table.

In addition, the integrated MDF spoil boards provide the exacting precision you need as they can easily be milled flat for a true perpendicular surface to the spindle.

Choose from three footprint options:

  • 24” x 24”
  • 24” x 36”
  • 24” x 48”

There is no need to attach your CNC router to your computer to operate it. Simply transfer your file to the handheld controller via USB storage device. The handheld RichAuto B18 controller is a powerful, lightweight and easy to use controller with over a decade of proven results in demanding applications.


X axis travel 24″ (610mm)
Y axis travel AR4 = 24.1″ (610mm)
AR6 = 35.82 (910mm)
AR8 = 47.63″ (1210mm)
Z axis travel 5.9″ (150mm)
C axis travel 360deg
Table work area AR4 = 28.4″ x 39″
AR6 = 28.4″ x 51″
AR8 = 28.4″ x 63″
Spindle Configuration ER20
Included Collets 1/4″ & 1/2″
Electro Spindle 2.2KW
Spindle speed 0~24000 RPM
Rapid shuttle speed 300 IPM (5 MPM)
Precision Linear Guideway X/Y/Z
Precision Ball Screw X/Y/Z
Ball Screw Diameter 16mm
Resolution +/- .00393″ (0.10mm)
Power requirements 220 V,50~60 Hz, 10A, 1-Phase
Working Table High rigidity Aluminum Extrusion
Gantry bridge High rigidity Aluminum Extrusion
Gantry Supports Aluminum alloy gravity cast
Gantry Clearance (from table) 6.5″ (165.1mm)
Gantry Clearance (from mdf spoil board) 5.5″ (139.7mm)
Machine Base All Welded Steel
Frame Machine Dimensions AR4 = 39.17″L x 37.36″W x 30.27″H
AR6 = 51.18″L x 37.36″W x 30.27″H
AR8 = 62.99″L x 37.36″W x 30.27″H
Shipping Dimensions AR4 = 42″L x 39″W x 33″H
AR6 = 53″L x 39″W x 33″H
AR8 = 65″L x 39″W x 33″H
Shipping Weight AR4 = 320 lbs
AR6 = 360 lbs
AR8 = 405 lbs
Tool Touch-Off Device Included
Onboard Cooling System Included
Controller Richauto B18 DSP 4-Axis Controller
CNC motion control system
USB port for easy file transfer.
Language Support English / Chinese
Product Manual View Product Manual
