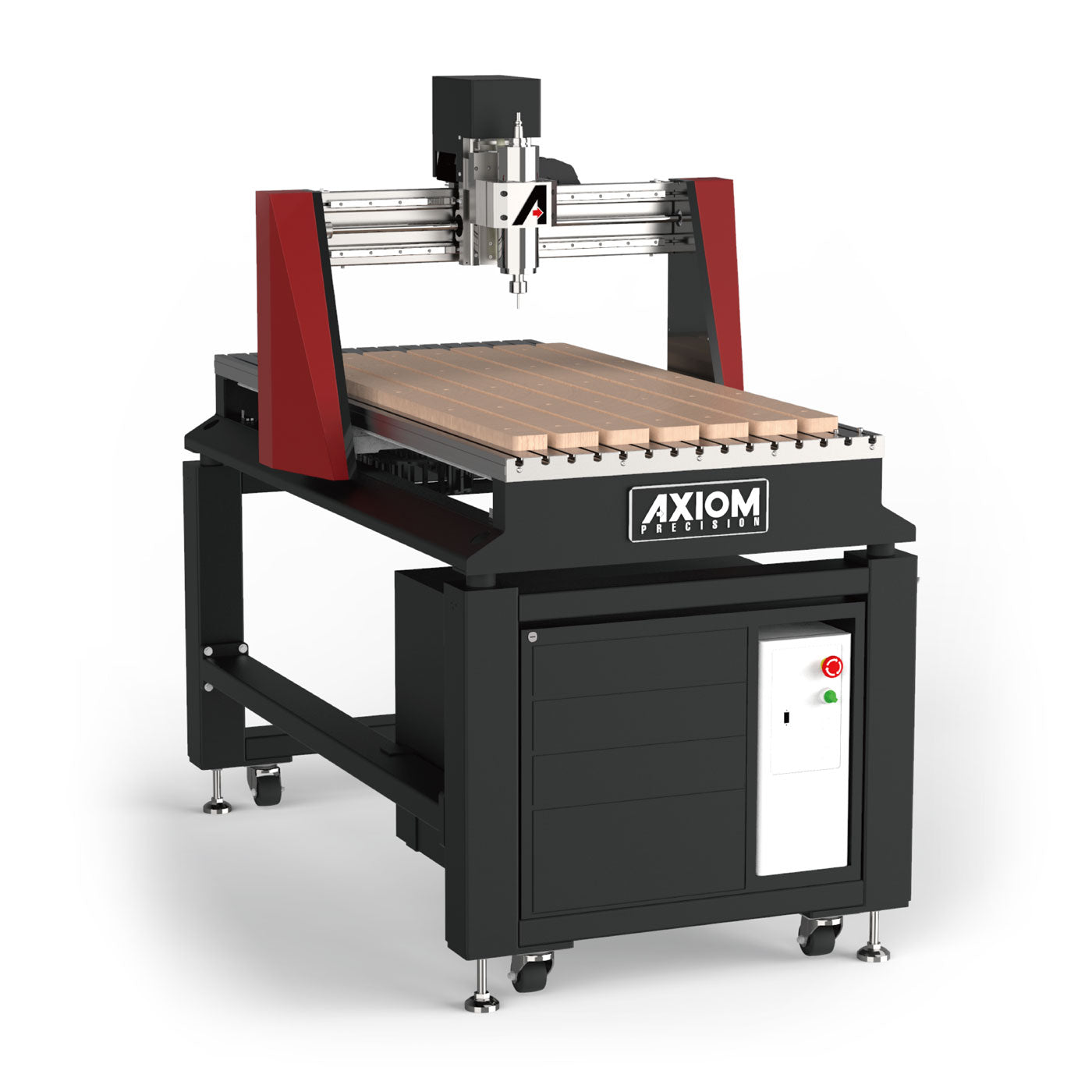

Axiom AR8 Elite - 24" x 48" Servo CNC Router

In stock
SKU: AXAR8Elite
Regular price $16,999.00

Item out of stock? - Call us and we'd be happy to reserve one for you when the next batch arrives!

Questions? - We are here to help!

Call us at 1-877-231-342

or local at 204-231-3429

These machines ship directly to your shop.  Shipping will be billed separately, please call 1-877-231-3429 or 204-231-3429 for a quick estimate.

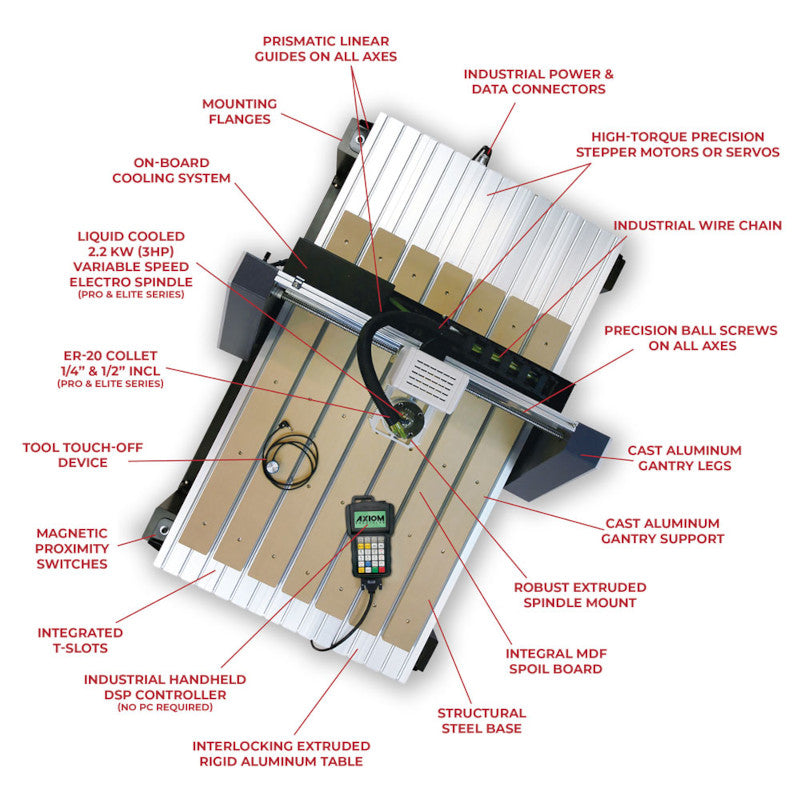

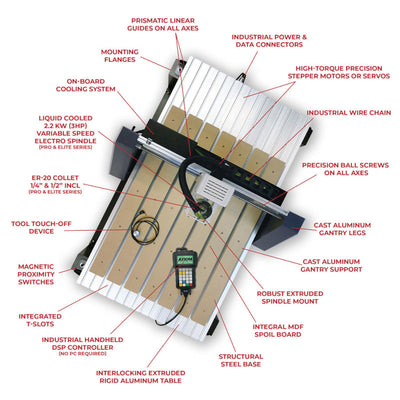

Axiom's Elite Series CNC routers have a full 8” Z travel capacity, and a quiet yet powerful 3HP electro-spindle with integrated liquid cooling system. All Elite Series routers utilize precision ball screws, massive prismatic guides, a robust steel frame, and interlocking aluminum table. In addition, the integrated MDF spoil boards promise you the all precision you need, since they can easily be milled flat for a true perpendicular surface to the spindle.

There is no need to attach your CNC router to your computer to operate it. Simply transfer your file to the controller via USB storage device. The hand-held RichAuto B58 DSP controller is powerful, easy to use, and 4th-axis ready.

Download Post Processors



X axis travel AR8: 24” (610mm)
AR16: 48″ (1210mm)
Y axis travel 48″ (1210mm)
Z axis travel 7.48” (190mm)
Table work area AR8: 28.4”W x 63”L
AR16: 51.18”W x 69.29”L
Spindle Configuration ER20
Included Collets 1/4″ & 1/2″
Electro Spindle 2.2KW (3HP)
Spindle speed 0~24000 RPM
Rapid feed rate 320 IPM (8 MPM)
Precision Linear Guideway X/Y/Z
Precision Ball Screw X/Y/Z
Ball Screw Diameter AR8: X=16mm, Y=16mm, Z=16mm
AR16: X=20mm , Y=25mm , Z=16mm
Resolution +/-.00197” (0.05mm)
Power Requirements 10A (AR8)/15A (AR16), 220V, 1PH, 50~60Hz
Working Table High rigidity Aluminum Extrusion
Gantry bridge High rigidity Aluminum Extrusion
Gantry Supports Aluminum alloy gravity cast
Max Gantry Clearance 9.25″ (234.95mm)
Gantry Clearance Above Spoil Brds 8.25″ (209.55mm)
Machine Base All Welded Steel Frame
Machine Shipping Dimensions AR8: 66″L x 40″W x 47″H
AR16: 75.5″L x 72″W x 67″H
Machine Shipping Weight AR8: 764
AR16: 1347 lbs
Tool Touch-Off Device Included
Onboard Cooling System Included
Controller RichAuto B58 Industrial 4-Axis CNC Controller
DSP CNC motion control system
USB port for easy file transfer.
Language Support English / Chinese
Product Manual View Product Manual
