The Axiom ABS-303 Carving Bit Set provides everything you need to produce clean, highly detailed 3D carvings. The 1/4” radius core box bit is ideal for quickly removing large amounts of material during roughing applications. The 1/16” tapered ball nose bit can produce a glass-smooth surface yet offers crisp, highly-detailed detail reproduction of complex 3D models.

*Vcarve and Aspire users* The purchase of this Axiom router bit set includes a free download of the tooling geometry and simple instructions which allow you to easily import your new bits directly into your Vectric tooling database.

Tool File Download

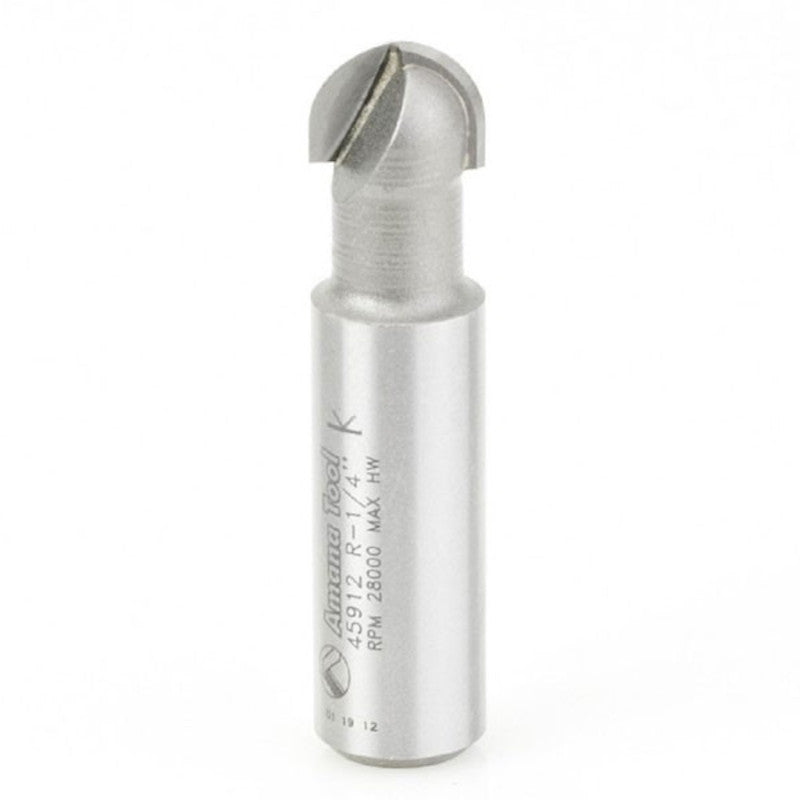

Carbide Tipped Core Box 1/4″ Radius x 1/2″ Dia x 3/8″ x 1/2″ Shank:

(D) Diameter 1/2 (R) Radius 1/4 (B) Cutting Height 3/8 (d) Shank 1/2 Overall Length (L) 2-1/8 Flutes 2

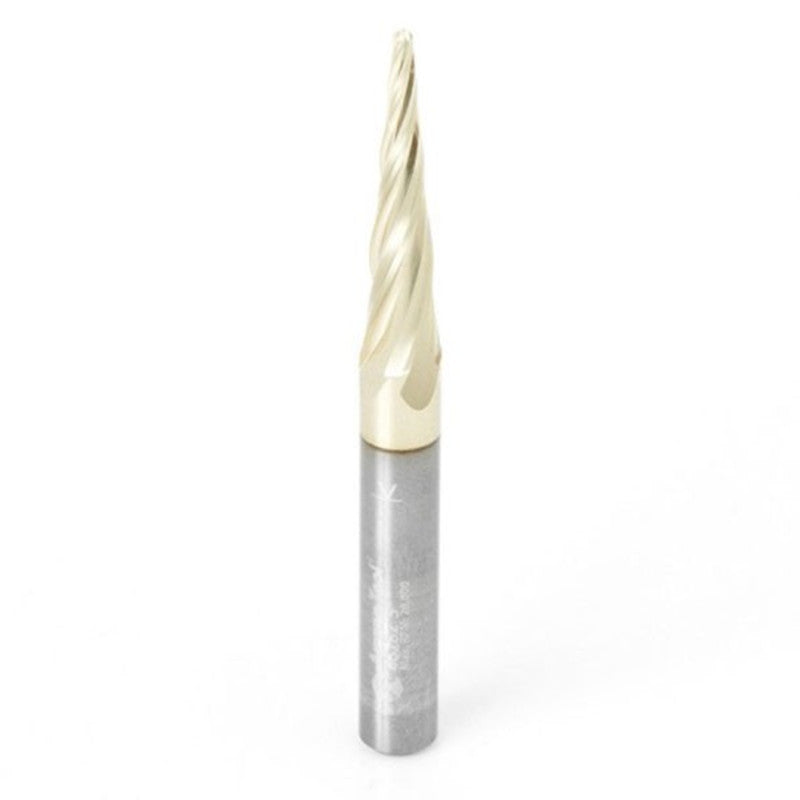

Solid Carbide Up-Cut Spiral ZrN Coated 5.4 Deg Tapered Angle Ball Tip 1/16 Dia x 1/32 Radius x 1 x 1/4 Shank:

(D) Diameter 1/16 (R) Radius 1/32 (a°) Angle 5.4 (B) Cutting Height 1 (d) Shank 1/4 Overall Length (L) 3 Flutes 4
