Axiom – AR Series Bit Set (9pc) w/ Spektra Coating by Amana Tool
Couldn't load pickup availability
Item out of stock? - Call us and we'd be happy to reserve one for you when the next batch arrives!
Questions? - We are here to help!
Call us at 1-877-231-342
or local at 204-231-3429

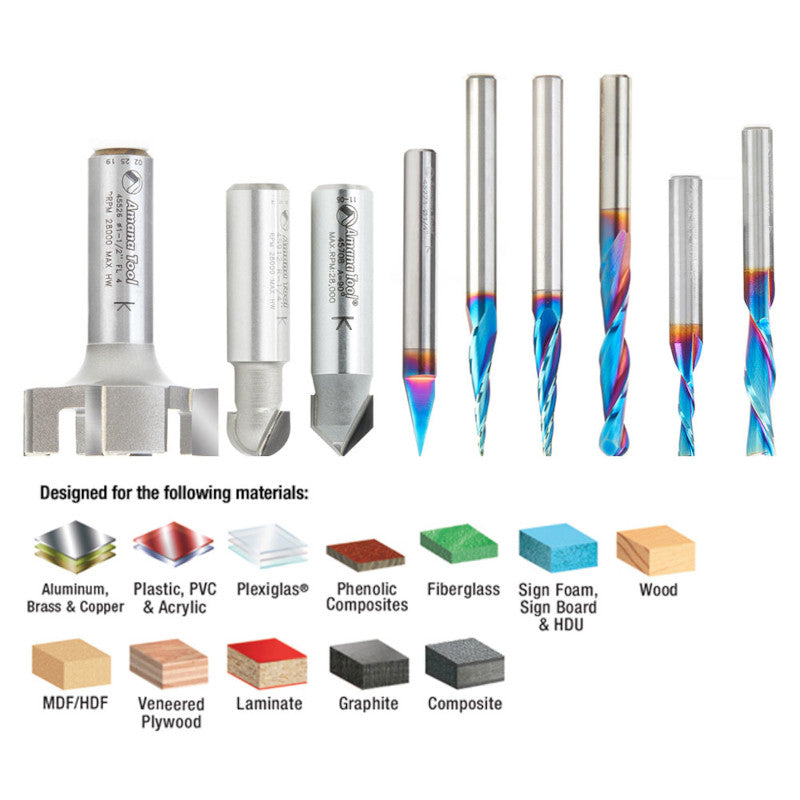

The ABS900 9pc bit set is for the most demanding signmaking, lettering and engraving. Designed for creating signs and other CNC projects in a variety of materials. Each router bit is manufactured from Amana’s exclusive grade carbide according to stringent quality standards.
*VCarve and Aspire users* The purchase of this Axiom router bit set includes a free download of the tooling geometry and simple instructions which allow you to easily import your new bits directly into your Vectric tooling database.

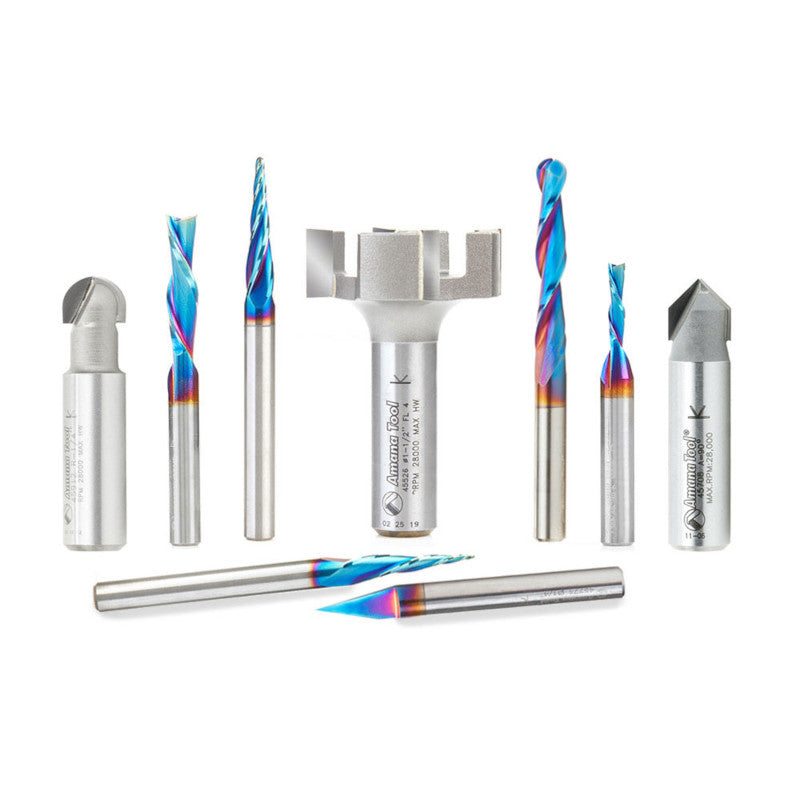

Included:
|

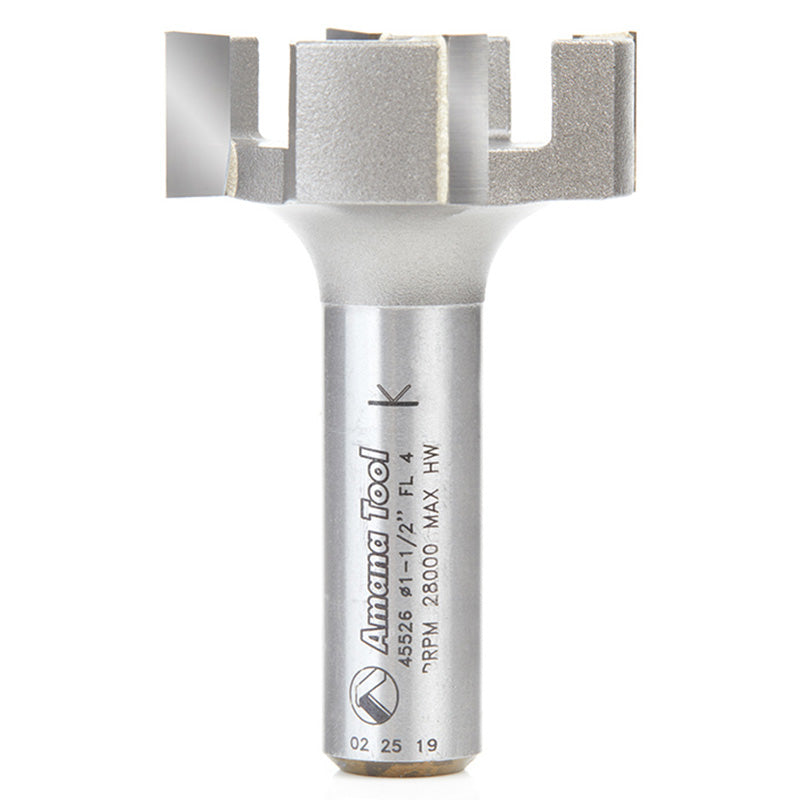

Carbide Tipped Bottom Cleaning / Spoilboard: 1-1/2 Dia x 1/2 x 1/2 Inch Shank Upshear Design 4 Fute |
|

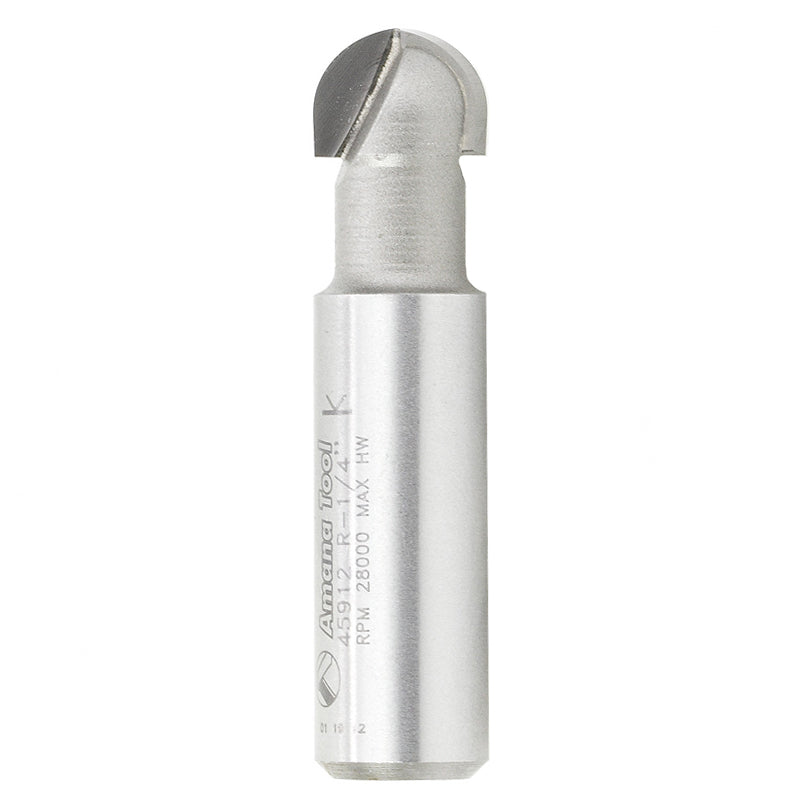

Carbide Tipped Core Box 1/4 Radius x 1/2 Dia x 3/8 x 1/2 Inch Shank |
|

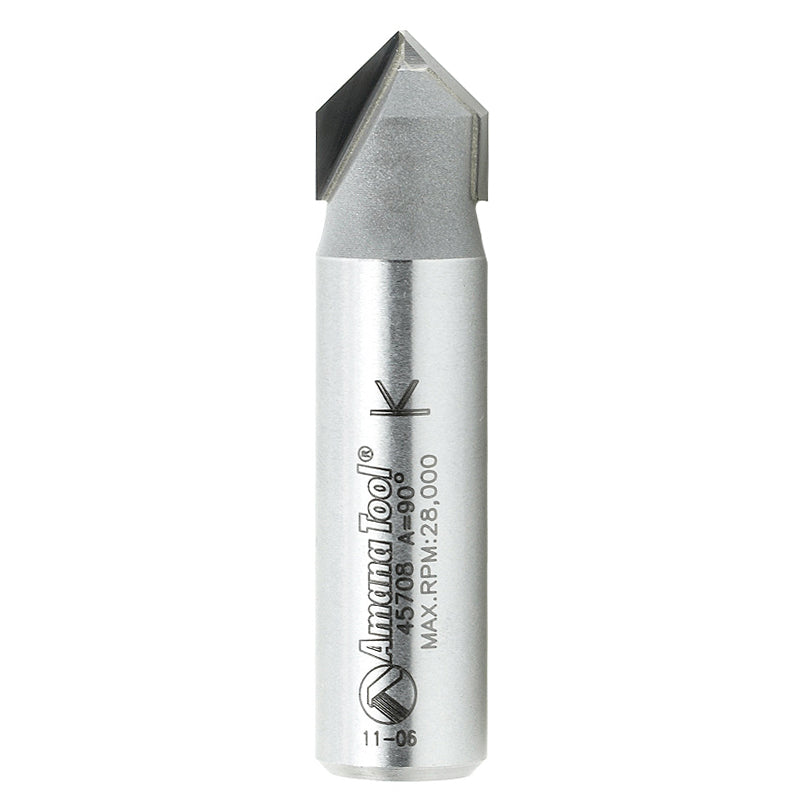

Carbide Tipped V Groove 90 Deg x 1/2 Dia x 1/2 x 1/2 Inch Shank |
|
Solid Carbide Carving/Engraving Fine Line Engraving – Spektra Coated * 30 Deg 0.005 Tip Width x 1/4 Inch Shank x 2 1/4 Length |
|
Solid Carbide Tapered Ball Nose – Spektra Coated * 6.2 Deg Tapered Angle Ball Tip 1/64 Dia x 1/32 Radius x 1 x 1/4 Shank x 3 Inch Long Solid Carbide Spiral |
|
Solid Carbide Tapered Ball Nose – Spektra Coated * 5.4 Deg Tapered Angle Ball Tip 1/16 Dia x 1/32 Radius x 1 x 1/4 Shank x 3 Inch Long Solid Carbide Spiral |
|
Straight Ball Nose Solid Carbide – Spiral Spektra Coated * 0.10 Deg Tapered Angle Ball Tip 1/4 Dia x 1/8 Radius x 1-1/2 x 1/4 Shank x 3 Inch Long x 2 Flute Solid Carbide |
|
Solid Carbide Spiral Flute Plunge – Spektra Coated * 1/8 Dia x 1/2 x 1/4 Inch Shank |
|
Solid Carbide Spiral Plunge – Spektra Coated * 1/4 Dia x 1 Inch x 1/4 Shank Down-Cut |
* Axiom's Spektra™ bits feature a nACo® nanocomposite coating with an extreme nanohardness and heat resistance. With a brilliant distinctively-tinted coloring nACo provides additional improvements in four critical aspects of router tooling.

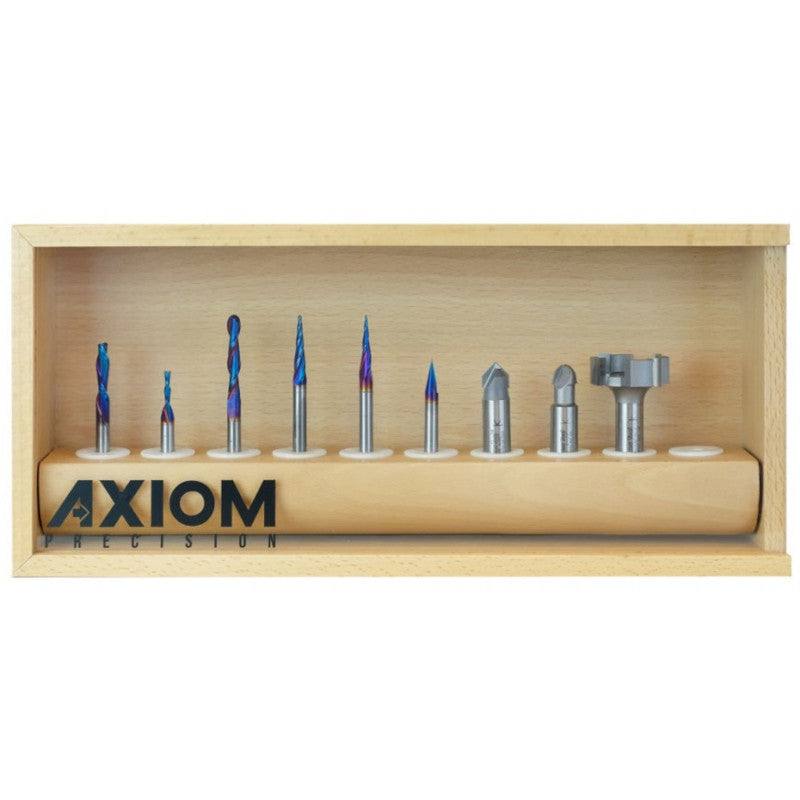

Stored in a solid wood showcase storage box with a Plexiglas® clear lid.
Wood Storage Box Dimensions: 13 7/16″ L x 6″ W x 2 3/4″ H
