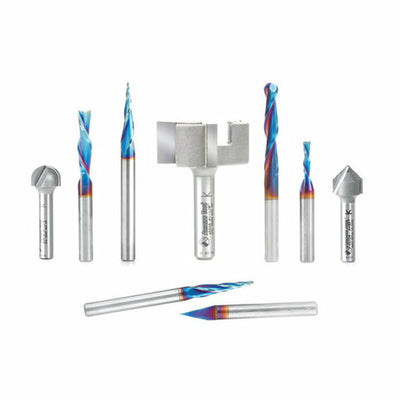

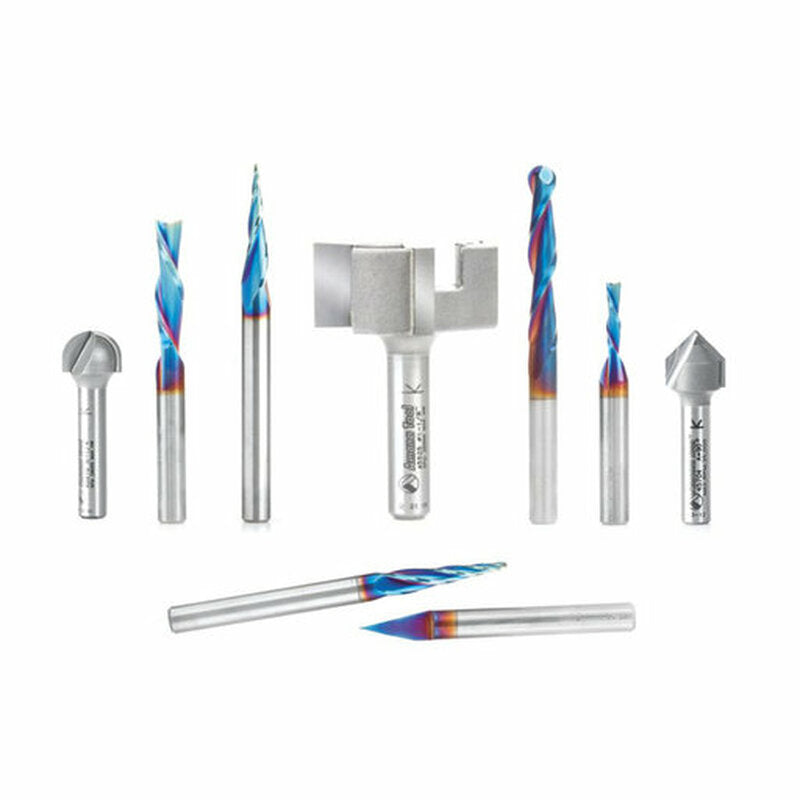

Axiom CNC Bit Set (9pc) by Amana Tool Iconic (1/4")

  • Sale
  • Regular price $559.00
Shipping calculated at checkout.


The ABS901 9pc bit set is for the most demanding signmaking, lettering and engraving. Designed for creating signs and other CNC projects in a variety of materials. Each router bit is manufactured from Amana's exclusive grade carbide according to stringent quality standards.

*VCarve and Aspire users* The purchase of this Axiom router bit set includes a free download of the tooling geometry and simple instructions which allow you to easily import your new bits directly into your Vectric tooling database.
Included:

Carbide Tipped Bottom Cleaning / Spoilboard: 1-1/8 Dia x 1/2 x 1/4 Inch Shank Upshear Design 3 Fute

Carbide Tipped Core Box: 1/4 Radius x 1/2 Dia x 3/8 x 1/4 Inch Shank

Carbide Tipped V Groove: 90 Deg x 1/2 Dia x 1/2 x 1/4 Inch Shank

Solid Carbide Carving/Engraving Fine Line Engraving - Spektra Coated: 30 Deg 0.005 Tip Width x 1/4 Inch Shank x 2 1/4 Length

Solid Carbide Tapered Ball Nose - Spektra Coated: 6.2 Deg Tapered Angle Ball Tip 1/64 Dia x 1/32 Radius x 1 x 1/4 Shank x 3 Inch Long
Solid Carbide Spiral

Solid Carbide Tapered Ball Nose - Spektra Coated: 5.4 Deg Tapered Angle Ball Tip 1/16 Dia x 1/32 Radius x 1 x 1/4 Shank x 3 Inch Long Solid Carbide Spiral

Straight Ball Nose Solid Carbide - Spiral Spektra Coated: 0.10 Deg Tapered Angle Ball Tip 1/4 Dia x 1/8 Radius x 1-1/2 x 1/4 Shank x 3 Inch Long x 2 Flute Solid Carbide

Solid Carbide Spiral Flute Plunge - Spektra Coated: 1/8 Dia x 1/2 x 1/4 Inch Shank

Solid Carbide Spiral Plunge - Spektra Coated: 1/4 Dia x 1 Inch x 1/4 Shank Down-Cut

* Our Spektra bits feature a nACo nanocomposite coating with an extreme nanohardness and heat resistance. With a brilliant distinctively-tinted coloring nACo provides additional improvements in four critical aspects of router tooling.

Stored in a solid wood showcase storage box with a Plexiglas clear lid.

Wood Storage Box Dimensions: 13 7/16" L x 6" W x 2 3/4" H
