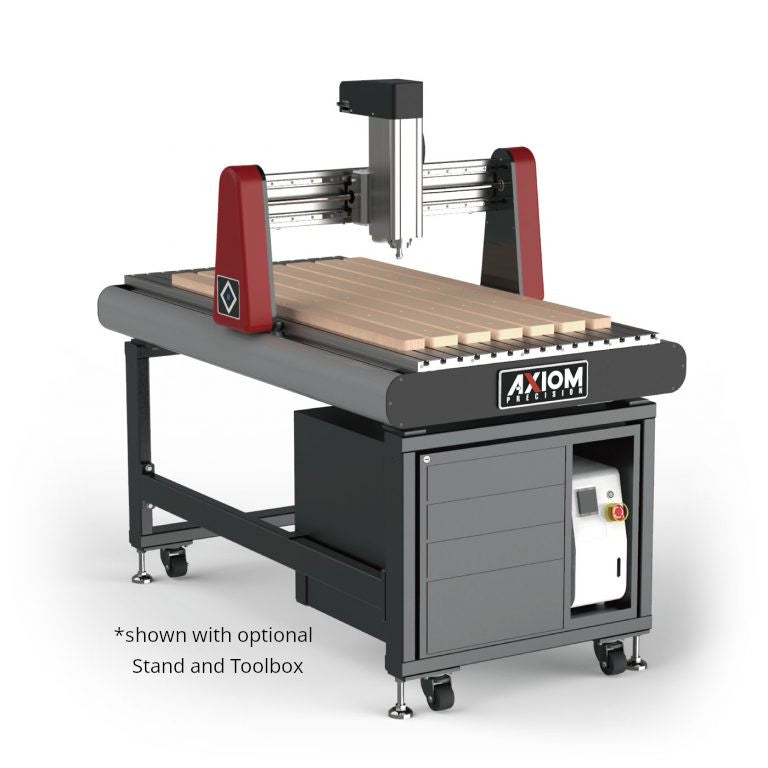

Axiom Iconic 24" x 48" CNC Router

In stock
SKU: AXIconic8
Regular price $8,499.00

Item out of stock? - Call us and we'd be happy to reserve one for you when the next batch arrives!

Questions? - We are here to help!

Call us at 1-877-231-342

or local at 204-231-3429

Rarely does the least expensive solution possess best-in-class features. That changes with the launch of Axiom's new Iconic CNC machining center. The best technology and components have been selected to build what will surely be the new king of the entry-level CNC market.

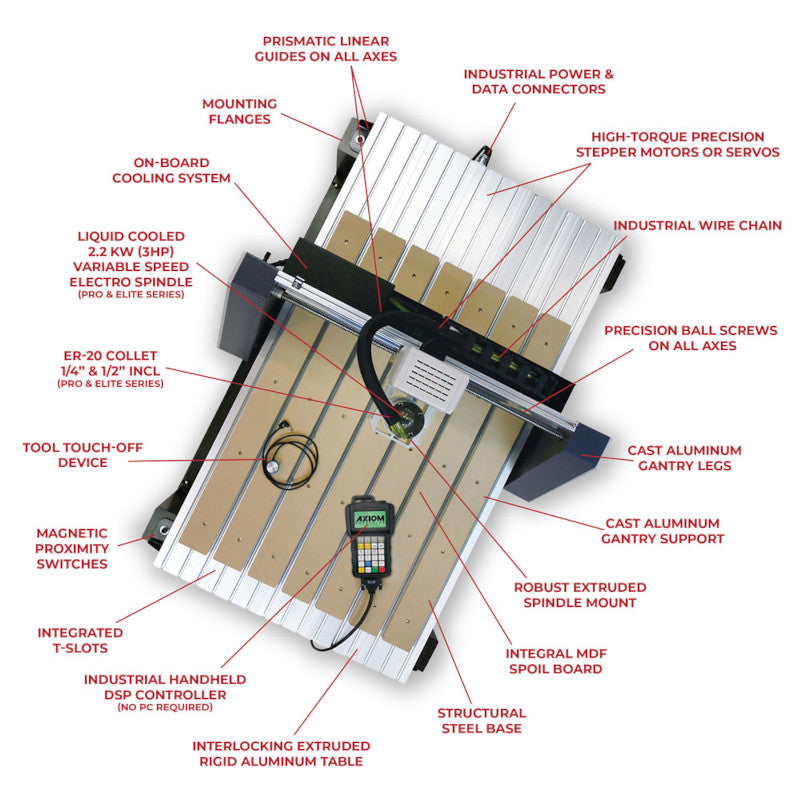

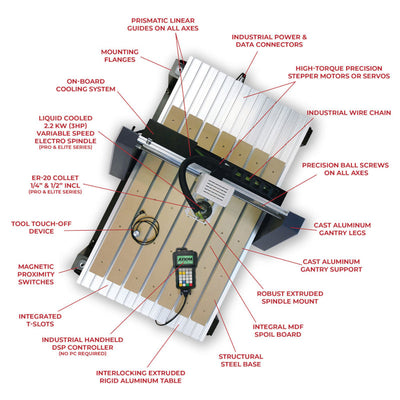

The new Iconic CNC series includes three sizes, each with prismatic guides, ball screws, and the same powerful, yet easy to use, DSP pendant controller which we utilize on our larger machines. We also provide a full complement of accessories ensuring that you'll receive a package that's specifically tailored to your CNC needs.

Targeted specifically at the first-time CNC user, the new Iconic lineup will be supported with a comprehensive manual and video library which are intended to dramatically shorten a new user's learning curve.

X axis travel 23.81″ (605mm)
Y axis travel Iconic-4 = 24.01″ (610mm)
Iconic-6 = 35.82″ (910mm)
iconic-8 = 47.63″ (1210mm)
Z axis travel 3.937″ (100mm)
Table work area Iconic-4 = 28.4″ x 37″
Iconic-6 = 28.4″ x 49″
Iconic-8 = 28.4″ x 61″
Electro Spindle 800W (1HP)
Includes Collets 1/4″ & 1/8″
Spindle speed 0-24,000 RPM
Rapid feed rate 150 IPM (3.81 MPM)
Precision Linear Guideway X/Y/Z
Precision Ball Screw X/Y/Z
Ball Screw Diameter 16mm
Resolution +/- .00589″ (0.15mm)
Power requirements 115V, 50~60Hz, 13A, 1-Phase (Canada 230V, 7A)
Working Table High rigidity Aluminum Extrusion
Gantry bridge High rigidity Aluminum Extrusion
Gantry Supports Aluminum billet machined
Max Gantry Clearance 5 1/2″ (139.0mm)
Gantry Clearance Above Spoil Brds 4 1/2″ (114.3mm)
Machine Base All Welded Steel Frame
Machine Dimensions Iconic-4 = 38″L x 35″W x 28″H
Iconic-6 = 50″L x 35″W x 28″H
Iconic-8 = 62″L x 35″W x 28″H
Shipping Dimensions Iconic-4 = 40″ x 38″ x 21″
Iconic-6 = 55″ x 38″ x 21″
iconic-8 = 65″ x 38″ x 21″
Machine Weight Iconic-4 = 176 lbs
Iconic-6 = 209 lbs
Iconic-8 = 242 lbs
Tool Touch Off Included
Controller RichAuto B11 DSP
CNC motion control system
USB port for easy file transfer.
(NO PC REQUIRED)



View Product Manual
