Axiom – Inlay Bit Set (3pc) by Amana Tool

In stock
SKU: AXABS207
Regular price $99.00

Questions? - We are here to help!

Call us at 1-877-231-342

or local at 204-231-3429

The Axiom ABS207 Inlay Bit Set with 1/4″ shank is designed for straight and V-Carve inlays and perfect for small decorative inlay work. This inlay set is compatible with every machine we build.

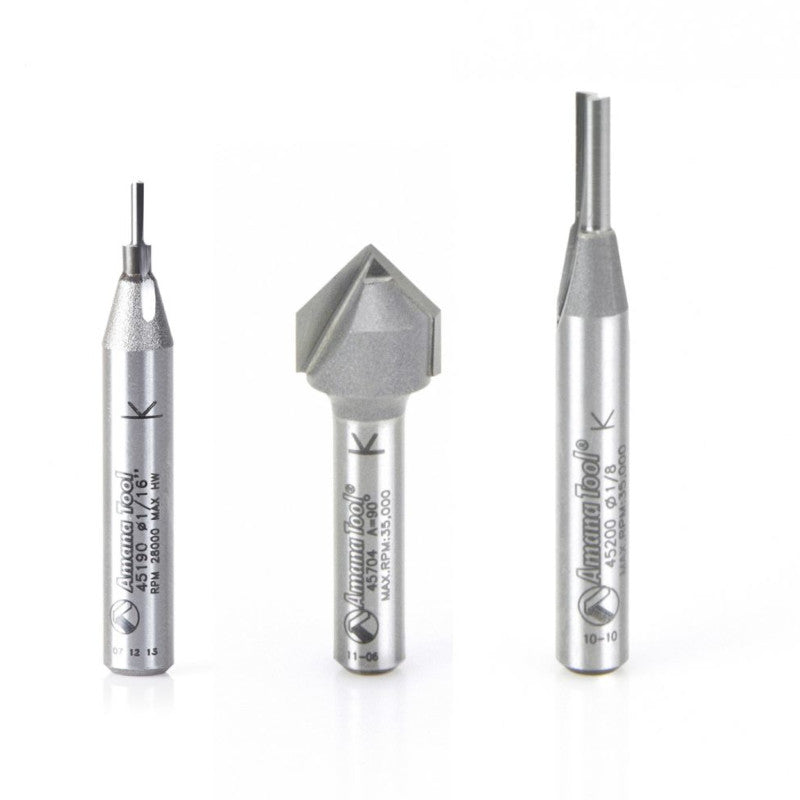

The 1/16” diameter straight plunge bit is essential for tight detailed corners and small recesses for straight inlays. The 1/8” straight plunge bit is ideal for creating pockets and removing waste materials. The 1/2″ 90° V-Groove bit is used for V-Carving inlay machining.

Solid Carbide Cutting Edge 1/16″ Dia x 1/4″ Shank #45200:


(D) Diameter 1/8
(B) Cutting Height 7/16
(d) Shank 1/4
Overall Length (L) 2
Flutes 2




Solid Carbide Cutting Edge 1/8″ Dia x 1/4″ Shank #45190:


(D) Diameter 1/16
(B) Cutting Height 3/16
(d) Shank 1/4
Overall Length (L) 1-5/8
Flutes 2






Carbide Tipped 90° V-Groove 1/2″ Dia x 1/4″ Shank #45704:


(D) Diameter 1/2
(B) Cutting Height 1/2
(d) Shank 1/4
Overall Length (L) 1-5/8
Flutes 2
