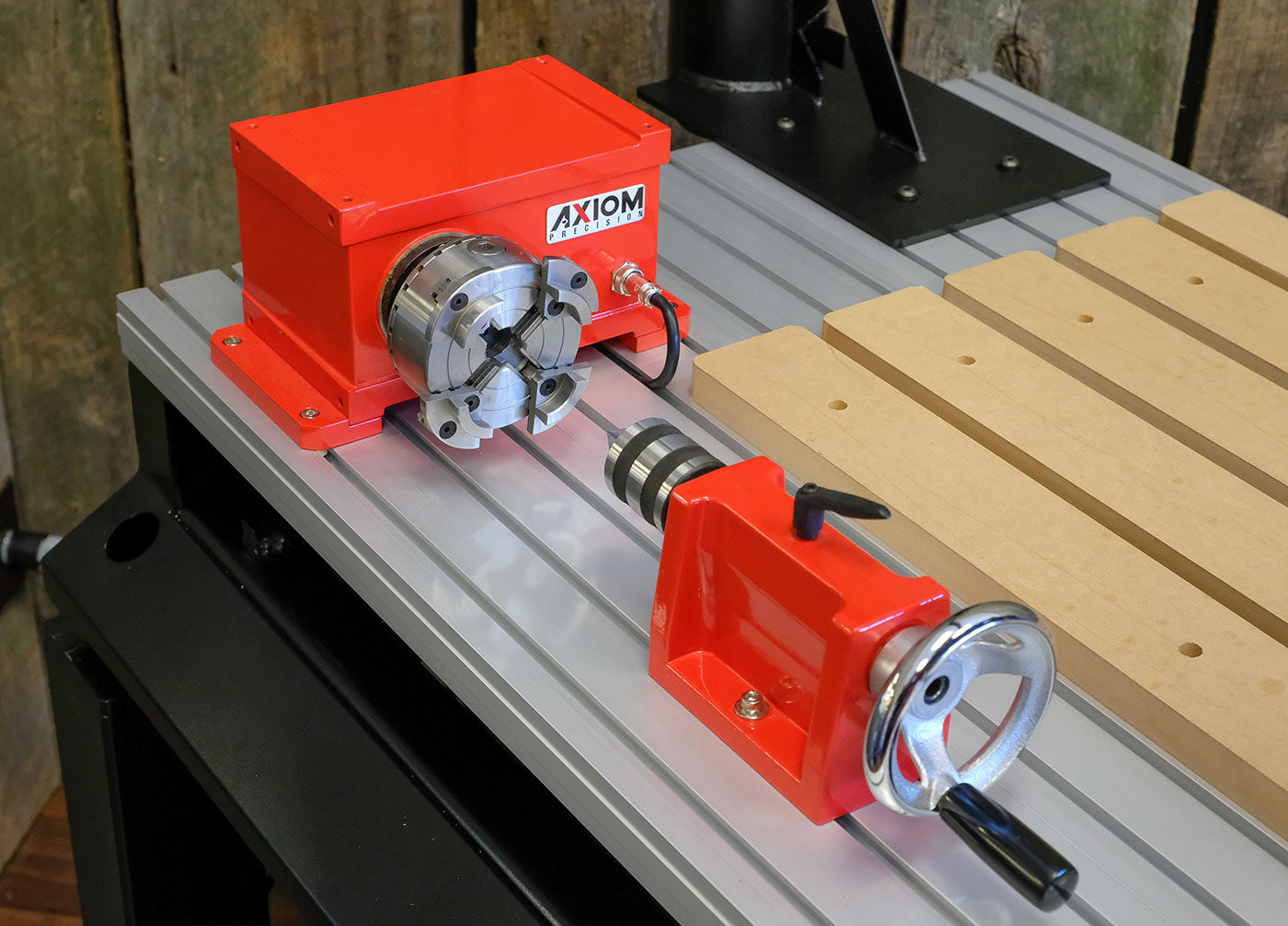

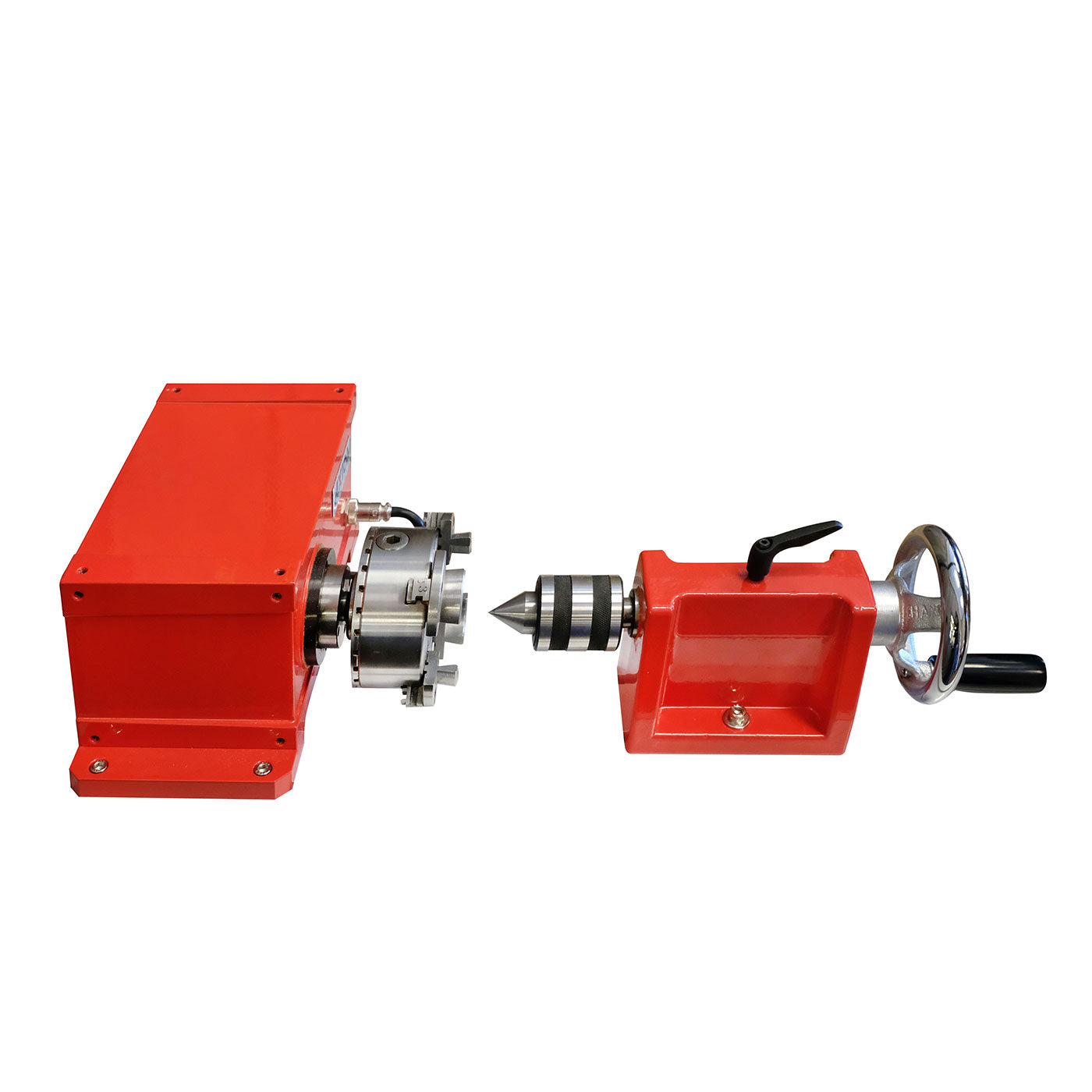

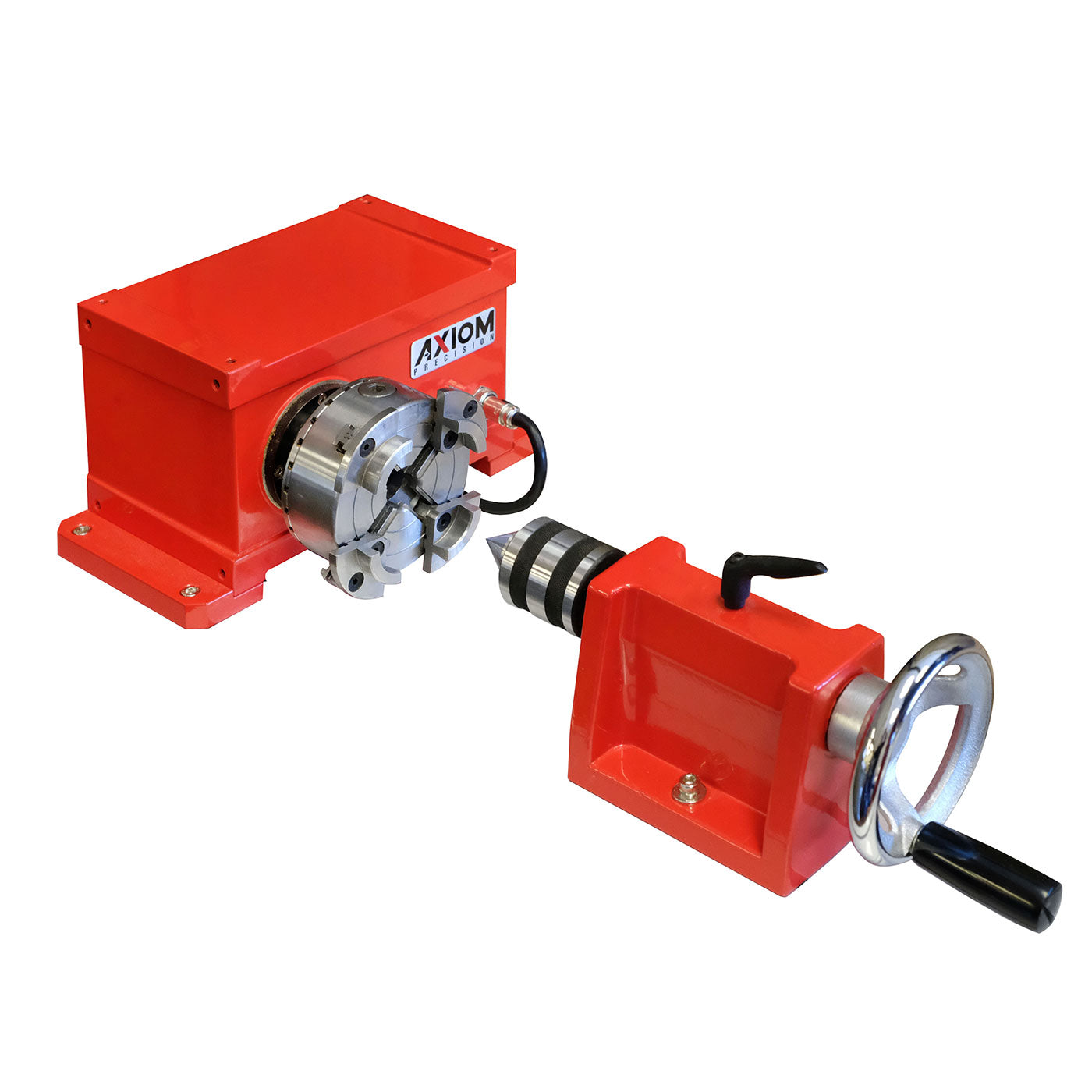

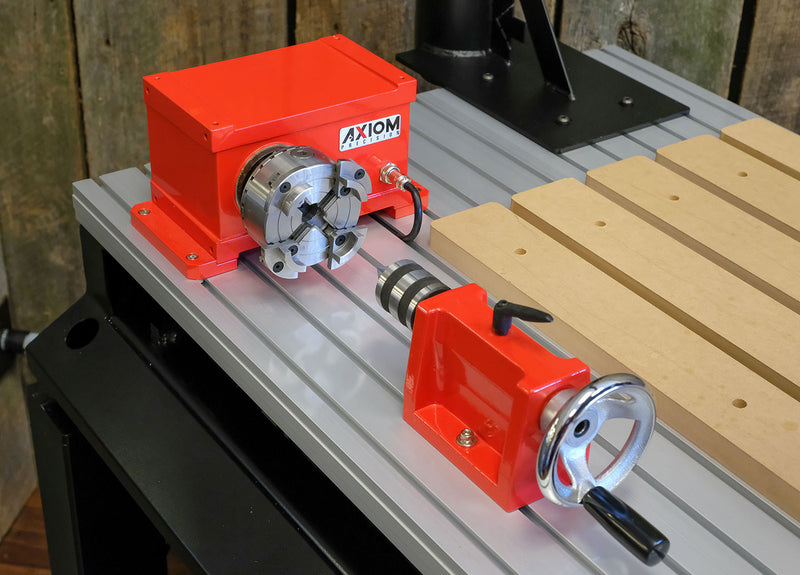

Axiom – Rotary Kit (Pro & Elite)
Regular price
$1,599.00
Couldn't load pickup availability
Questions? - We are here to help!
Call us at 1-877-231-342
or local at 204-231-3429

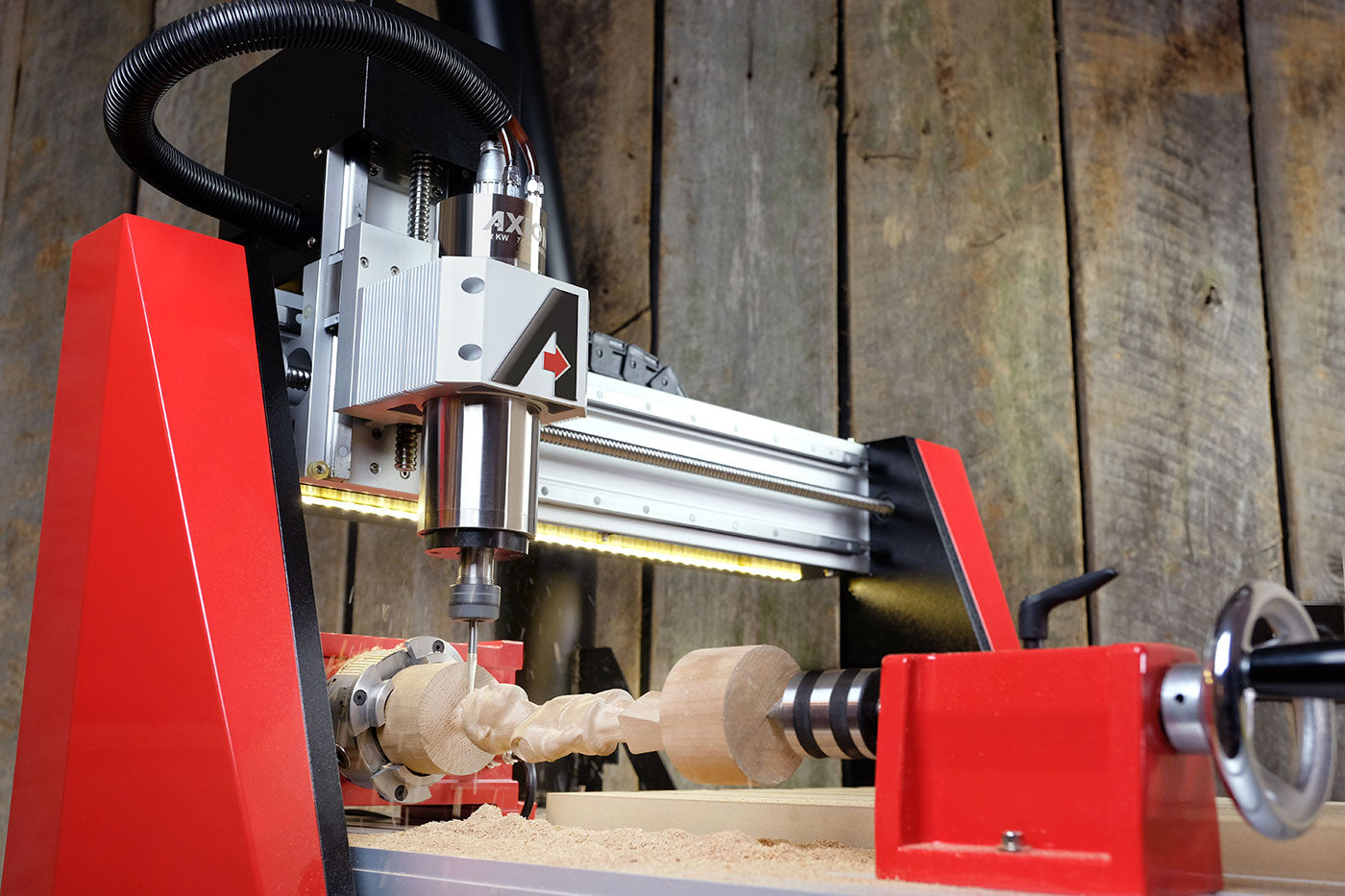

This turning accessory can be used with any 4-axis ready Pro or Elite Series machine, and will allow machining on cylindrical objects. The current release of Vcarve includes a ‘profile wrapping’ function, so no additional software is required to begin creating amazing 3-dimensional work.
-
| Chuck capacity | 80mm (3.14″) |
| Chuck diameter | 100mm (3.93″) |
| Diameter of center through hole | 13mm (.5″) |
| Center height | 75mm (2.95″) |
| Min. increment | 0.0023deg |
| Overall height | 140mm (5.51″) |
| Motor | Stepper |
| Tailstock with live center | Yes |
| 4-Jaw chuck (1″ 8TPI) | Yes |
| Center taper | MT#2 |
| Product Manual | View Product Manual |
