CMT Orange - Dowel Drill Bit / Quick Coupling Drill Bit - 310.080.12
Regular price
$17.50
Couldn't load pickup availability
Item out of stock? - Call us and we'd be happy to reserve one for you when the next batch arrives!
Questions? - We are here to help!
Call us at 1-877-231-342
or local at 204-231-3429

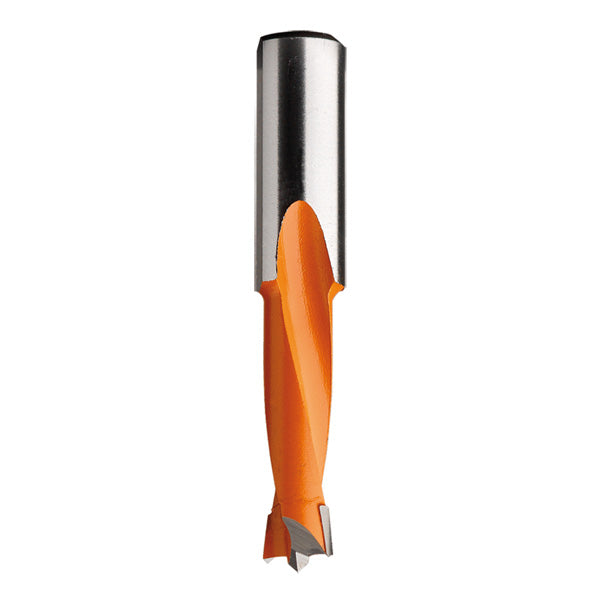

Dowel Drill Bit - 310.080.12
TECHNICAL FEATURES:
• Made with special high strength steel.
• Made with special high strength steel.
• Black and orange P.T.F.E fluorocarbon resin coating.

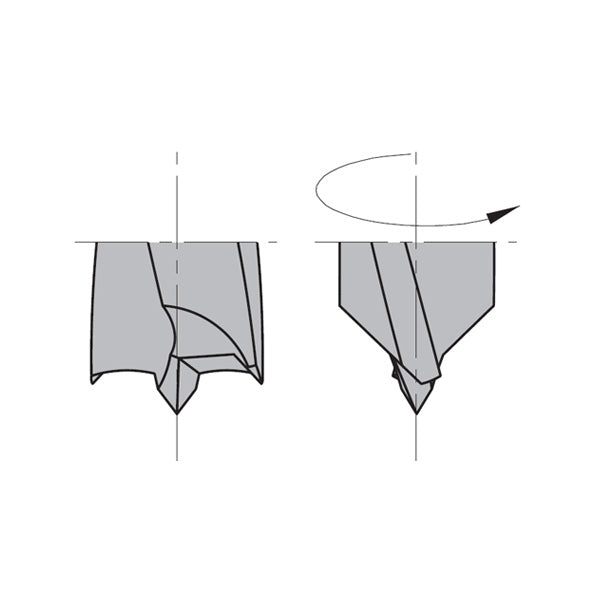

• Cusp in HWM.
• Centering tip.
• 2 cutting edges (Z2).
• 2 engravers with negative sharpening (Z2).
• 4 helical grooves.
• Connection with fixing plane and screw for axial adjustment.
For blind holes on solid wood and its derivatives, whether or not laminated. To be inserted on spindles or adapters in drilling machines.
HW - refers to Welded Carbide
RH = Clockwise
LH = Counter Clockwise
|

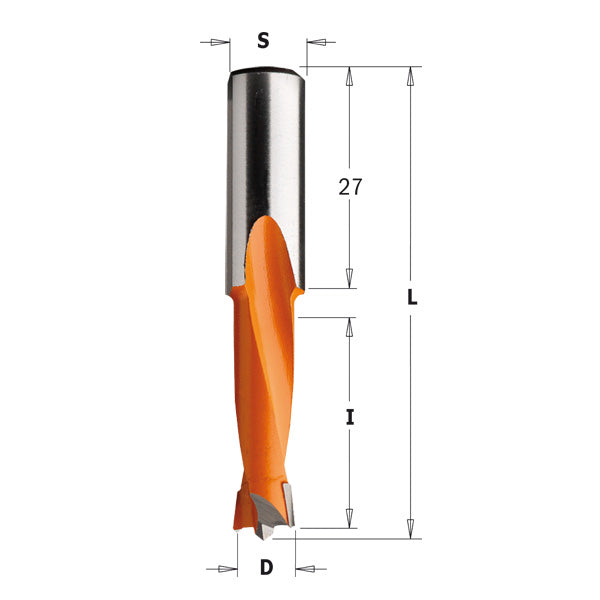

Item #
|
D
|
I
|
L
|
S | Z | Material | RH/LH |
|
310.080.12
|
8
|
27
|
57.5
|
10x27 | 2 | HW | LH |
