TECHNICAL CHARACTERISTICS OF CMT'S 663 CUTTER:
- Made of special high-strength steel

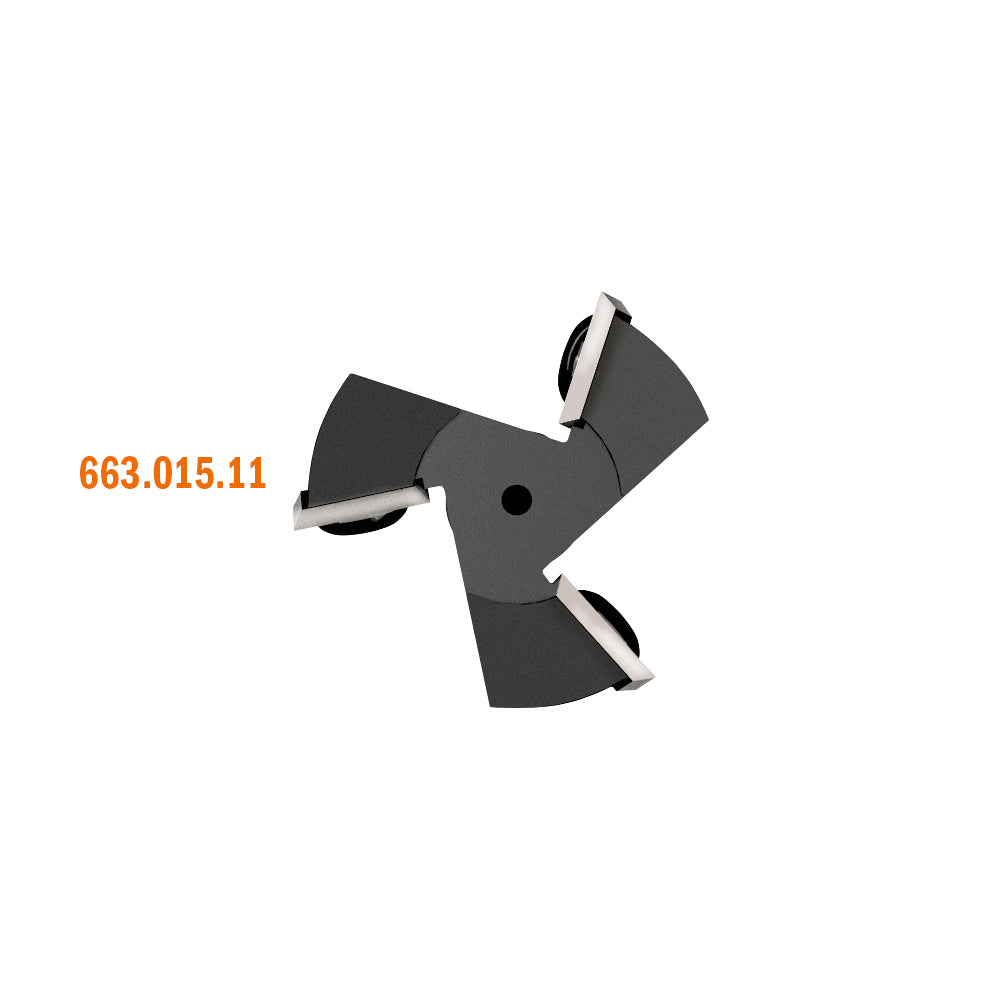

New CNC pantograph milling cutter, ideal for fast removal of material on large surfaces with good finish on the bottom of the cut. To be used with hard and soft woods, chipboard and MDF. The cutter uses 4-edge HWM reversible knives. Cost-effective compared to brazed solid cutters and solid carbide helical milling cutters.
HW = Welded Carbide
RH = Clockwise
LH = Counter Clockwise
| Item # | D | I | L | Z | S | Mat | RH/LH |
| 663.014.11 | 60 | 12 | 80 | 3 | 12.7 | HW | RH |
| 663.015.11 | 38.1 | 12 | 60 | 3 | 12.7 | HW | RH |
