Laguna Tools - F3 Fusion Tablesaw - 52 Inch
Couldn't load pickup availability
Item out of stock? - Call us and we'd be happy to reserve one for you when the next batch arrives!
Questions? - We are here to help!
Call us at 1-877-231-342
or local at 204-231-3429
The new Laguna Fusion line was developed for demanding woodworkers. Designed around quality components with an emphasis on superior dust collection enhanced by utilizing over/under collection & sealed bottoms.

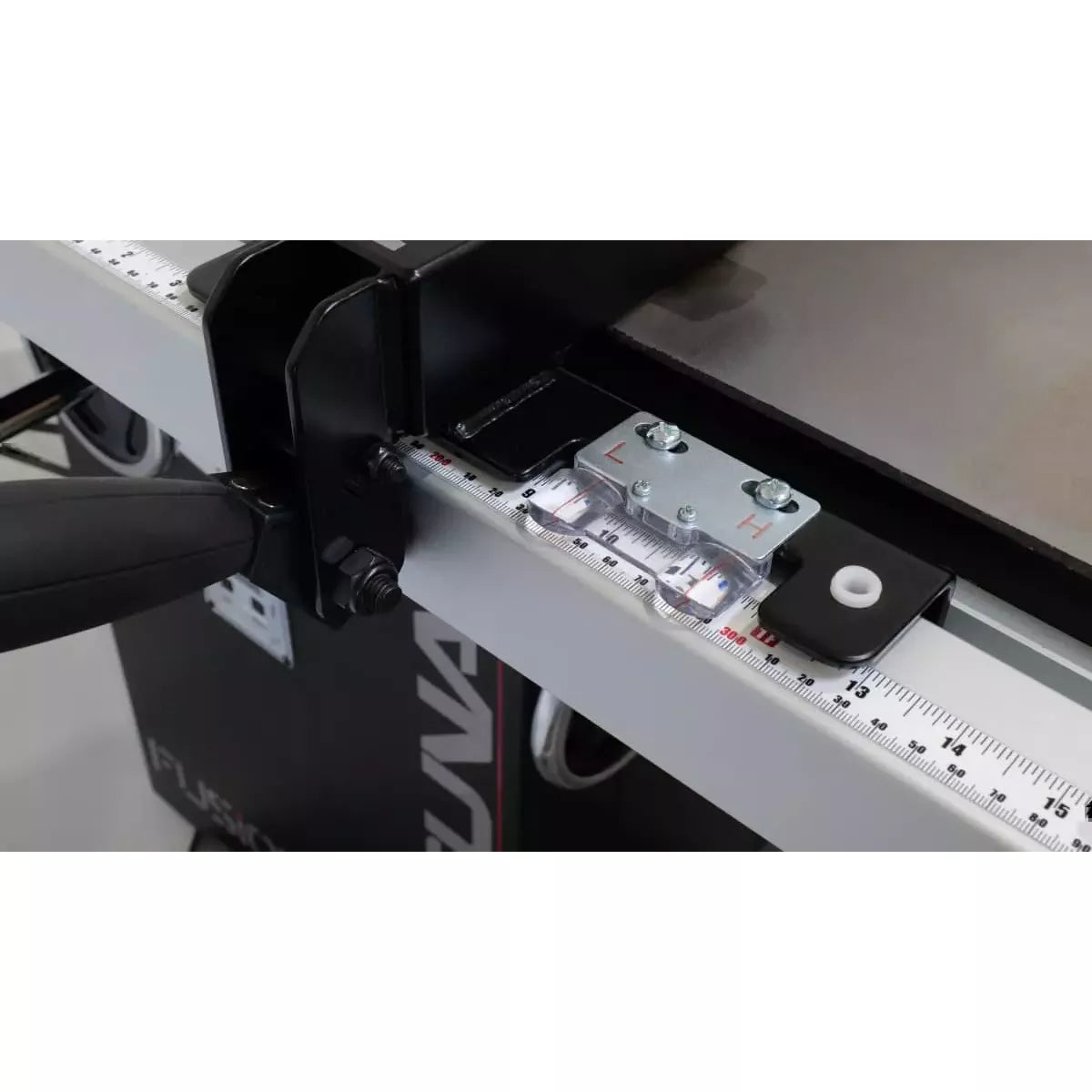

All models are equipped with a precision fence, plus the F2 & F3 feature the Hi/Low aluminum extrusion known from European saws. The hybrid fence on the Laguna Fusion offers the best of European and American fence features. This fence is NOT designed to be used on the LEFT side of the blade! Rail or tube on the LEFT side is provided only to make the ON/OFF switch position. Permanently lubricated bearings & Acme screws are part of the internal DNA. Fusion 3 is the true successor to the original Fusion Table Saw. The task was simple: make a saw that was more refined, more precise, and cleaner.
- 52ā³ Rip Capacity
- 3HP TEFC Motor
- 220V, Single-Phase, 60Hz Power Requirement
- Fusion Dust Collection System
- Industrial Cabinet, Fence & Trunnions
- Included Tools, Tables & Integrated Tool Storage
F3 52ā³ Features
- 52ā³ Rip Capacity
- Industrial 14 Gauge Cabinet
- Accessory Tables (Outfeed & Rip)
- Industrial Fence Rail
- Industrial Fusion Fence
- Premium Electrical & Hardware Components
- Premium Miter Gauge
- Cast Iron Fusion Trunnions
- Cabinet Mounted Arbor
- Cast Iron Table & Wings
- European Hi-Lo Fence
- Premium Zero Clearance Throat Plate
- Fusion Hi-Lo Dust Collection
- Maginetic Contractor Switch
- Quick-Release Blade Guard & Spreader
- Riving Knife Included
- Push Stick Included
- Miter Gauge Included
- Blade Changing Tool Included
- 10 x 40T Carbide-Tipped Blade Included
- Premium Arbor & Motor Bearing
- Mobility Built Into Cabinet
Additional Specs
Dust Port Size:Ā 4ā³
Blade Guard Dust Port Size:Ā 1-Ā½ā³
Table Saw Type:Ā Cabinet
Maximum Blade Diameter:Ā 10ā³
Arbor Size:Ā ā ā³
Arbor Speed:Ā 4500 RPM
Maximum Width Of Dado:Ā Ā¾ā³
Blade Tilt Direction:Ā Left
Max Blade Tilt:Ā 45Ā°
Maximum Depth Of Cut At 90Ā°:Ā 3-ā ā³
Maximum Depth Of Cut At 45Ā°:Ā 2-ā ā³
Max Rip Right Of Blade With Included Fence & Rails:Ā 52ā³ *
* The hybrid fence on the Laguna Fusion offers the best of European and American fence features. This fence is NOT designed to be used on the LEFT side of the blade! Rail or tube on LEFT side is provided only to make the ON/OFF switch position adjustable.
Arbor Bearings:Ā Sealed & Permanently Lubricated
