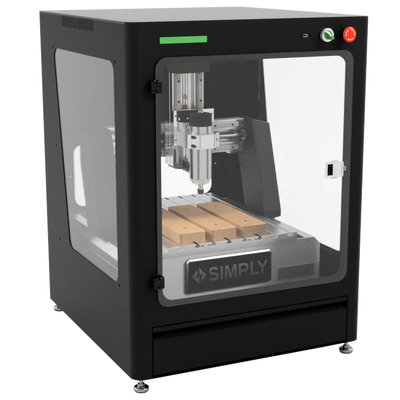

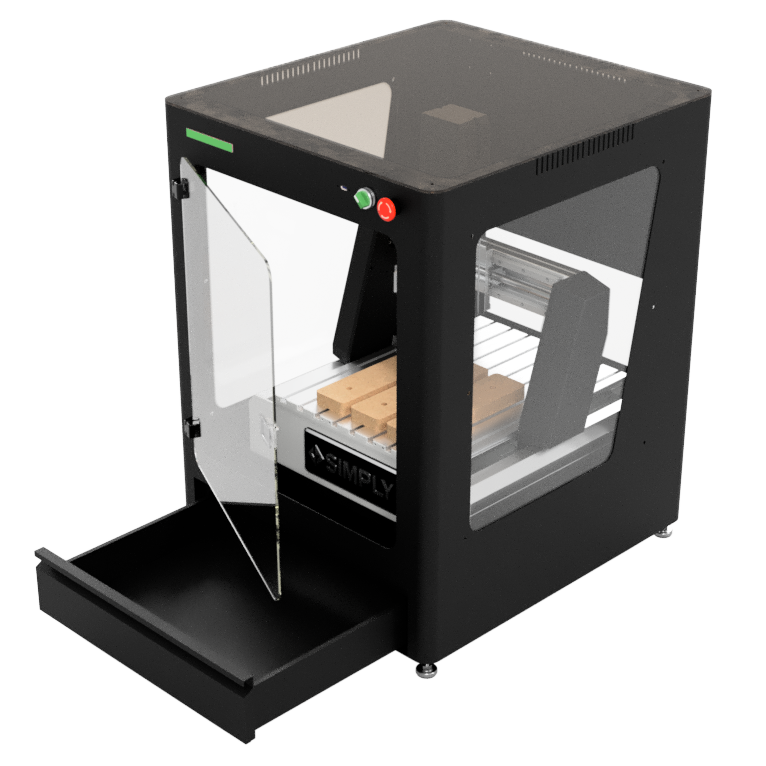

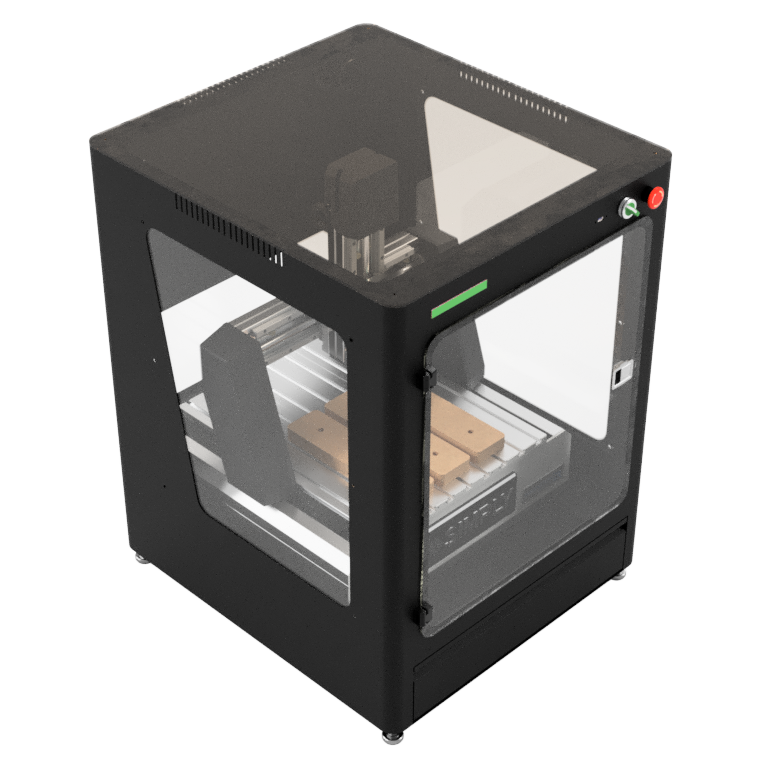

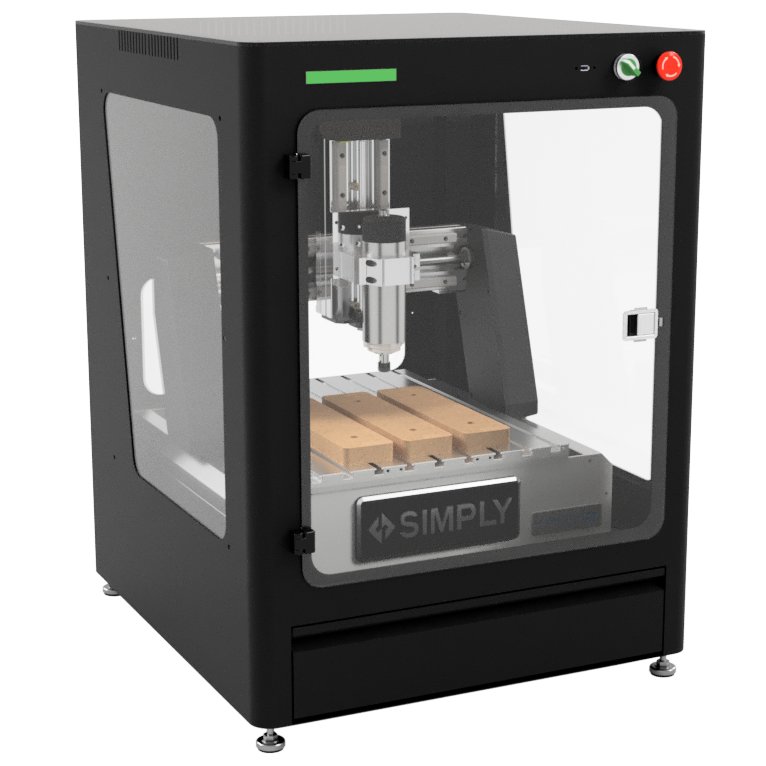

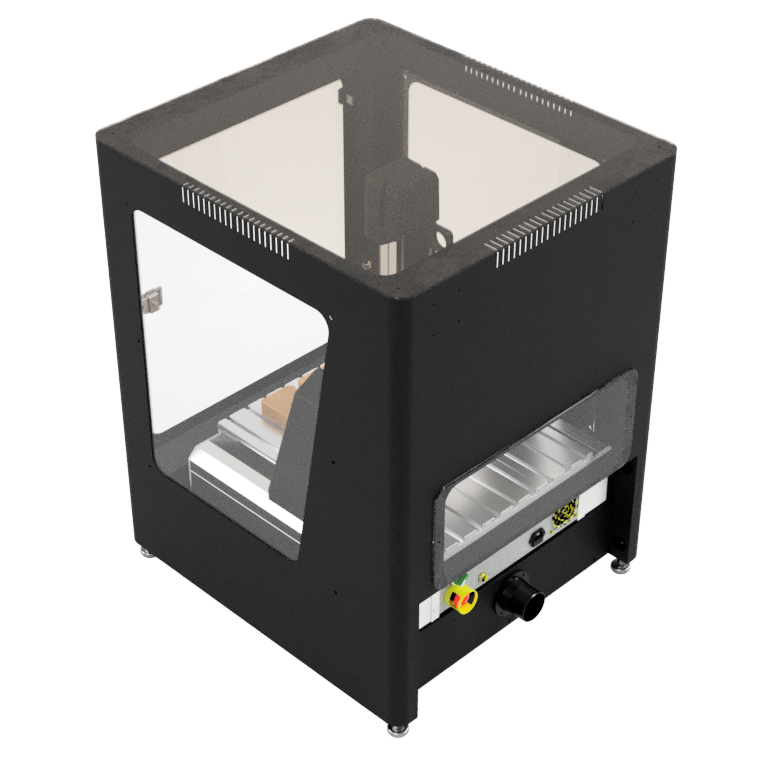

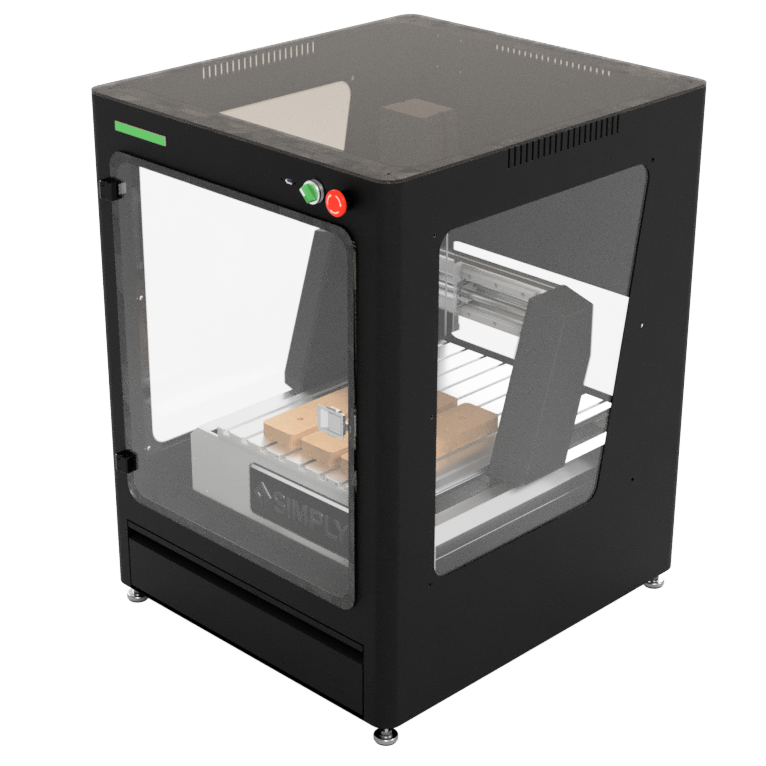

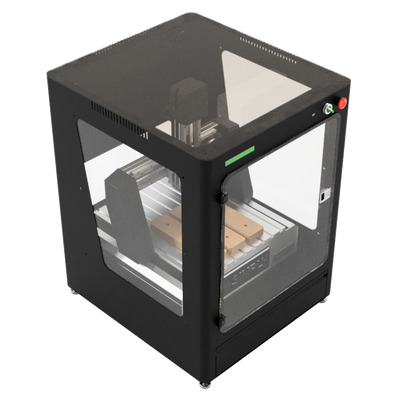

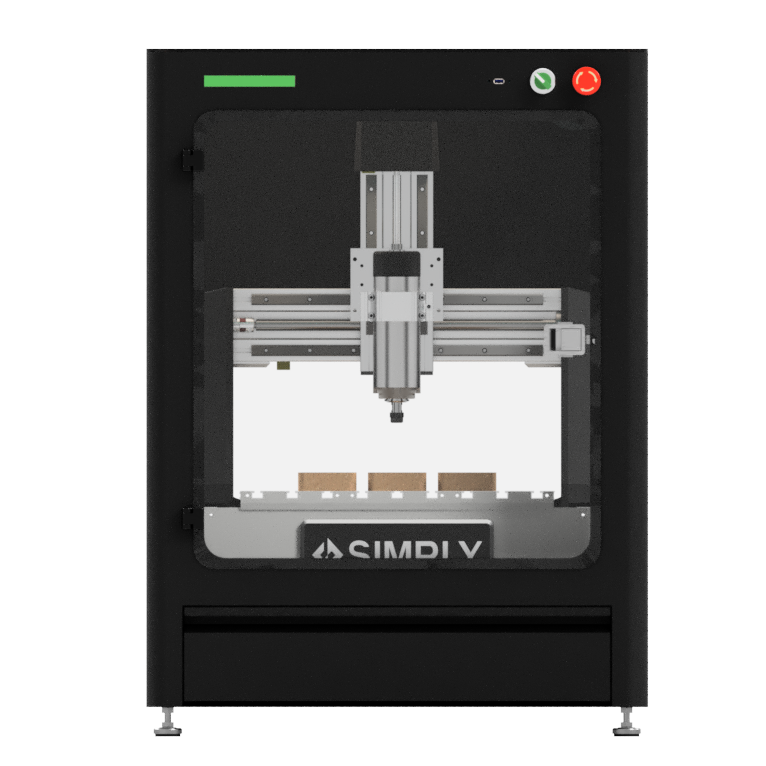

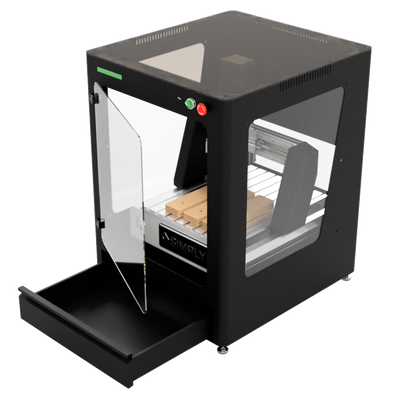

The Academy 1 is a compact, fully enclosed desktop CNC machine designed for makerspaces and small workshops. It features a 12” x 12” cutting area, a 1HP spindle, and an integrated dust shoe with external suction connection, delivering clean, quiet performance right from your workbench.
The Academy 1 is a fully enclosed desktop CNC machine built for makerspaces, hobbyists, and small business owners who need precision in a compact footprint. With a 12” x 12” cutting area and rigid aluminum construction, it delivers smooth, repeatable motion through precision ball screws and linear guideways on every axis. The powerful 1HP spindle (0–24,000 RPM) handles a wide range of materials and applications with ease.
Its desktop form factor allows it to sit comfortably on a sturdy table or workbench, making it ideal for space-conscious environments. The machine ships fully assembled and features an integrated dust shoe and hose system, designed to connect to an external dust collector, keeping your workspace cleaner and quieter. Controlled by our intuitive eCNC controller with a 7” touchscreen interface, the Academy 1 offers a professional-grade CNC experience in a plug-and-play package, purpose-built for smaller spaces.
| SKU | ACADEMY1 |
| X-Axis Travel | 12" (305mm) |
| Y-Axis Travel | 12" (305mm) |
| Z-Axis Travel | 5.5" (140mm) |
| Spindle Type | 1HP Air Cooled |
| Spindle Configuration | ER11 (1/8” & 1/4”) |
| Controller | eCNC (7” Touch Screen) |
| Rapid Feed Rate | 150ipm (3.81m/min) |
| Resolution | ± 0.00393" (0.10mm) |
| Power Requirements | AC 110V, 50-60Hz, 15A, 1-Phase (Optional 220V, 50-60Hz, 10A, 1-Phase) |
| Machine Base | High Rigidity Aluminum Extrusion |
| Working Table | High Rigidity Aluminum Extrusion |
| Gantry Bridge | High Rigidity Aluminum Extrusion |
| Gantry Supports | Steel Plate |
| Machine Dimensions | 31.5"L x 29.1"W x 36.8"H (800mm x 740mm x 935mm) |

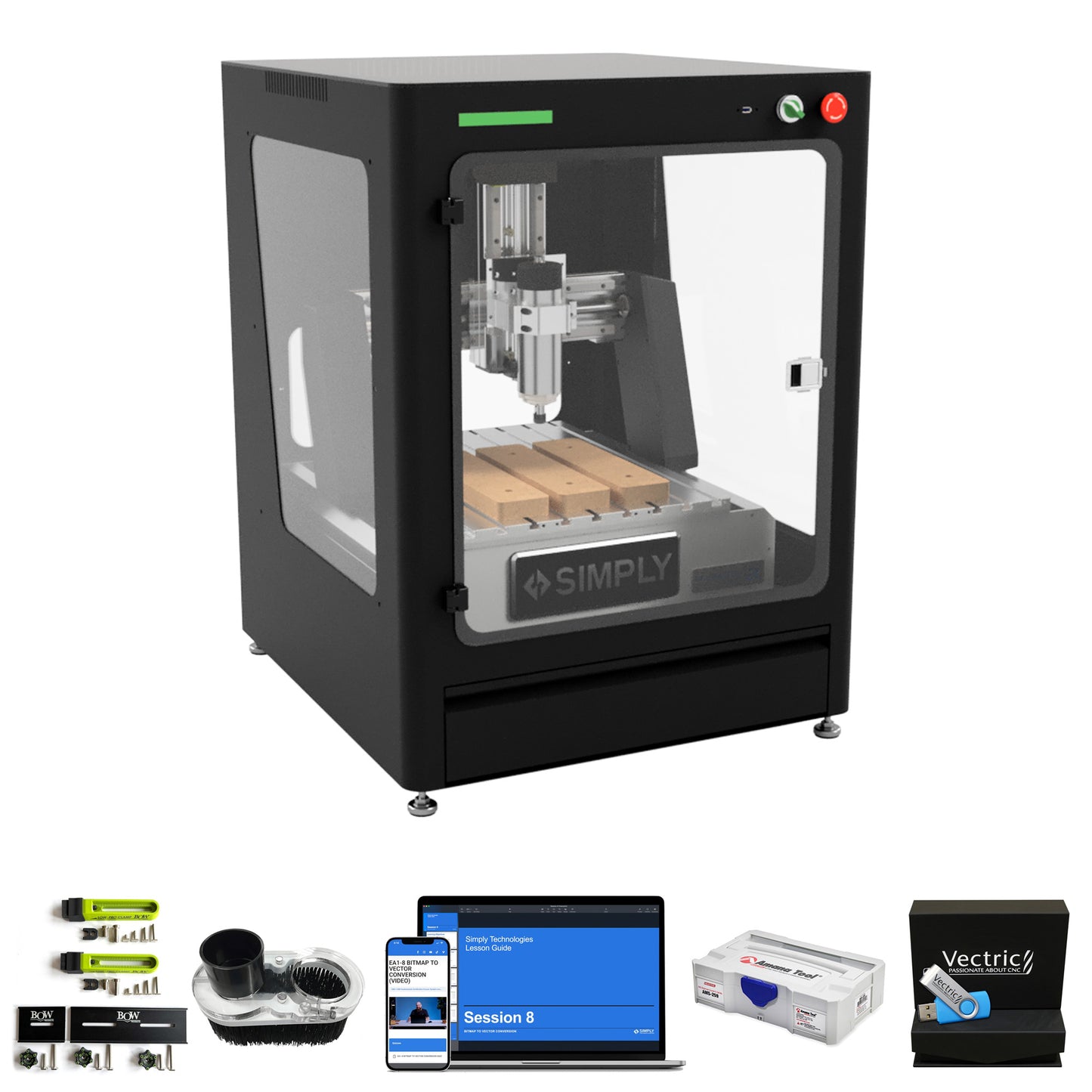

| Accessories Included | Tool Touch-Off Puck |
| Wrench Set | |
| 1/8” Collet + 1/4” Collet | |
| 110 Dust Shoe (DS110) | |
| Hold Down Clamps - Set of 2 (CNCHDC2) |
