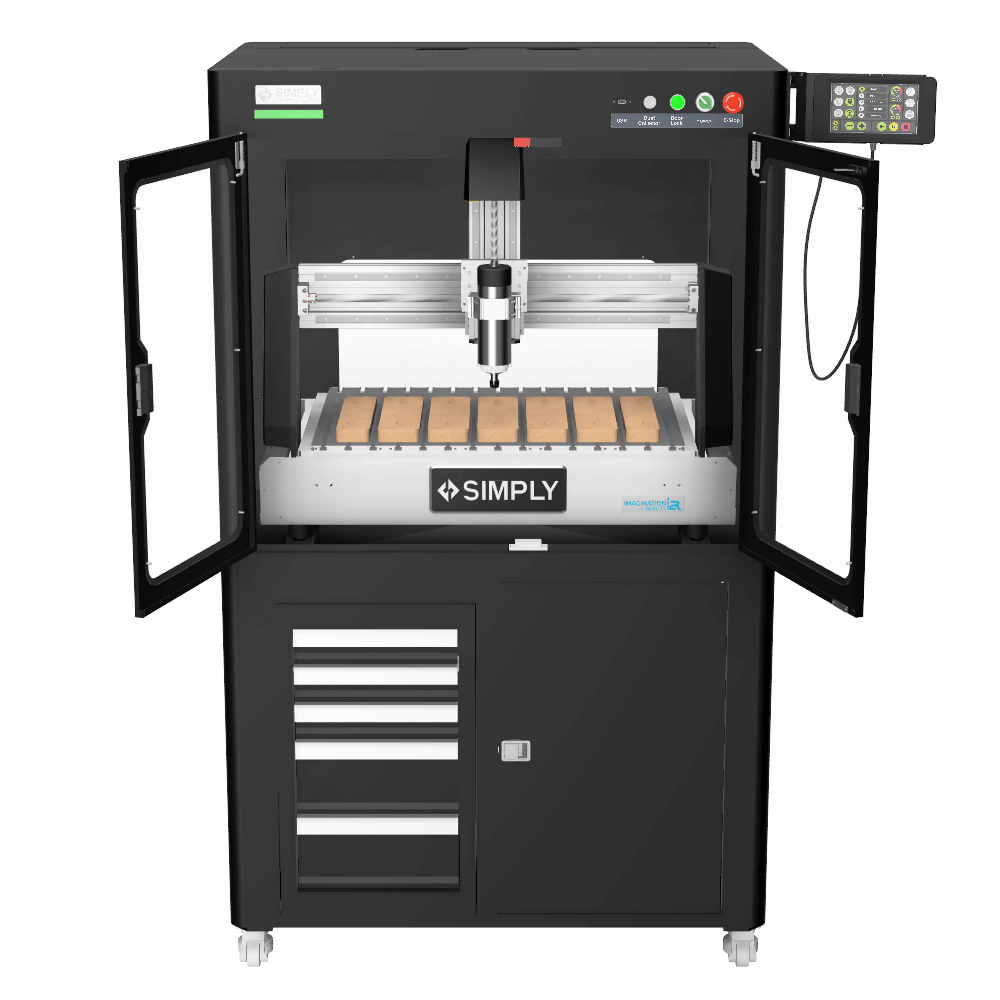

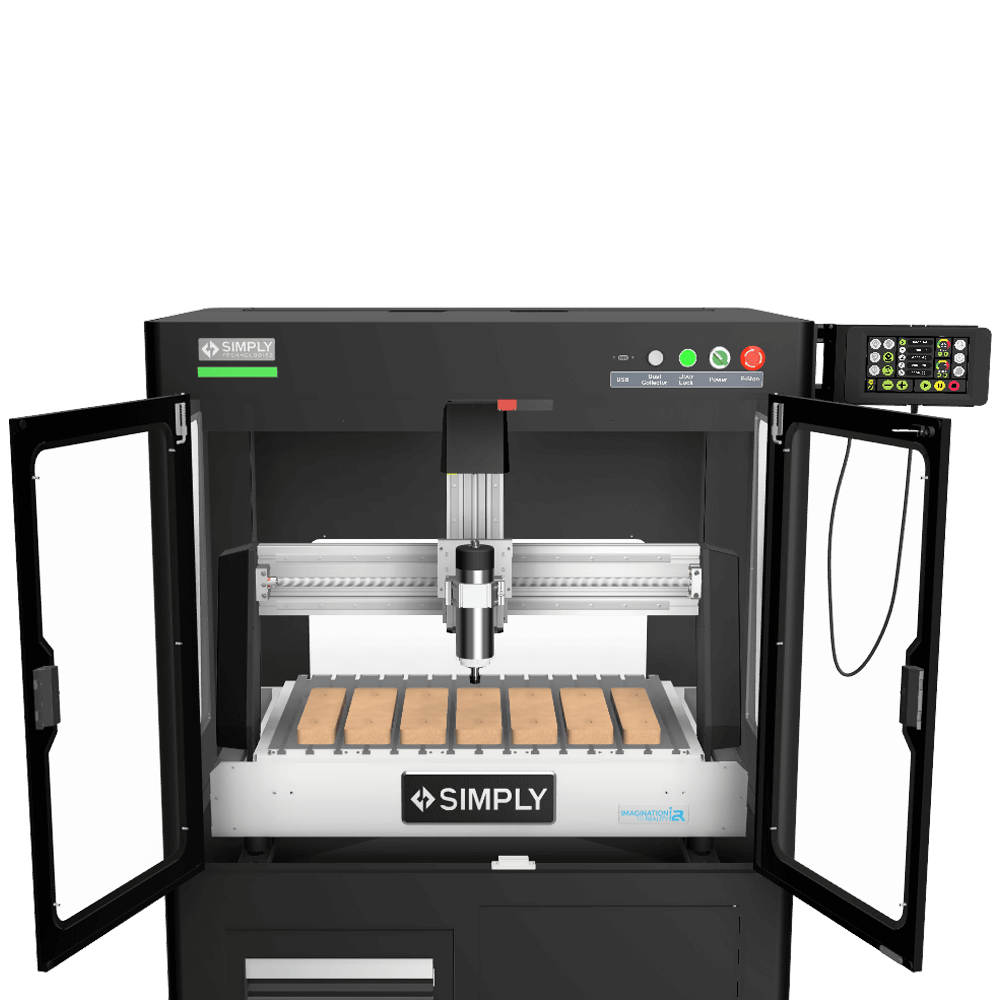

The Academy 2 is a true plug-and-play CNC solution designed for safety and mobility with a full enclosure and integrated dust collection. It features a 12” x 24” cutting area, a 1HP spindle, delivering clean, quiet performance for your workspace.

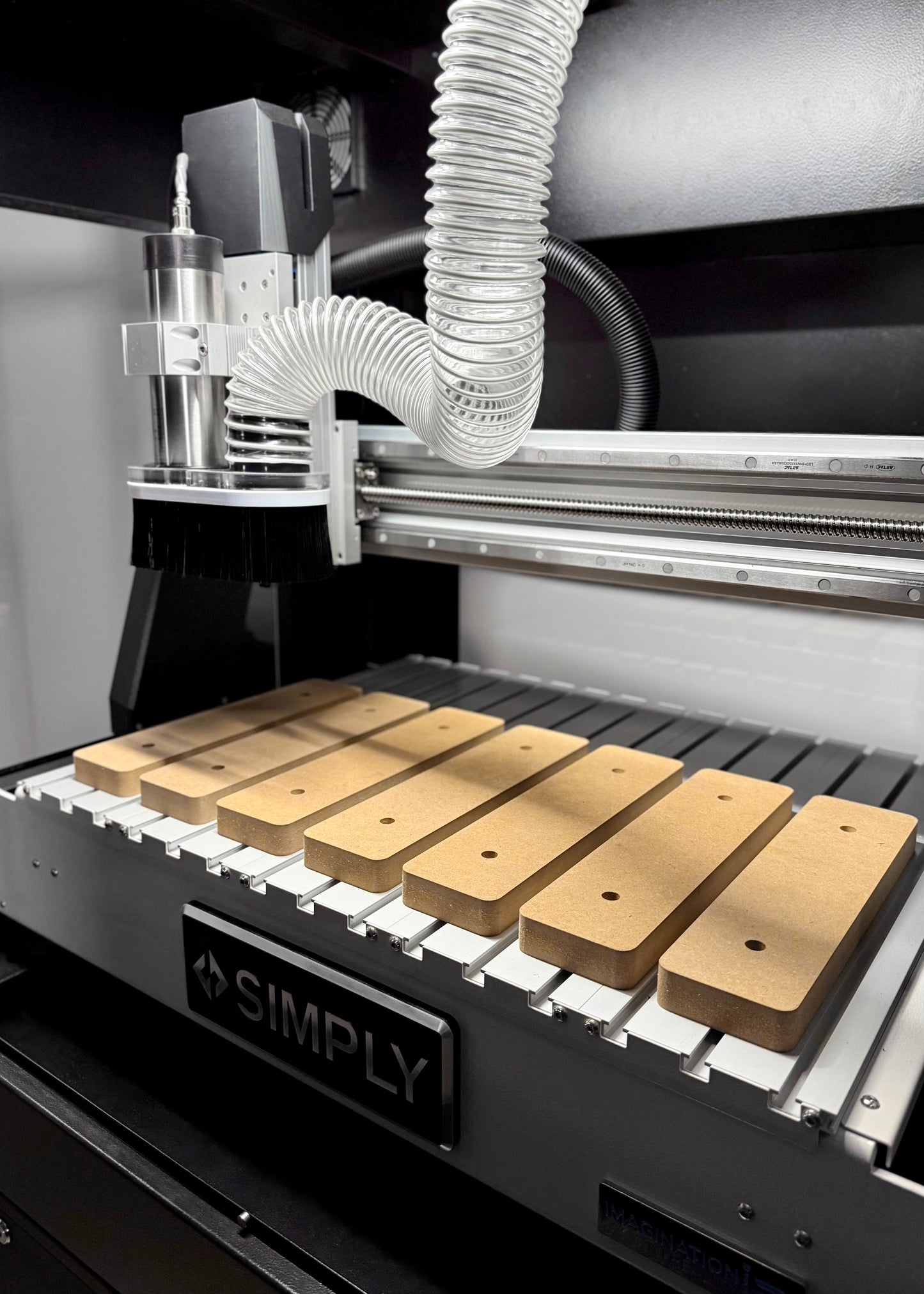

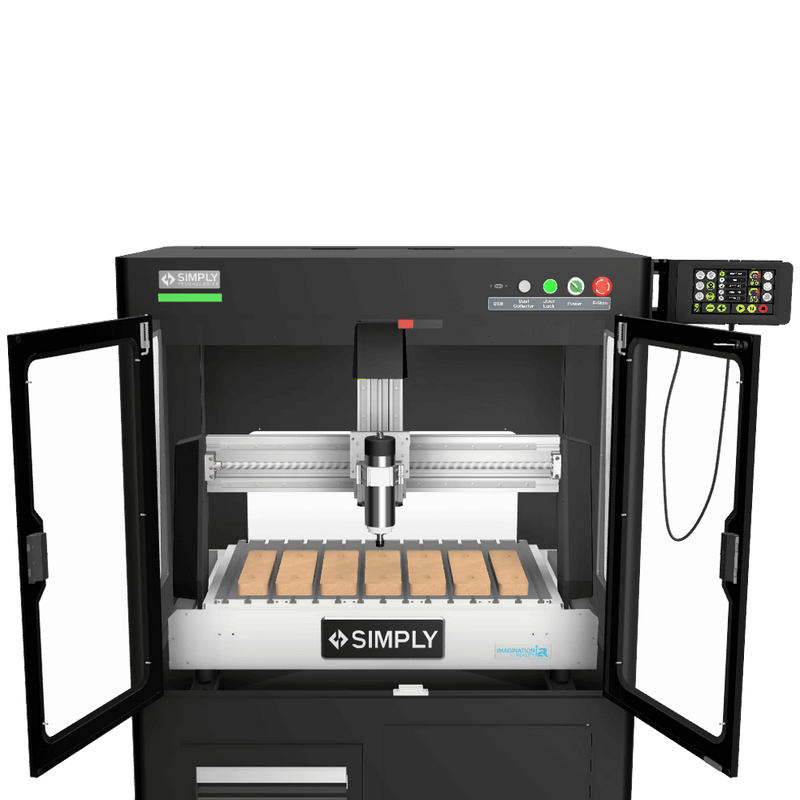

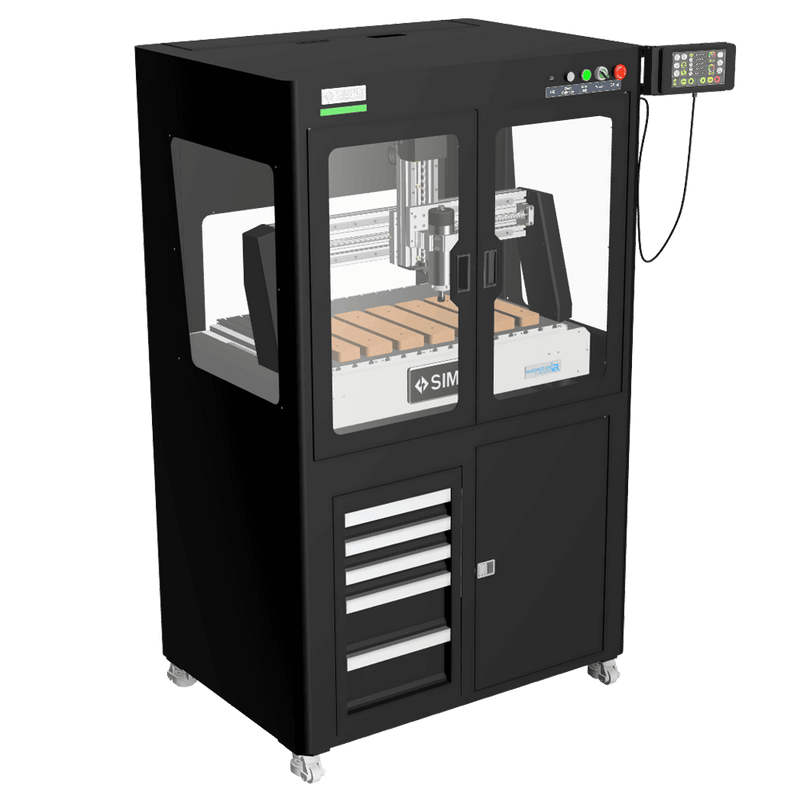

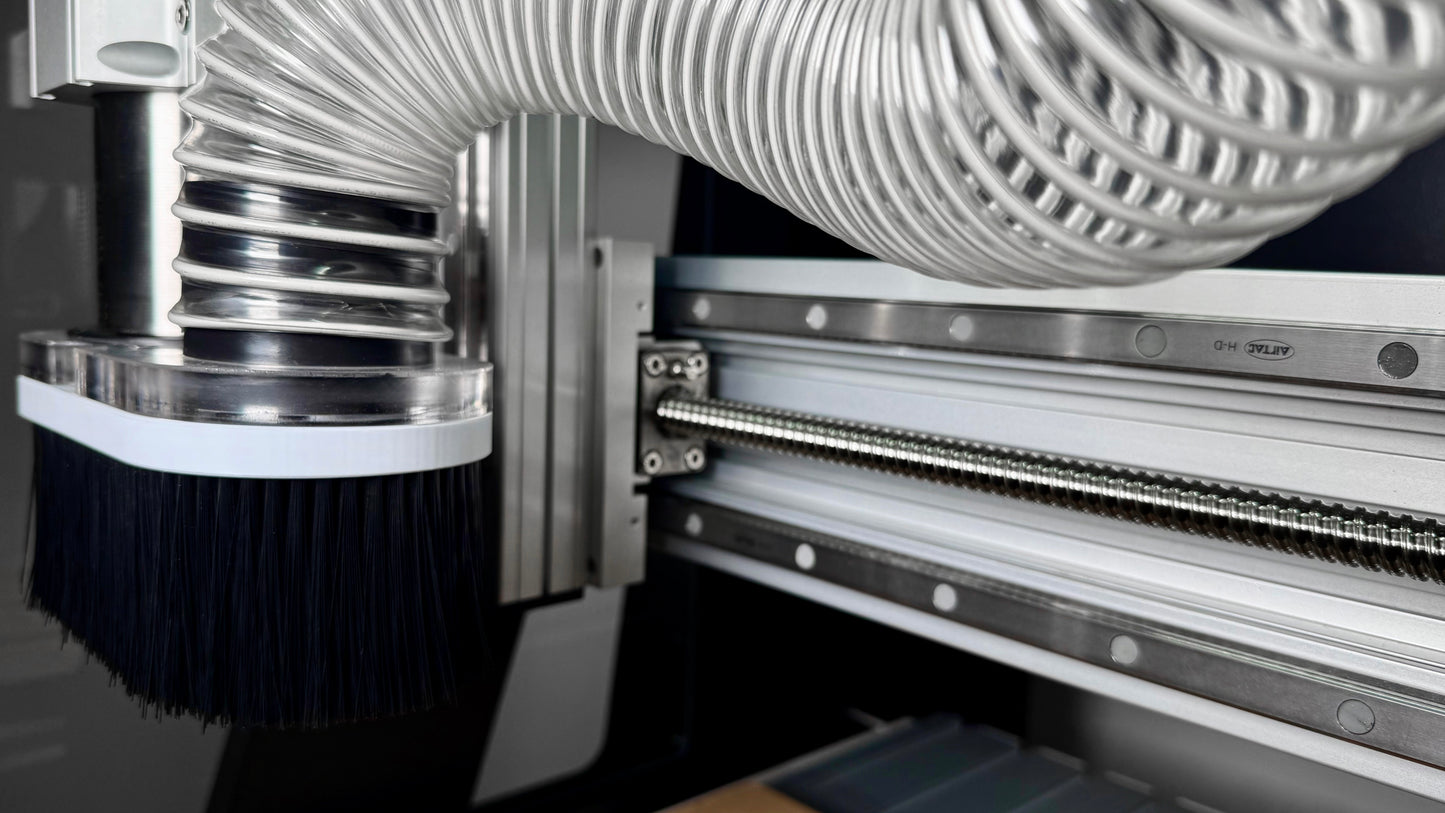

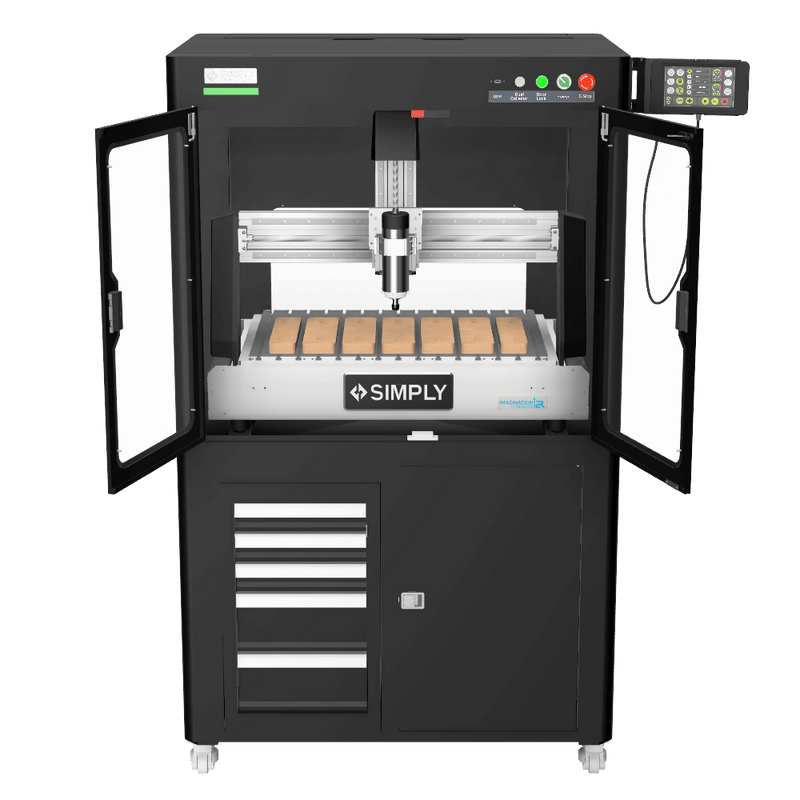

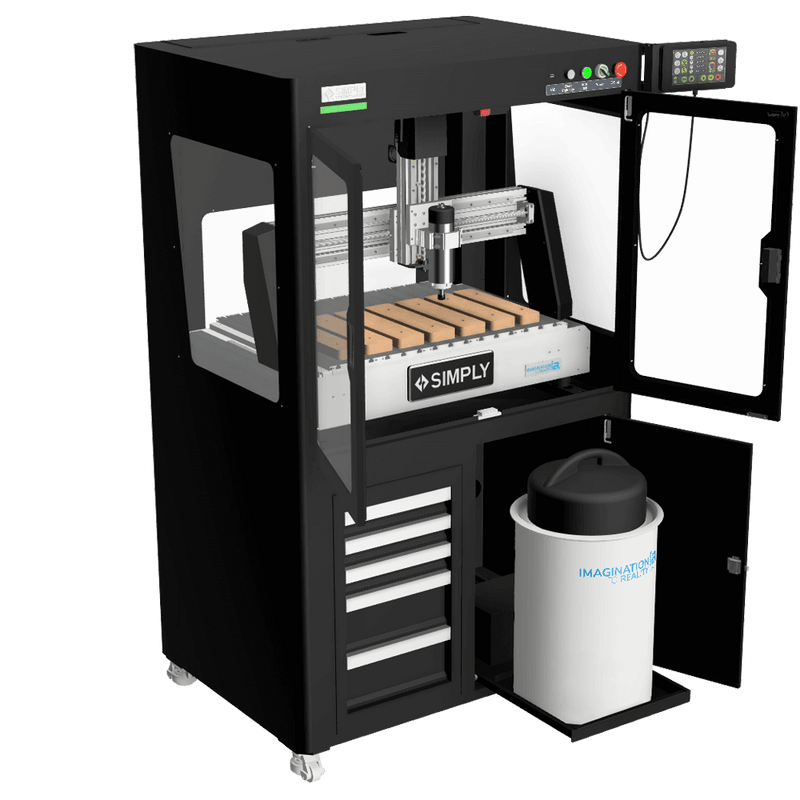

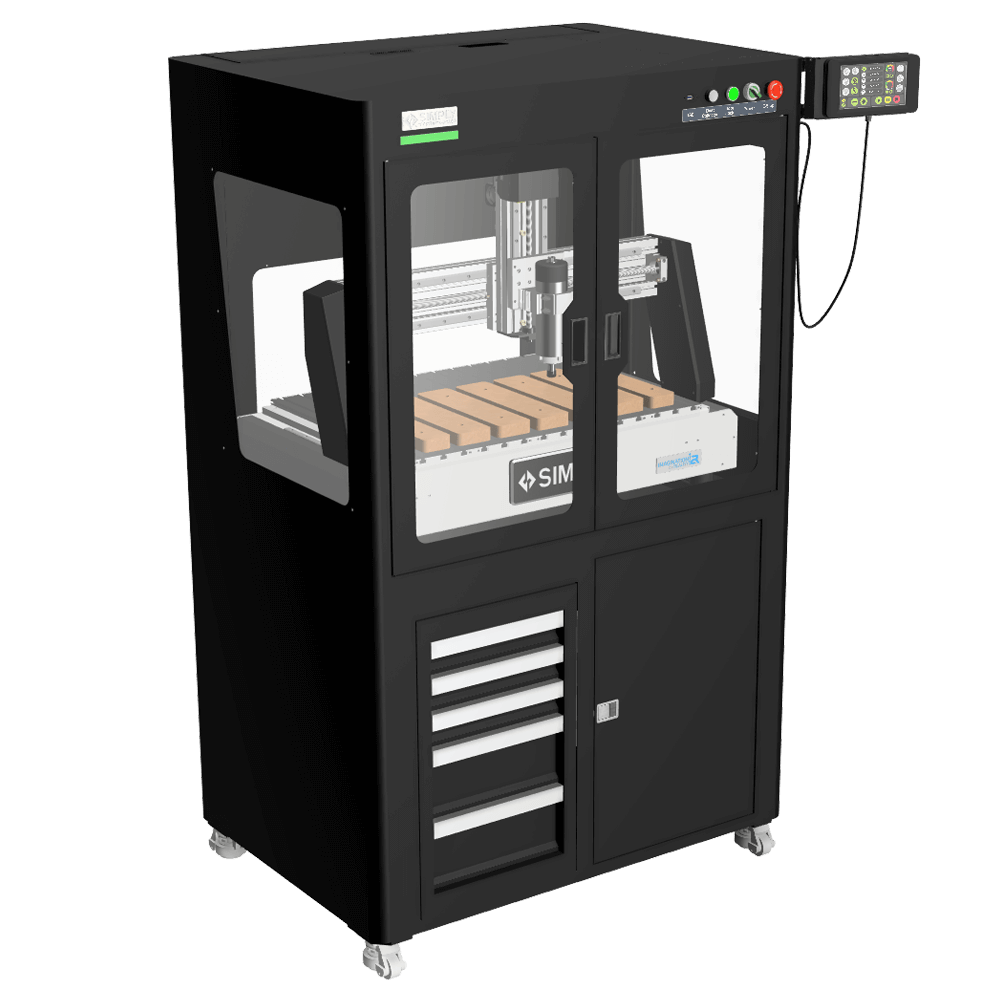

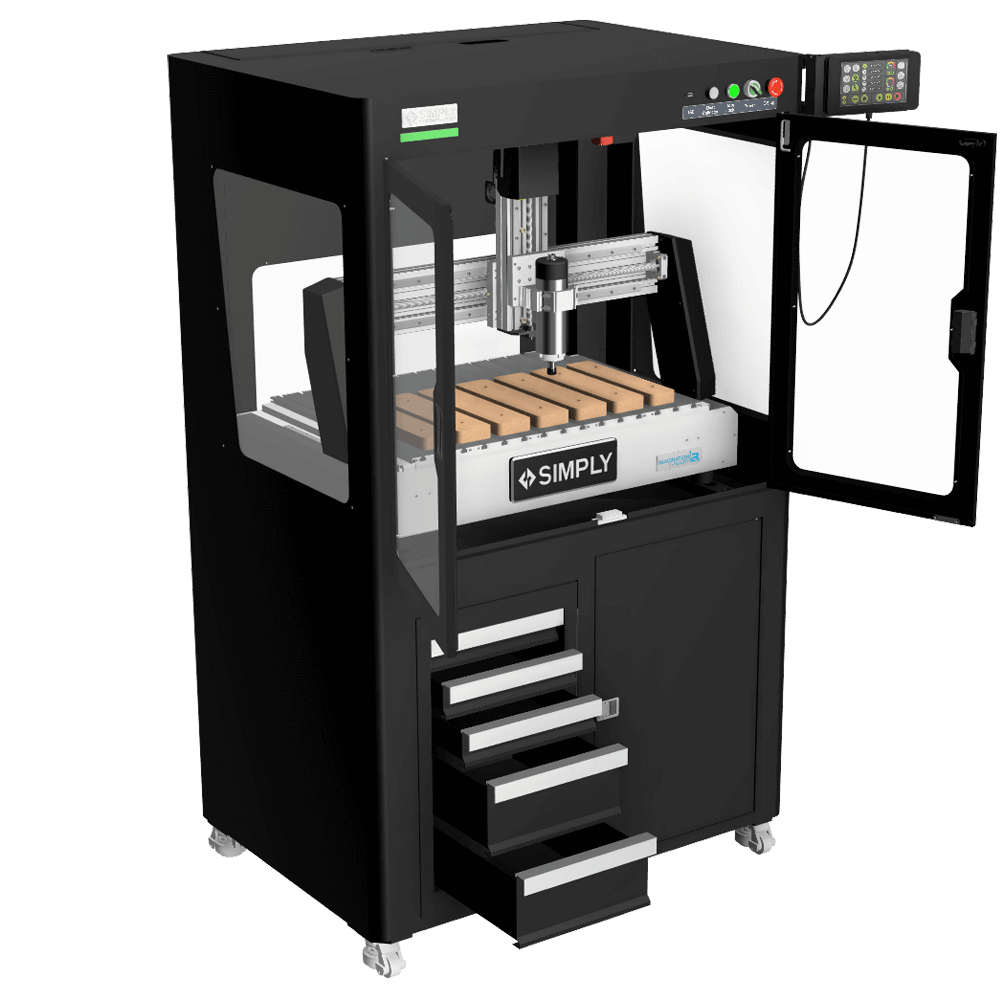

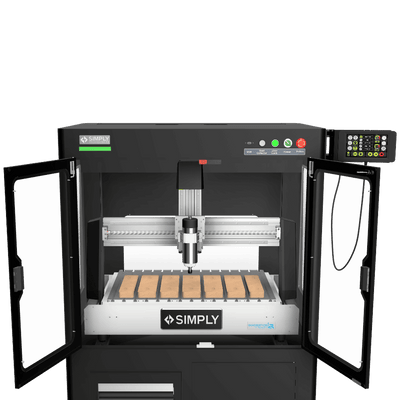

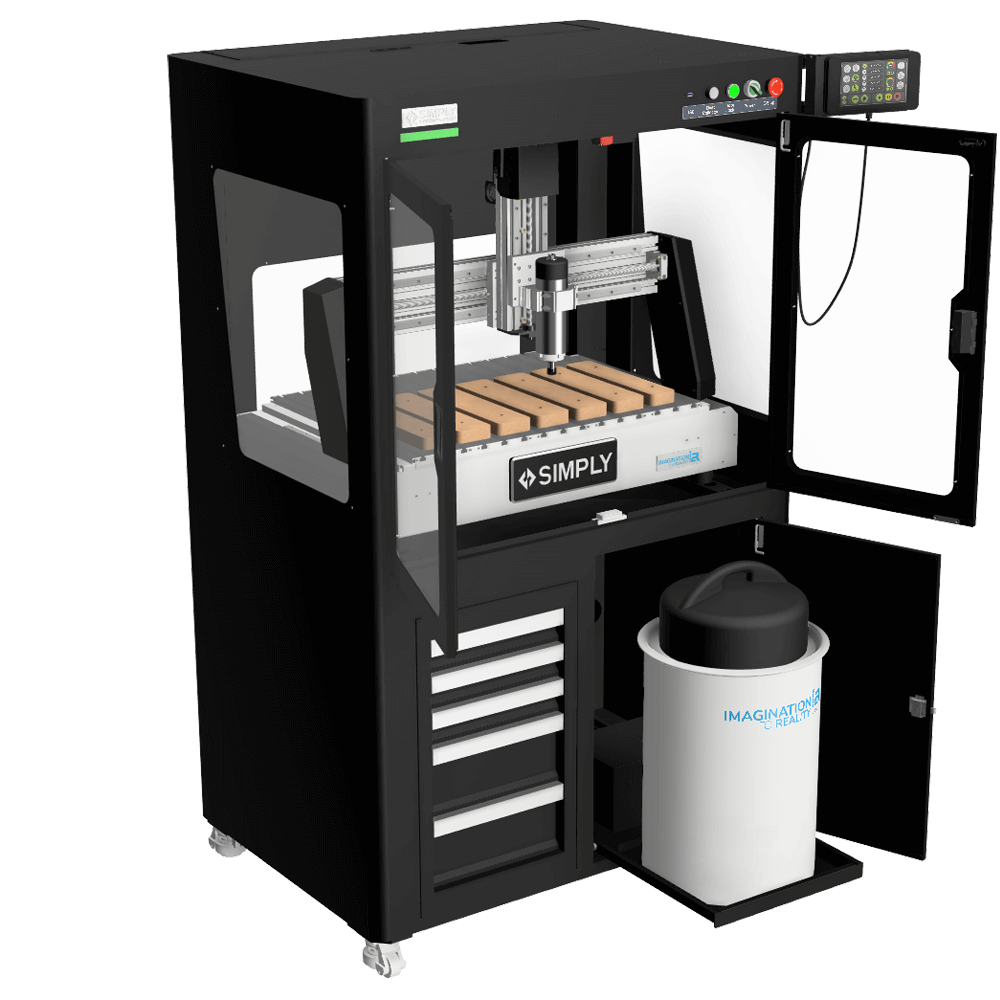

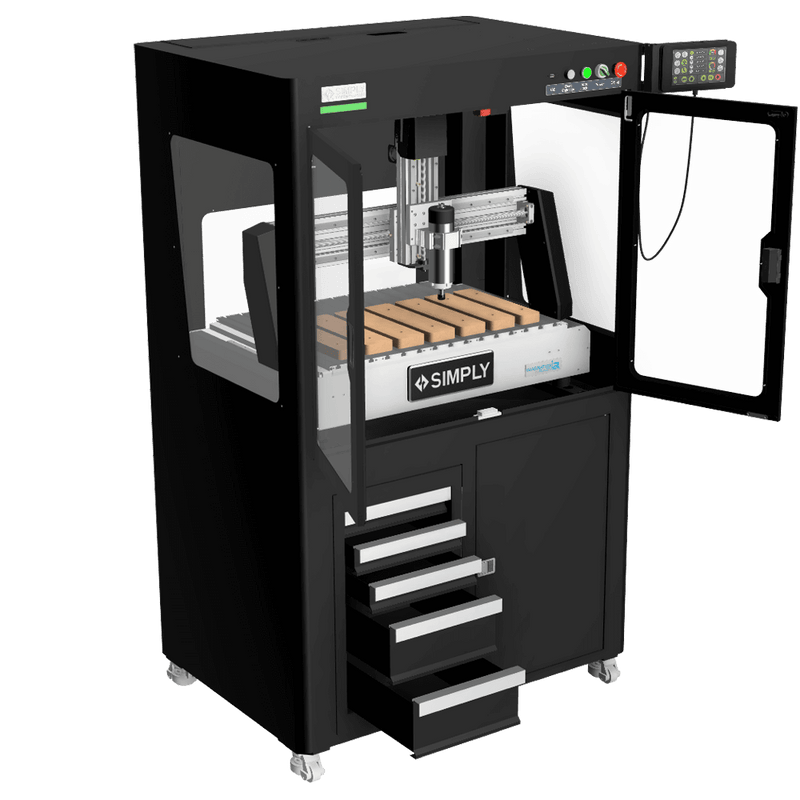

The Academy Series CNC machines are purpose-built for education, providing a safe, mobile, and fully integrated digital manufacturing solution that empowers teachers and students alike. The Academy 2 is housed in a fully enclosed matte black cabinet with interlocking safety doors, and features a built-in dust collection system, integrated tool storage drawer, and locking casters for easy movement between classrooms.

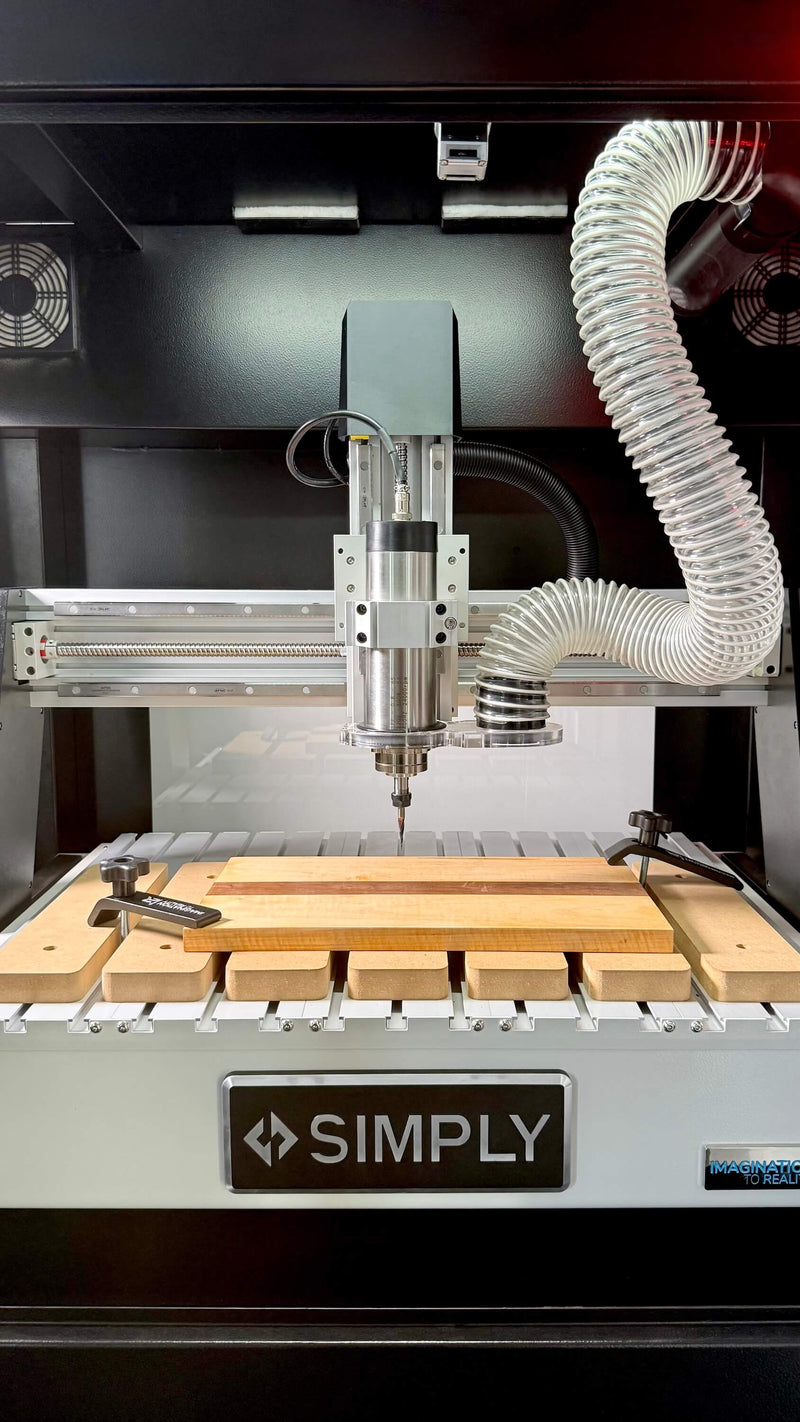

It features a 12” x 24” cutting area, a 1HP spindle, delivering clean, quiet performance for your workspace.
Each system ships fully assembled, making it a true plug-and-play solution. CSA-compliant and built for reliability, these machines are ideal for schools requiring both functionality and peace of mind.
| SKU | ACADEMY2 |
| X-Axis Travel | 24" (610mm) |
| Y-Axis Travel | 12" (305mm) |
| Z-Axis Travel | 5.5" (140mm) |
| Spindle Type | 1HP Air Cooled |
| Spindle Configuration | ER11 (1/8” & 1/4”) |

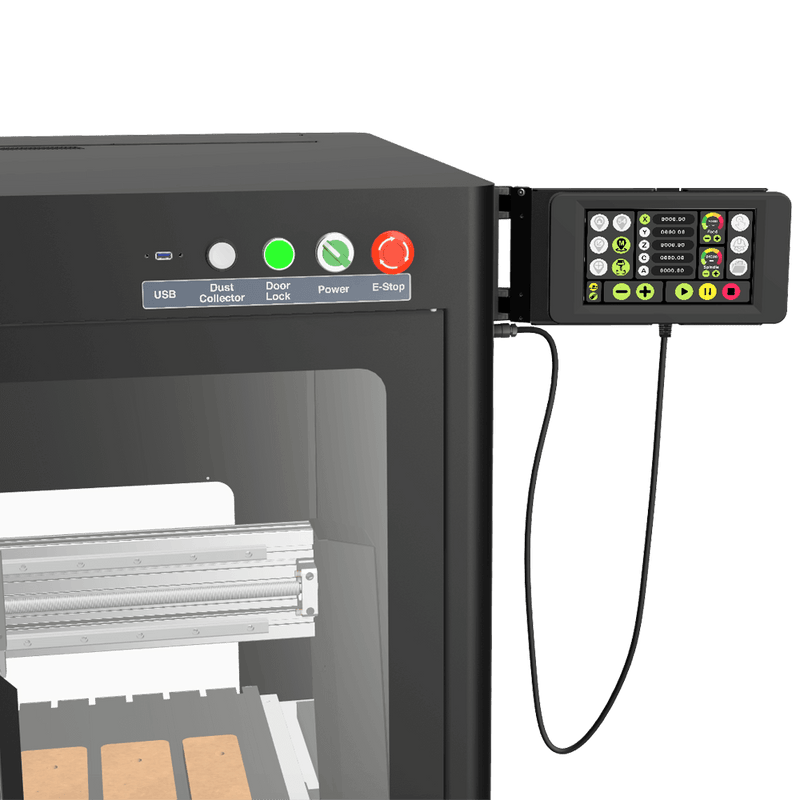

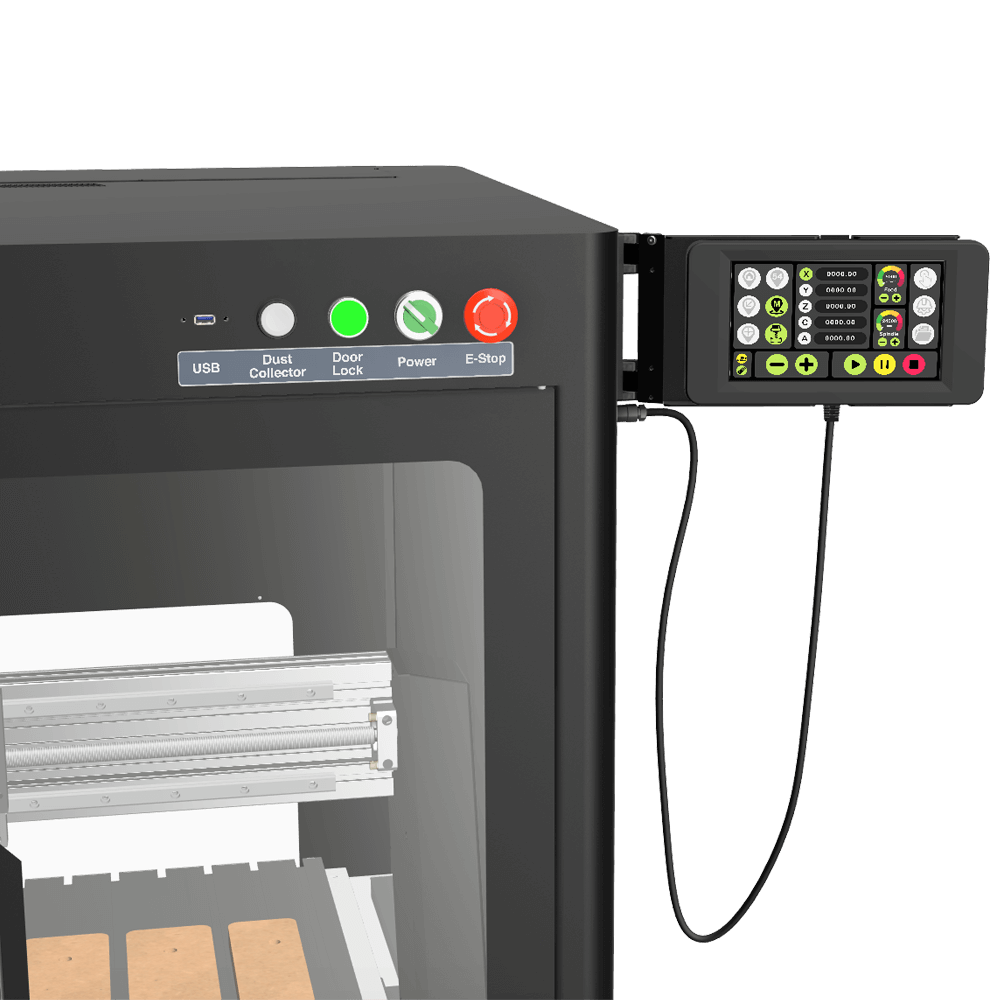

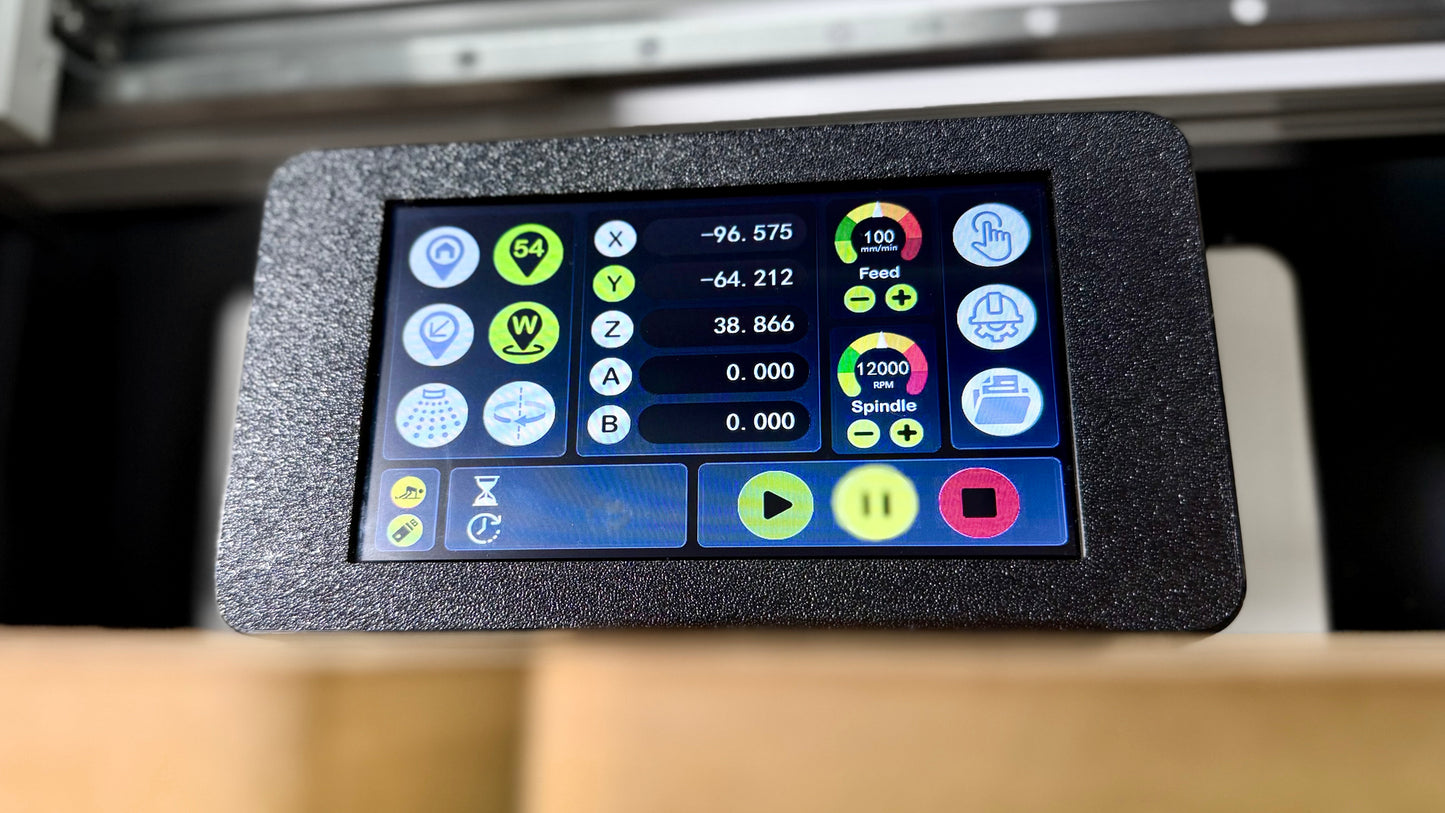

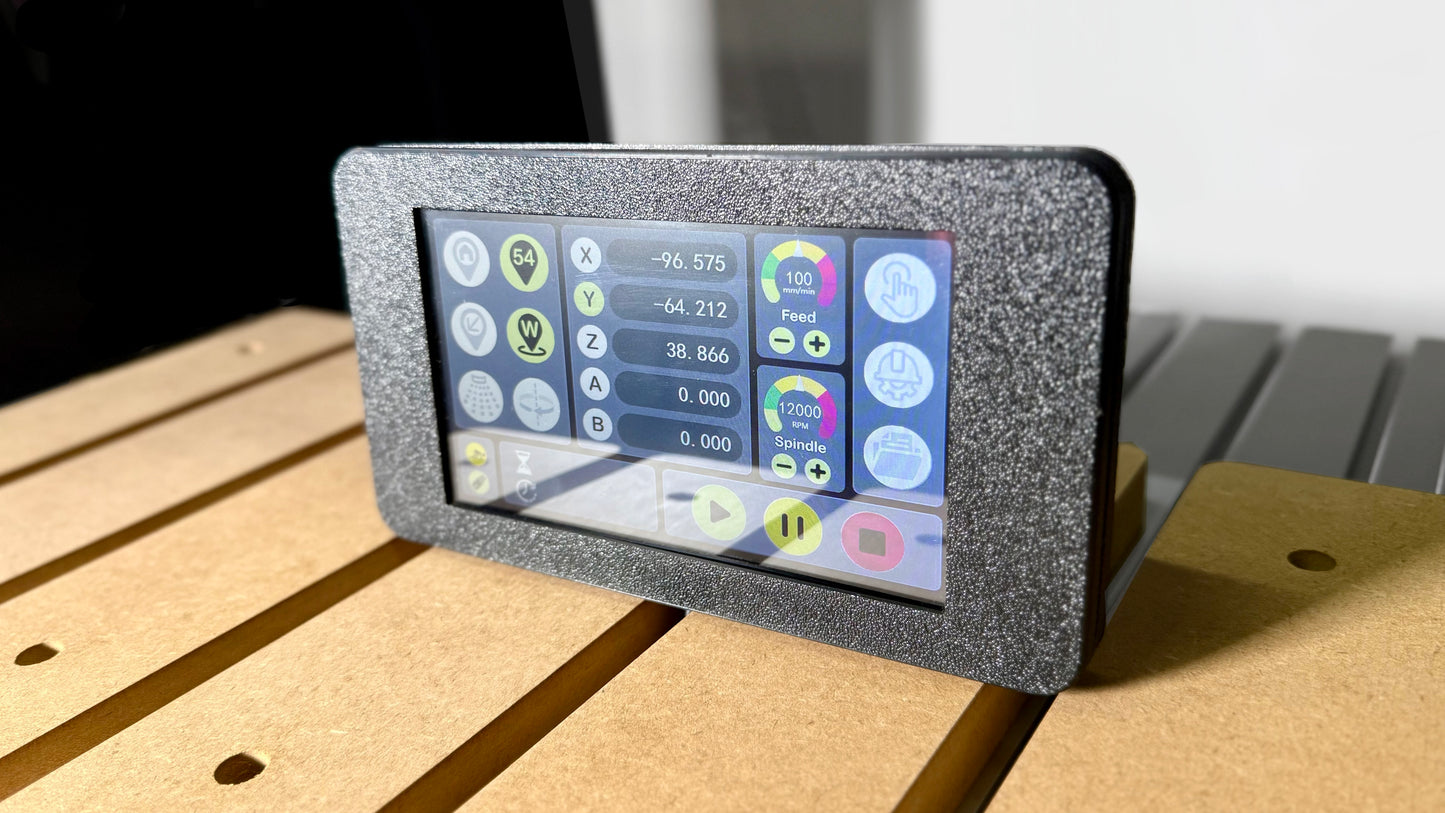

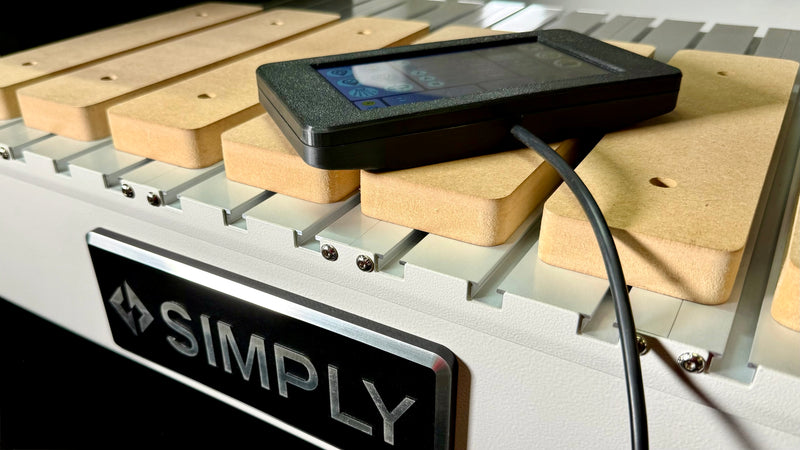

| Controller | eCNC (7” Touch Screen) |
| Rapid Feed Rate | 150ipm (3.81m/min) |
| Resolution | ± 0.00393" (0.10mm) |
| Power Requirements | AC 110V, 50-60Hz, 15A, 1-Phase (Optional 220V, 50-60Hz, 10A, 1-Phase) |
| Machine Base | High Rigidity Aluminum Extrusion |

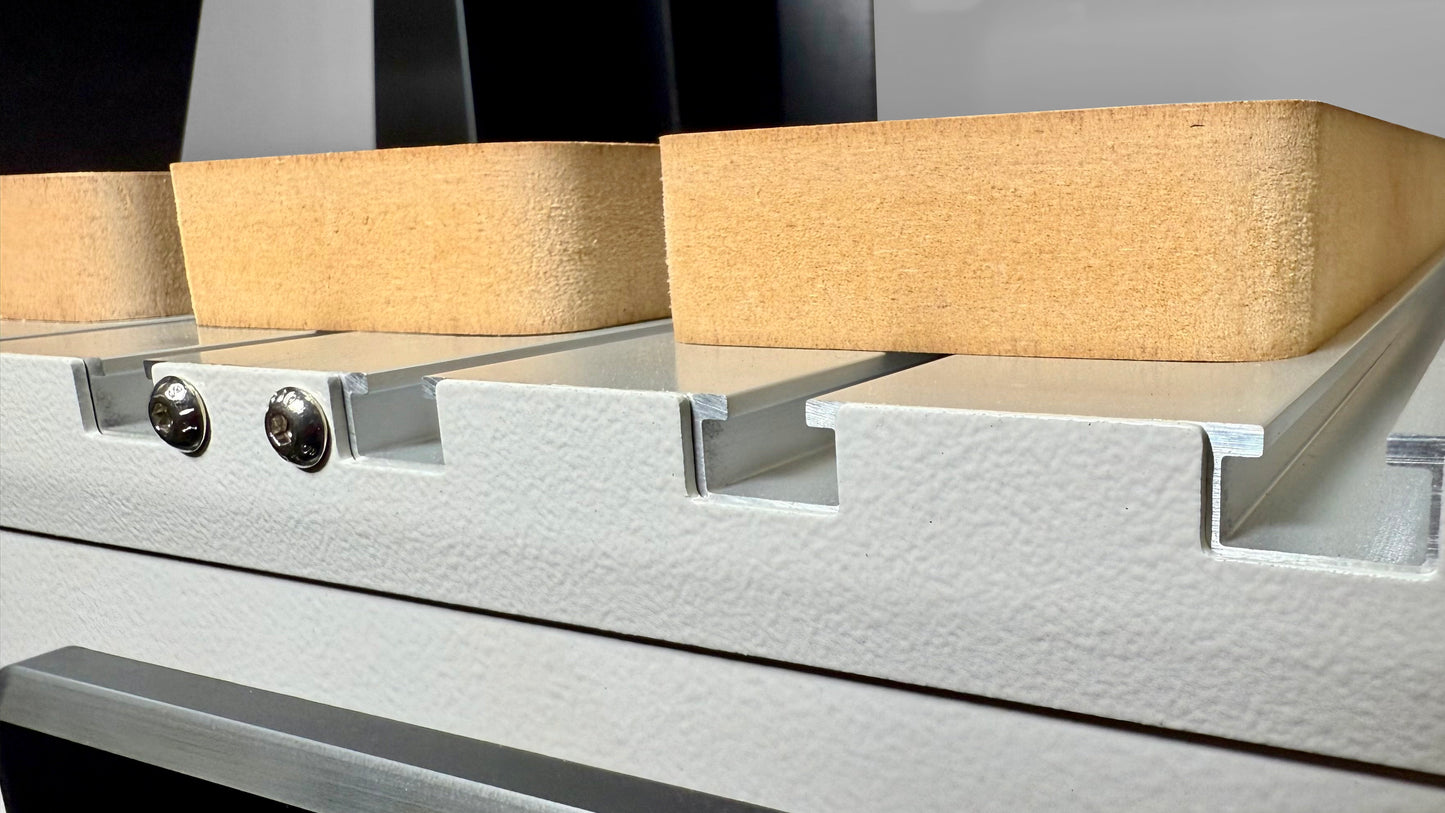

| Working Table | High Rigidity Aluminum Extrusion |
| Gantry Bridge | High Rigidity Aluminum Extrusion |
| Gantry Supports | Steel Plate |
| Machine Dimensions | 31.5"L x 43.7"W x 69.7"H (800mm x 1110mm x 1770mm) |
| Machine Weight | 573.2 lbs (260 kgs) |
| Shipping Dimensions | |
| Shipping Weight | 782.6 lbs (355 kgs) |

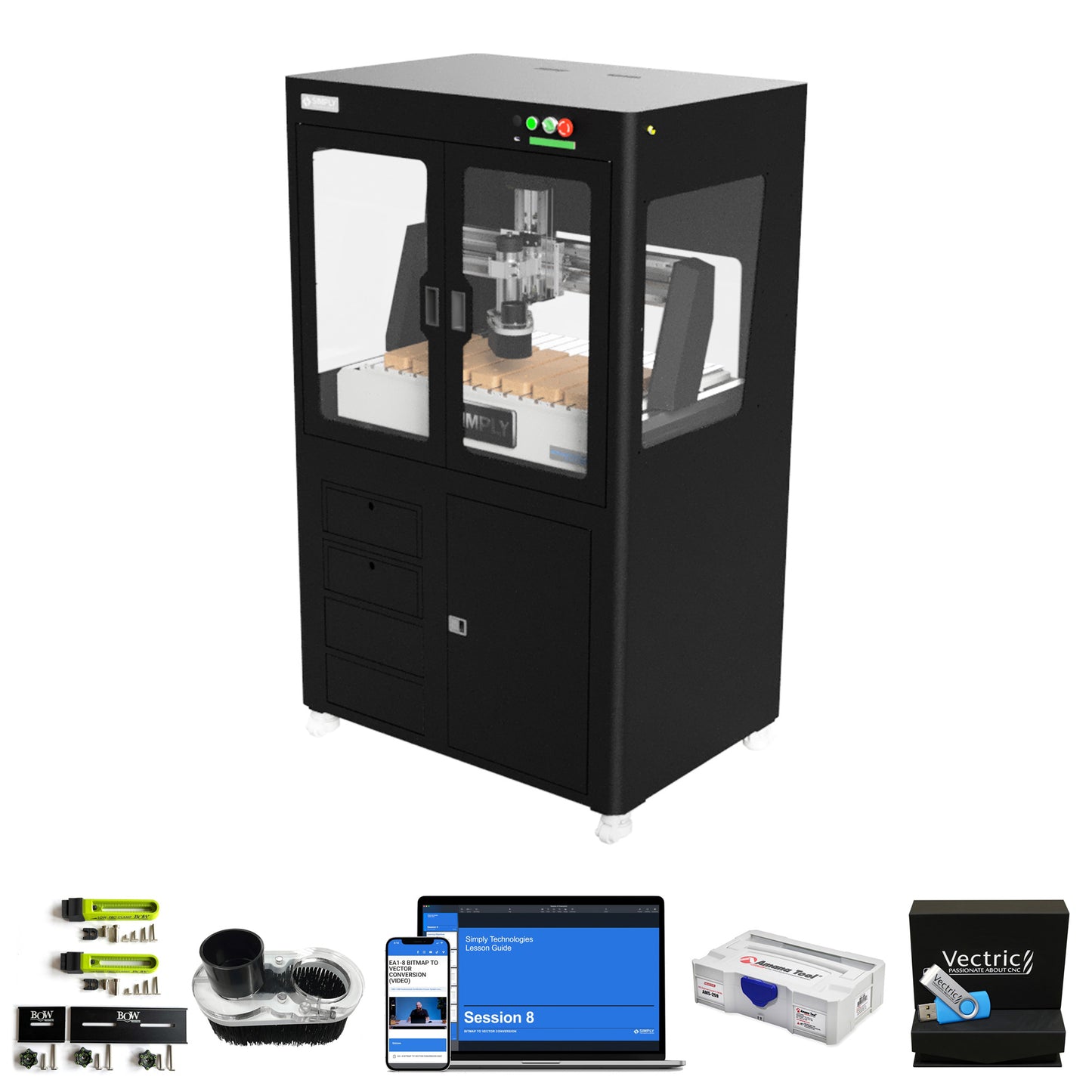

| Accessories Included | Tool Touch-Off Puck |
| Wrench Set | |
| 1/8” Collet + 1/4” Collet | |

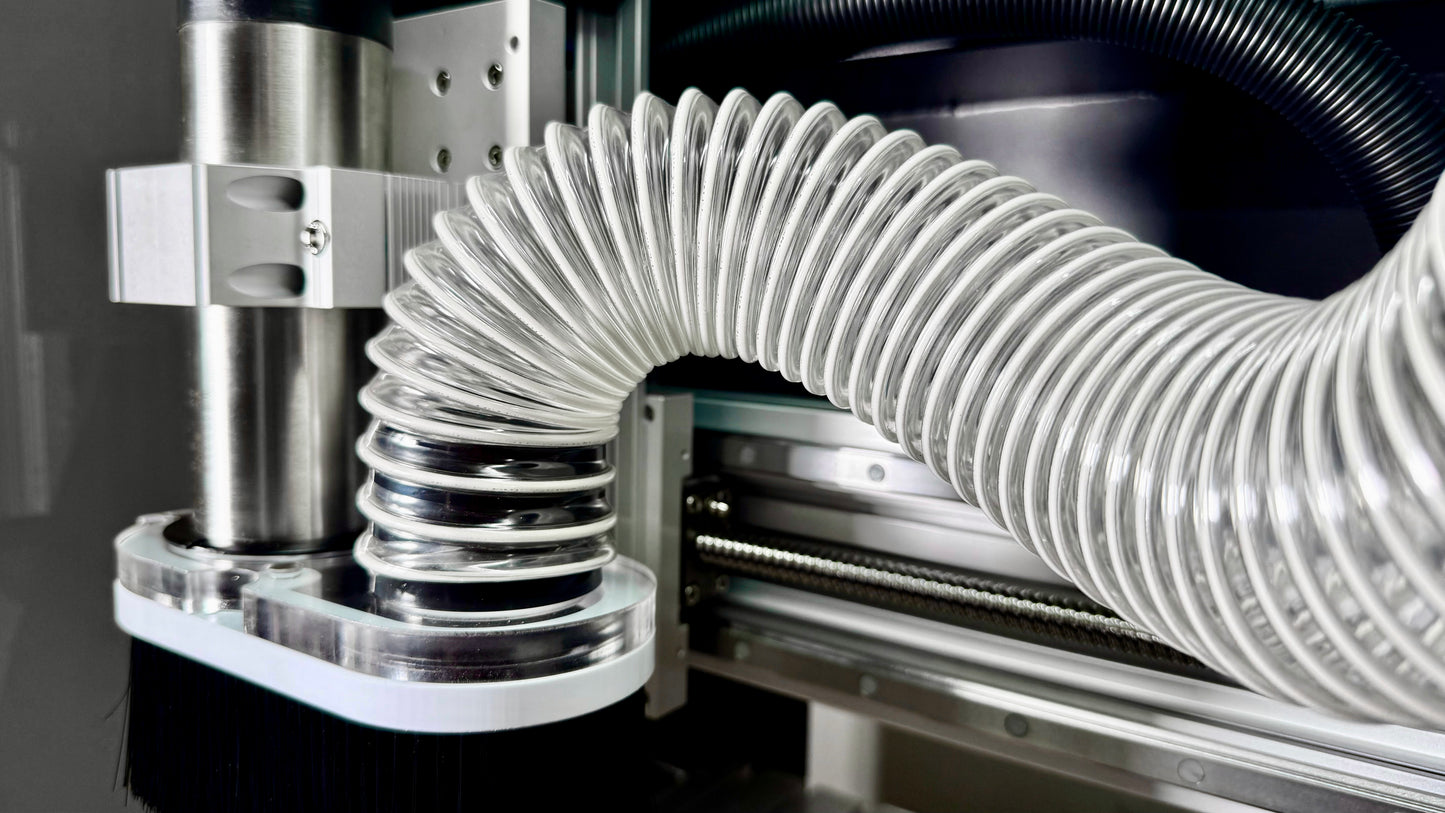

| 110 Dust Shoe (DS110) | |
| LED Kit (CNCLED) | |
| Hold Down Clamps - Set of 2 (CNCHDC2) |
