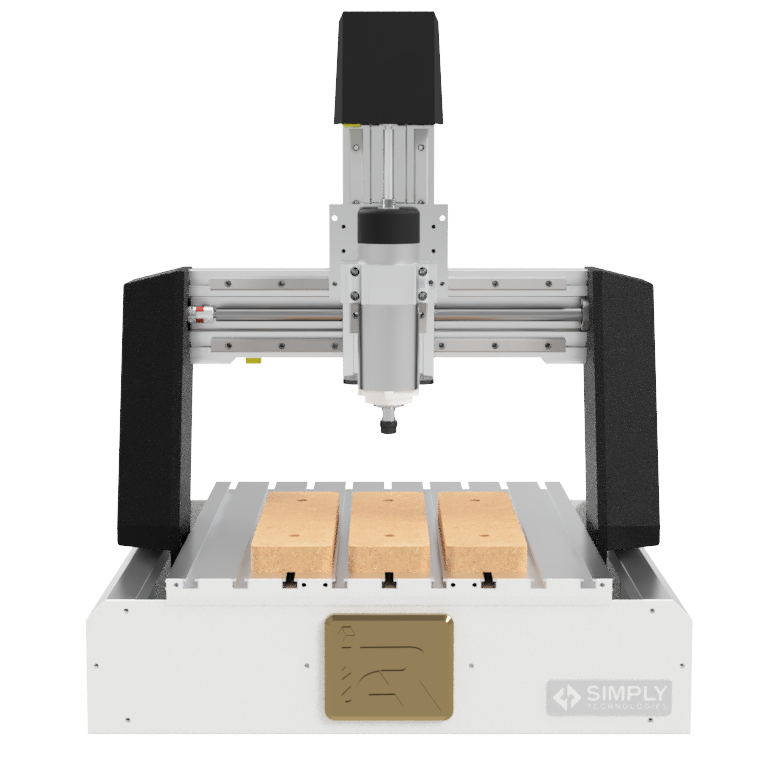

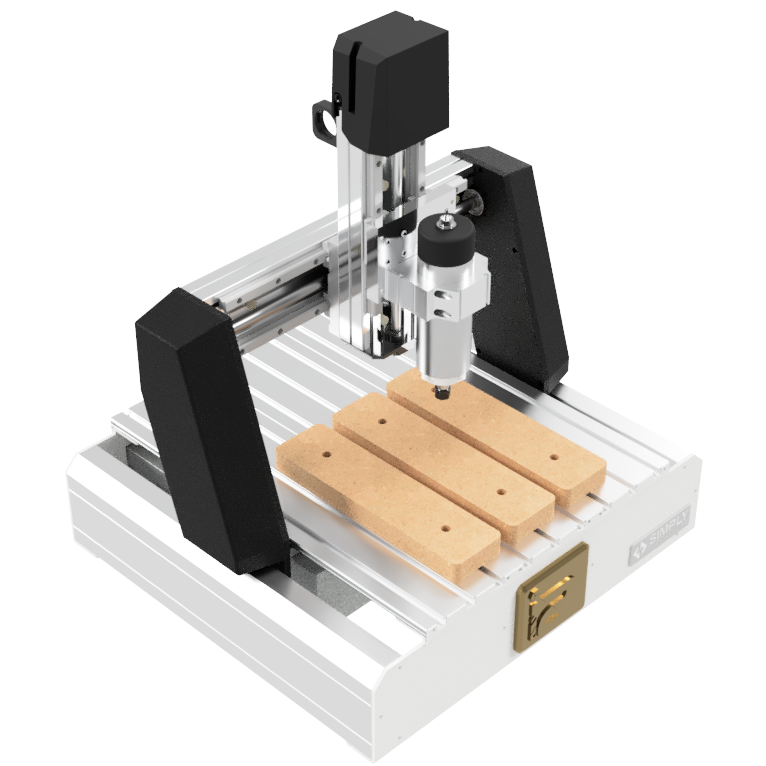

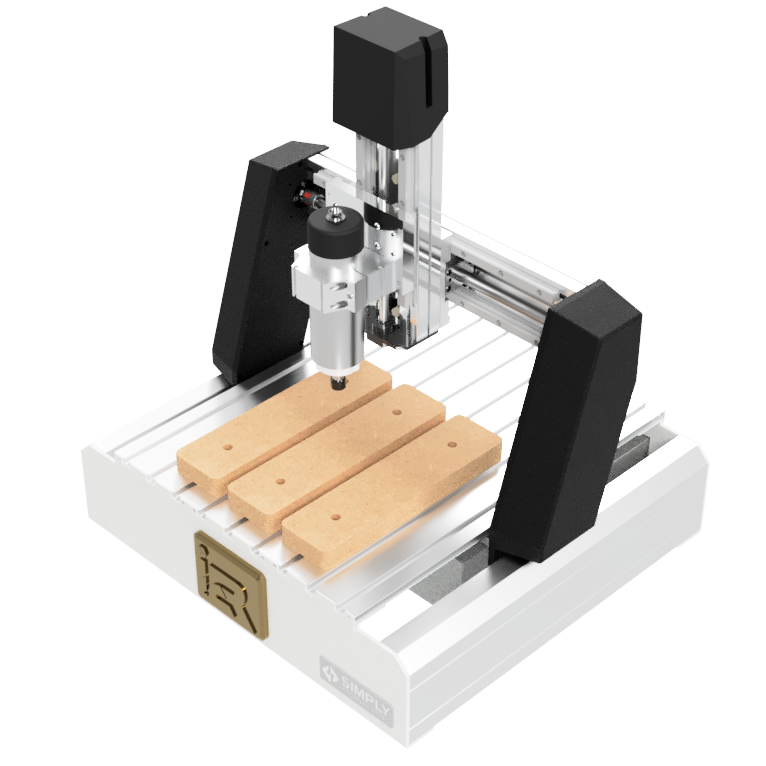

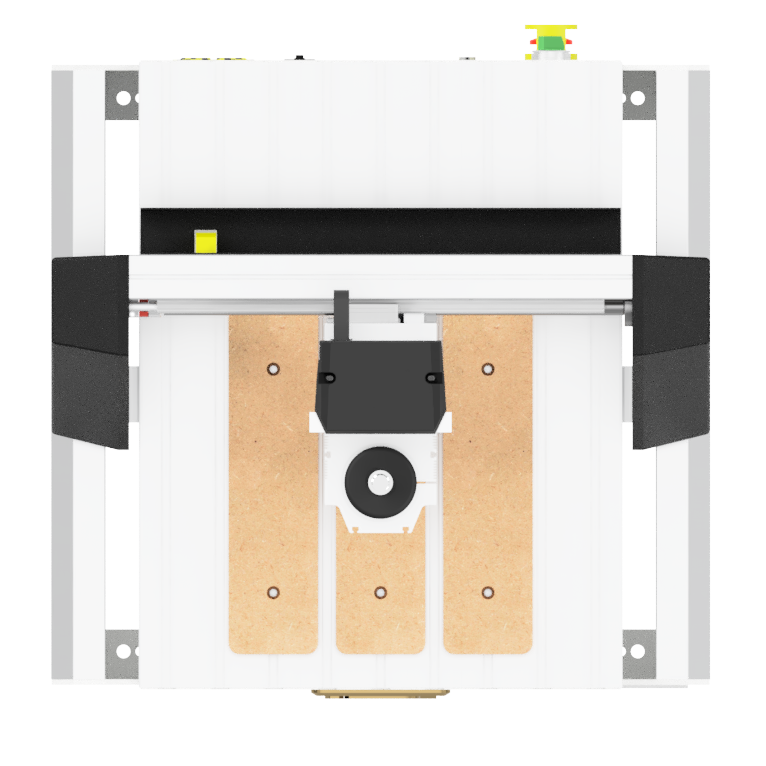

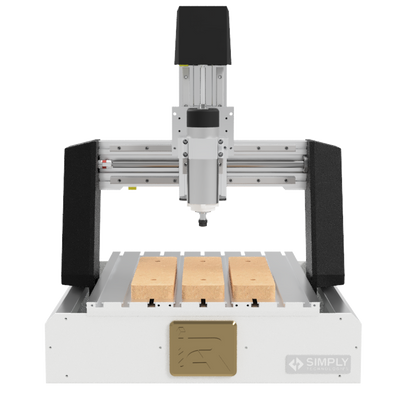

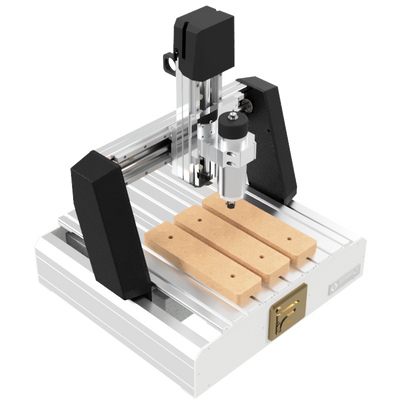

Simply Technologies - DISCOVERY 1 CNC, 12″ x 12″ - Model: DISCOVERY1
Couldn't load pickup availability
Item out of stock? - Call us and we'd be happy to reserve one for you when the next batch arrives!
Questions? - We are here to help!
Call us at 1-877-231-342
or local at 204-231-3429
The Discovery Series delivers dependable, small-format CNC machines for makers, hobbyists, and entry-level professionals. Available in sizes from 12″ x 12″ to 48″ x 48″, each model is built with premium ball screws, linear guideways, and an intuitive eCNC controller with a 7″ touchscreen. From 1HP spindles on compact machines to powerful 3HP spindles on our largest models, the Discovery Series is engineered to grow with your creativity.
The Discovery Series offers a powerful and reliable CNC solution for creators, educators, and small businesses looking to take their digital fabrication to the next level. Our Discovery lineup includes five distinct models: Discovery 1 (12″ x 12″), Discovery 2 (24″ x 12″), Discovery 8 (24″ x 48″), and Discovery 16 (48″ x 48″).

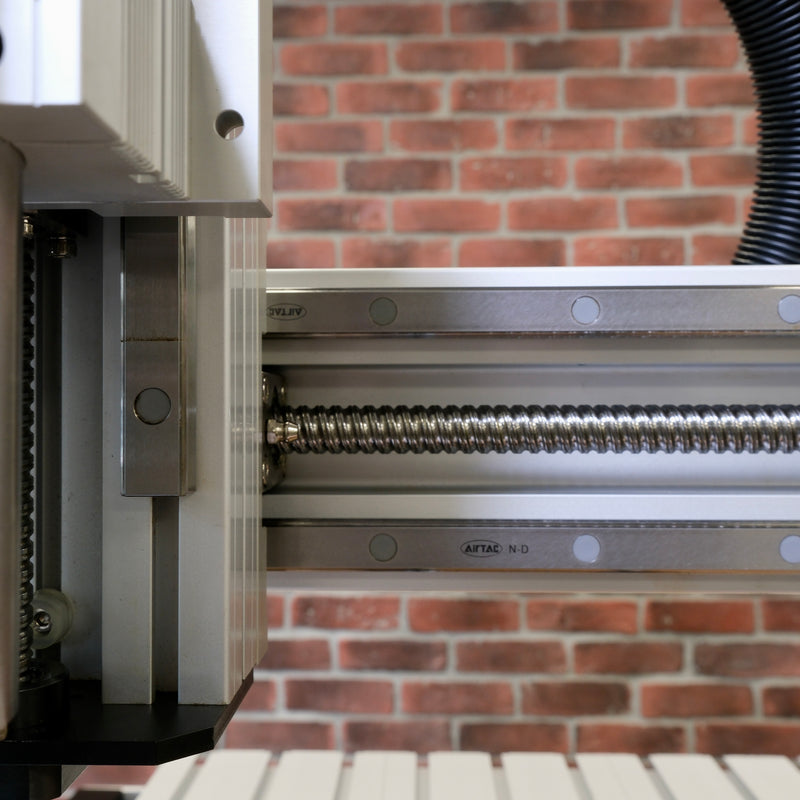

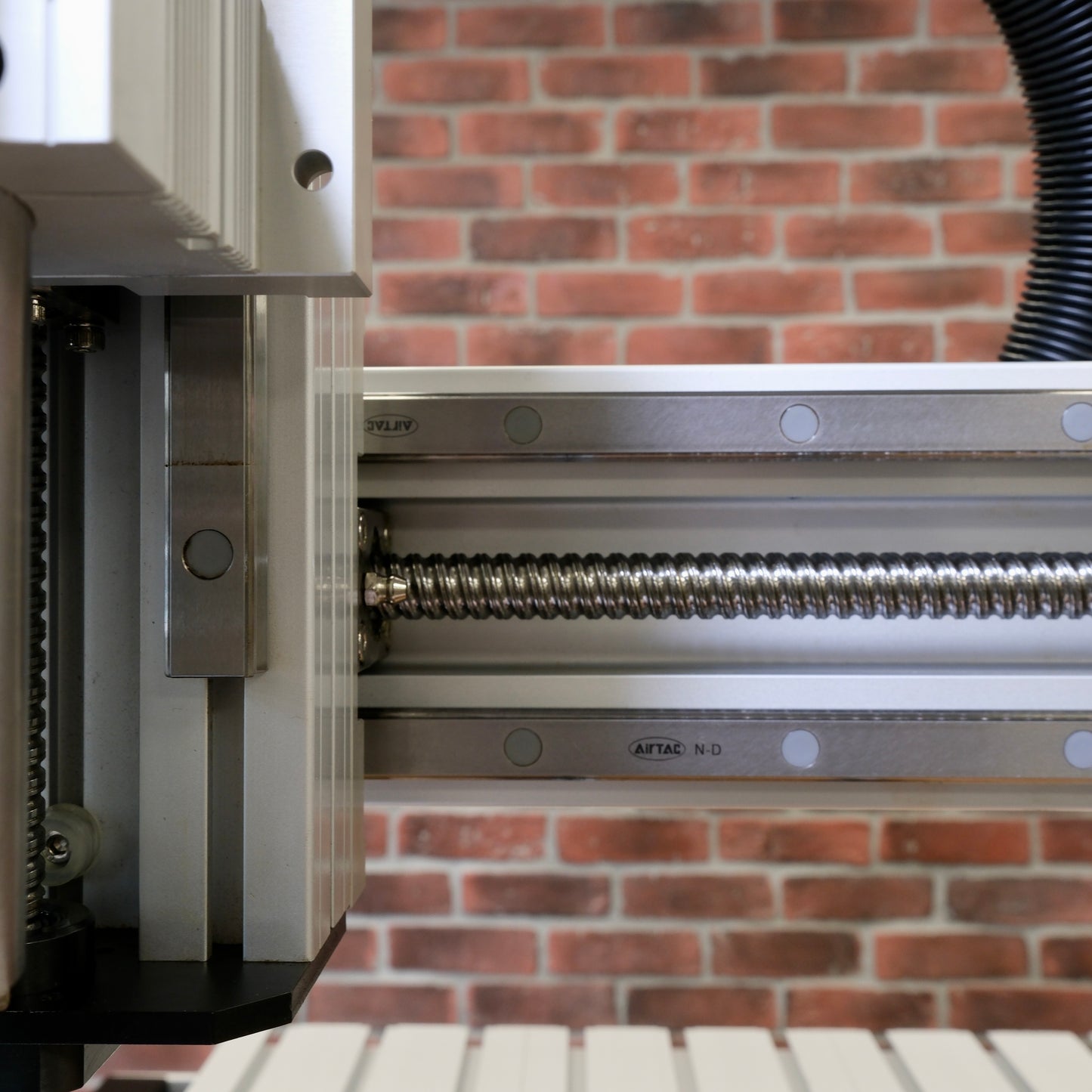

Every model in the Discovery Series features precision ball screws, linear guideways, and an industrial-grade eCNC controller with a 7″ touchscreen for easy, hands-on operation. The Discovery 1 and 2 are equipped with a 1HP spindle, while the Discovery 8 and 16 feature robust 3HP spindles, providing ample power for demanding woodworking and light production tasks. Whether you are building signs, furniture, prototypes, or passion projects, the Discovery Series is your gateway into professional-grade CNC performance – built simply.
| SKU | DISCOVERY1 |
| X-Axis Travel | 12" (305mm) |
| Y-Axis Travel | 12" (305mm) |
| Z-Axis Travel | 5.5" (140mm) |

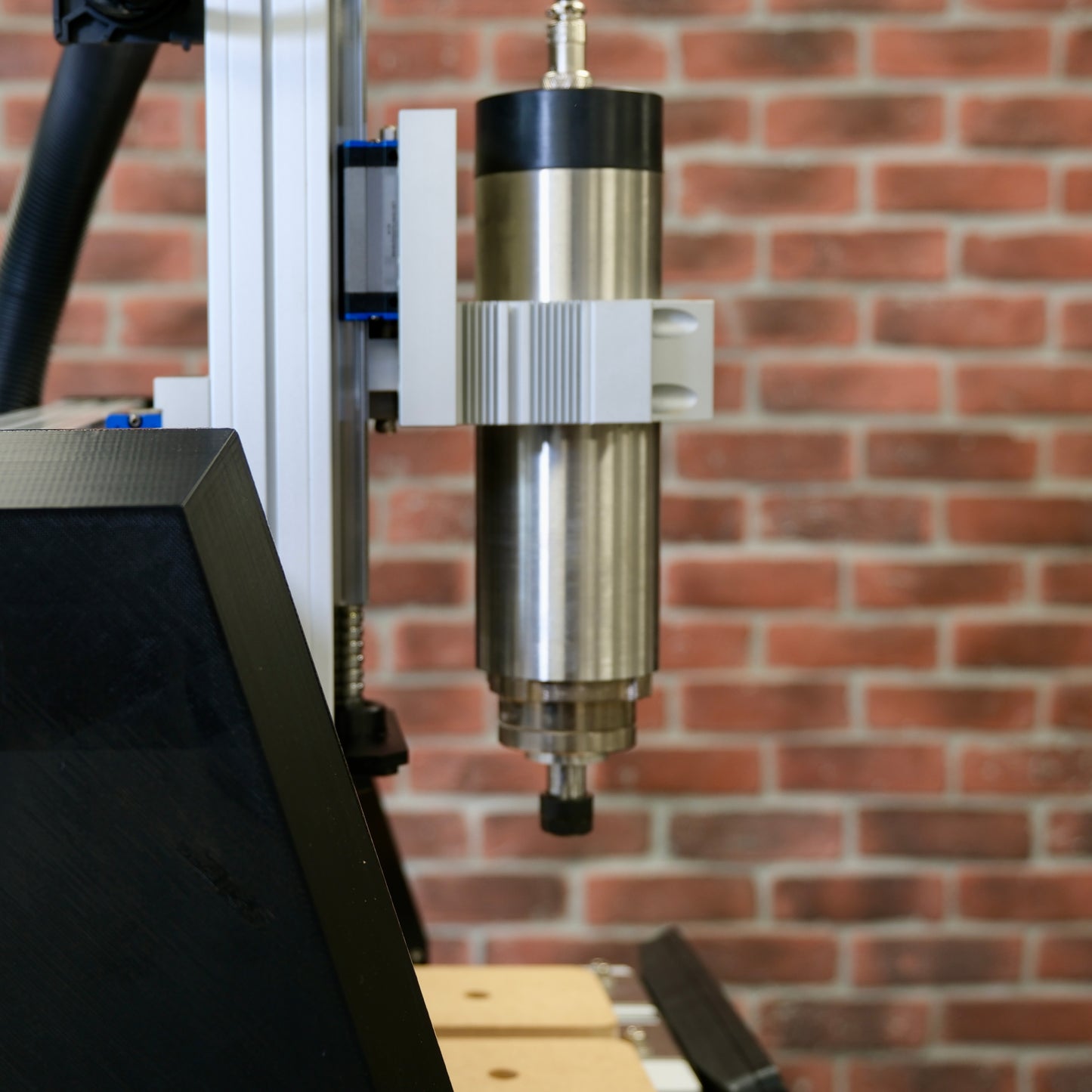

| Spindle Type | 1HP Air Cooled |
| Spindle Configuration | ER11 (1/8” & 1/4”) |
| Controller | eCNC (7” Touch Screen) |
| Rapid Feed Rate | 150ipm (3.81m/min) |
| Resolution | ± 0.00393" (0.10mm) |
| Power Requirements | AC 110V, 50-60Hz, 15A, 1-Phase (Optional 220V, 50-60Hz, 10A, 1-Phase) |
| Machine Base | High Rigidity Aluminum Extrusion |
| Working Table | High Rigidity Aluminum Extrusion |
| Gantry Bridge | High Rigidity Aluminum Extrusion |
| Gantry Supports | Steel Plate |
| Machine Dimensions | 23.76"L x 23.23"W x 28.11”H (603.5mm x 590mm x 714mm) |
| Machine Weight | |
| Shipping Dimensions | |
| Shipping Weight | |
| Accessories Included | Tool Touch-Off Puck |
| Wrench Set | |
| 1/8” Collet + 1/4” Collet | |
| Hold Down Clamps - Set of 2 (CNCHDC2) | |
