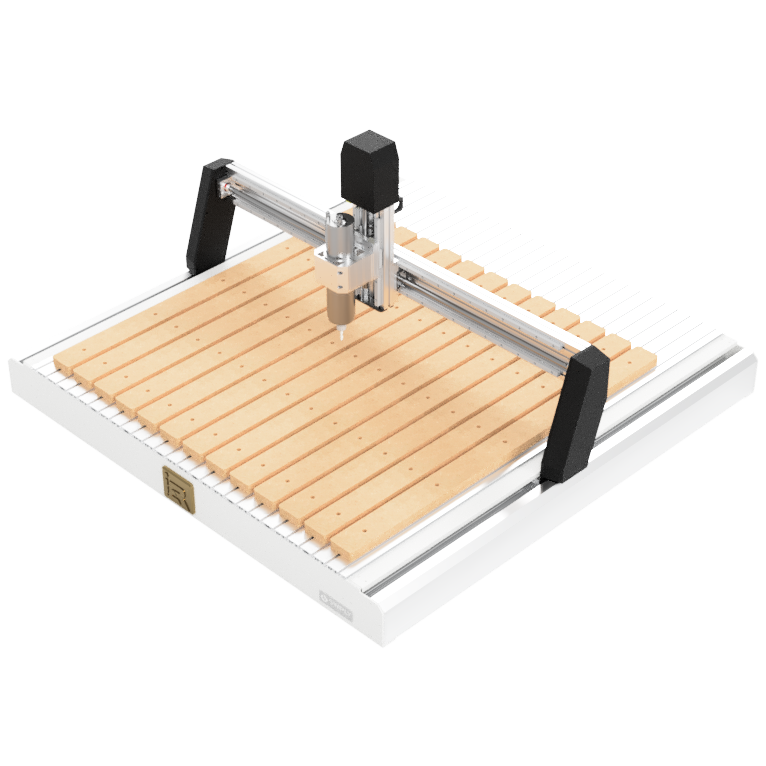

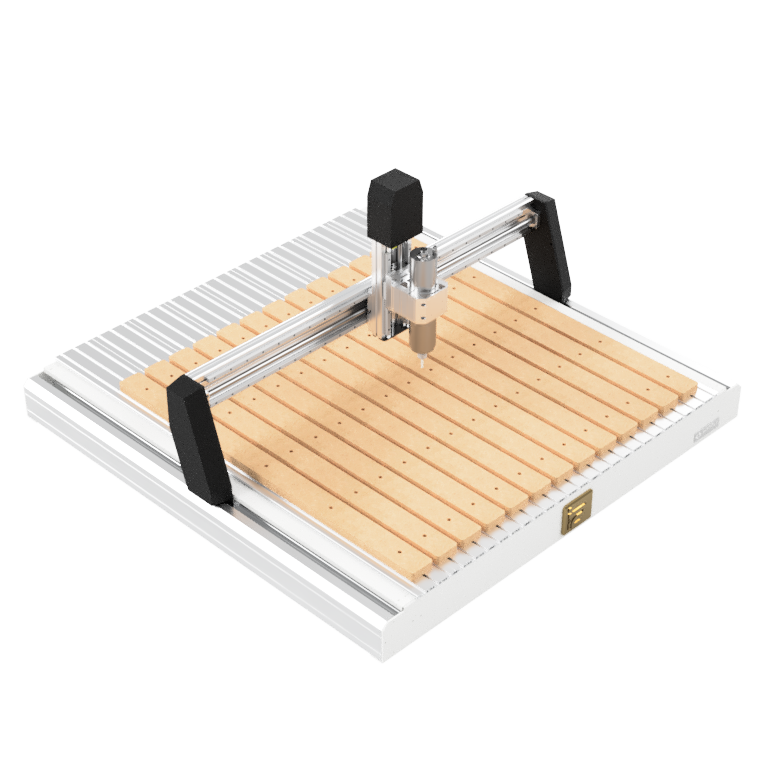

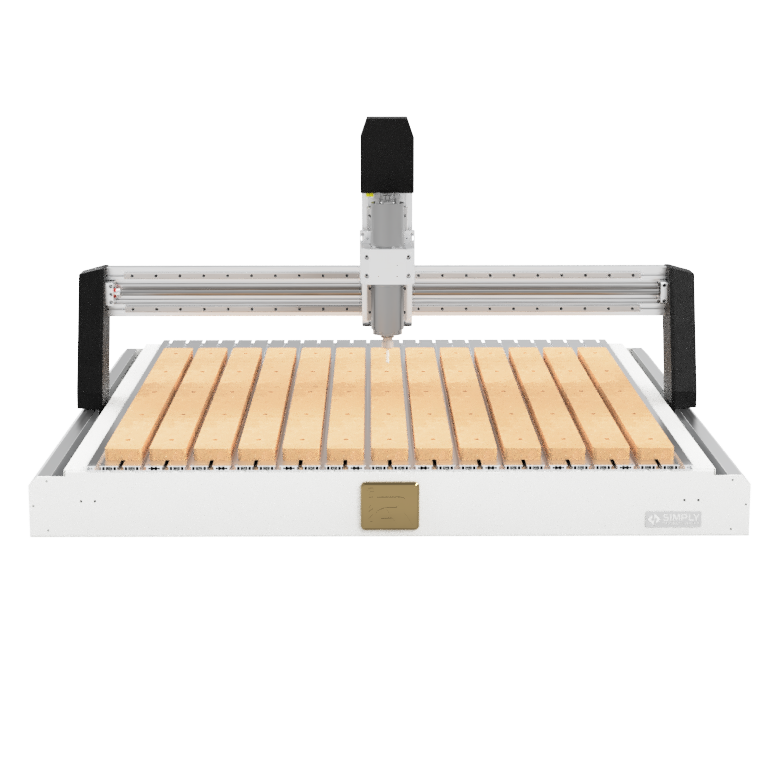

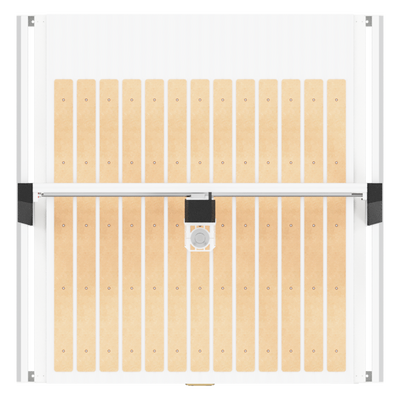

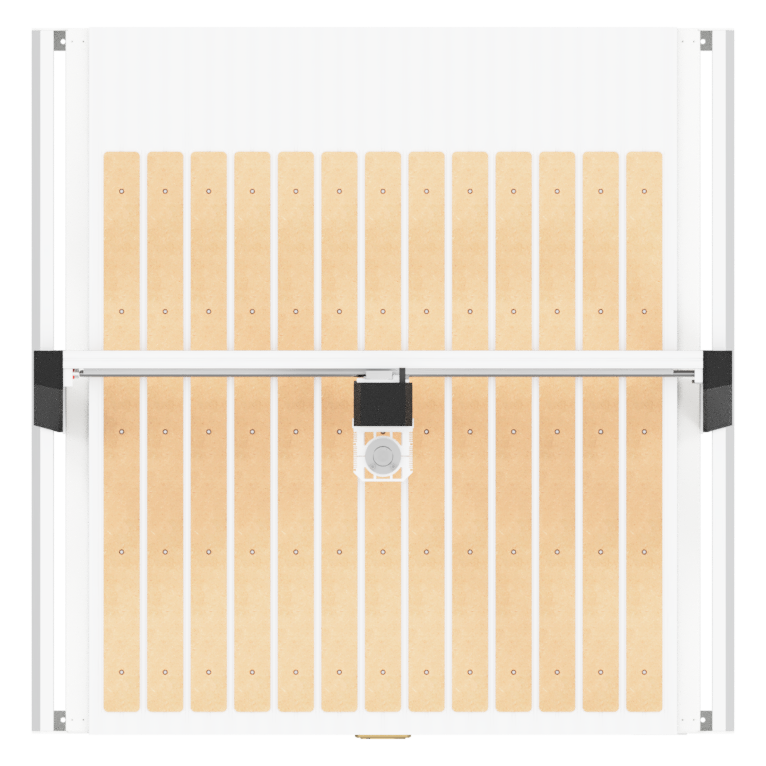

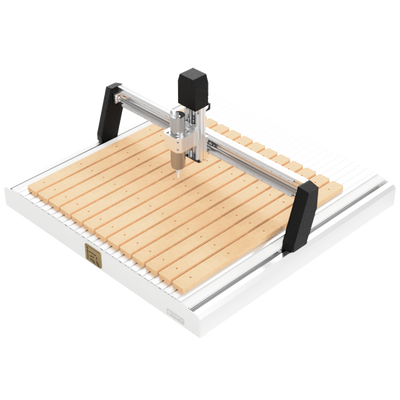

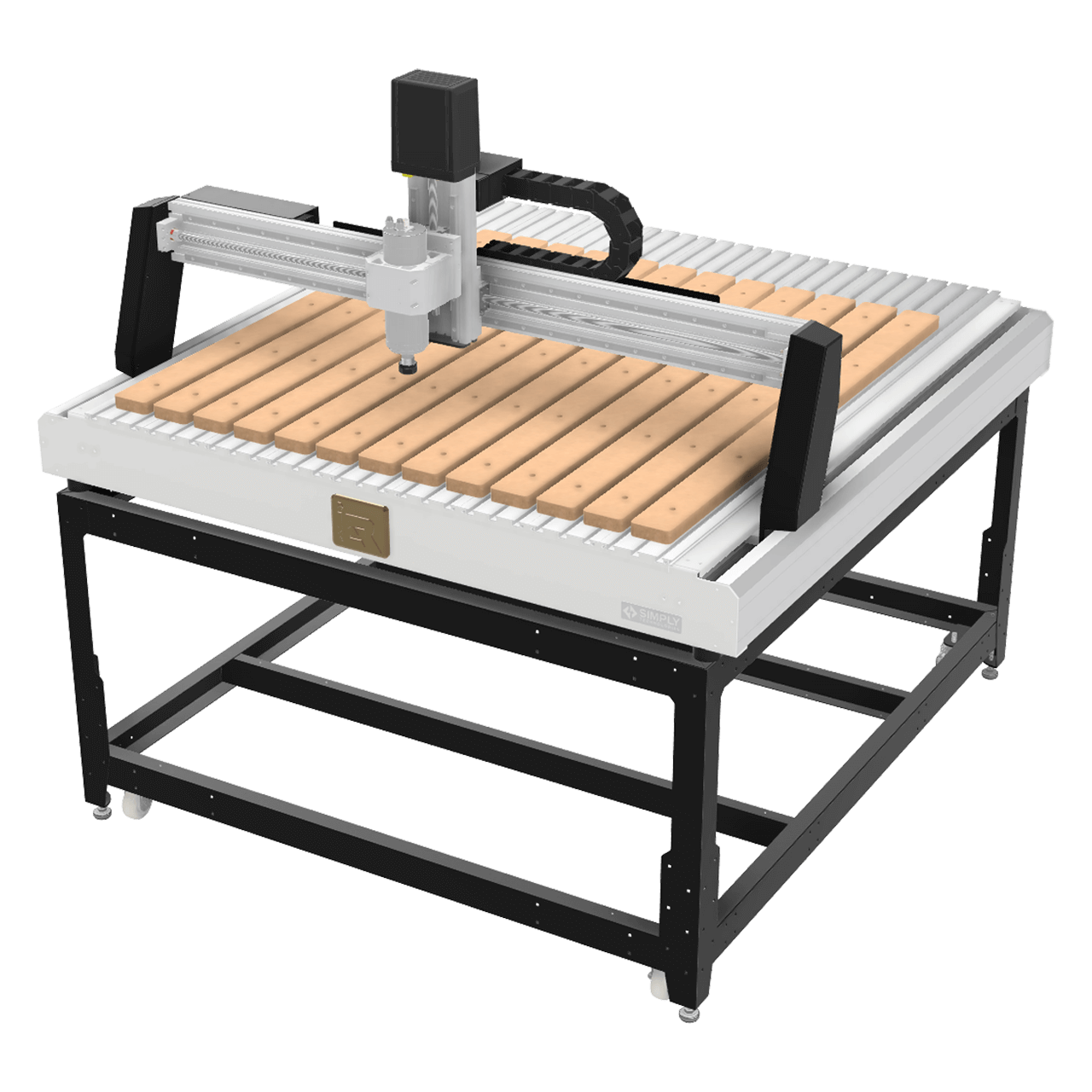

Simply Technologies - DISCOVERY 16 CNC, 48″ x 48″ - Model: DISCOVERY16
Couldn't load pickup availability
Item out of stock? - Call us and we'd be happy to reserve one for you when the next batch arrives!
Questions? - We are here to help!
Call us at 1-877-231-342
or local at 204-231-3429
*SHIPPING BEGINS MAY 2026*

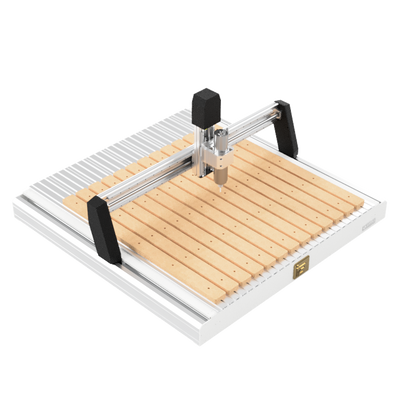

The DISCOVERY 16 delivers reliable large-format cutting power for woodworkers, fabricators, and small shops that demand both precision and value. Built on a robust 48″ × 48″ frame with rigid prismatic linear guides and a high-performance spindle, it’s engineered to handle everything from cabinetry and signage to prototype work with ease. With intuitive controls and industry-standard motion systems, the DISCOVERY 16 is the ideal platform to take your production workflow to the next level without breaking the bank.
The Discovery Series offers a powerful and reliable CNC solution for creators, educators, and small businesses looking to take their digital fabrication to the next level. Our Discovery lineup includes five distinct models: Discovery 1 (12″ x 12″), Discovery 2 (24″ x 12″), Discovery 8 (24″ x 48″), and Discovery 16 (48″ x 48″).
Every model in the Discovery Series features precision ball screws, linear guideways, and an industrial-grade eCNC controller with a 7″ touchscreen for easy, hands-on operation. The Discovery 1 and 2 are equipped with a 1HP spindle, while the Discovery 8 and 16 feature robust 3HP spindles, providing ample power for demanding woodworking and light production tasks. Whether you are building signs, furniture, prototypes, or passion projects, the Discovery Series is your gateway into professional-grade CNC performance – built simply.
| X-Axis Travel | 48" (1220mm) |
| Y-Axis Travel | 48" (1220mm) |
| Z-Axis Travel | 7.87” (200mm) |
| Spindle Type | 3HP Water Cooled |
| Spindle Configuration | ER20 (1/4” & 1/2”) |
| Controller | eCNC (7” Touch Screen) |
| Rapid Feed Rate | 150ipm (3.81m/min) |
| Resolution | ± 0.00393" (0.10mm) |
| Power Requirements | 220V, 50-60Hz, 10A, 1-Phase |
| Machine Base | High Rigidity Aluminum Extrusion |
| Working Table | High Rigidity Aluminum Extrusion |
| Gantry Bridge | High Rigidity Aluminum Extrusion |
| Gantry Supports | Steel Plate |
| Machine Dimensions | 63.13” L x 61.02” W x 33.64” H (1603.5mm x 1550mm x 854.5mm) |
| Machine Weight | |
| Shipping Dimensions | |
| Shipping Weight | |
| Accessories Included | Tool Touch-Off Puck |
| Wrench Set | |

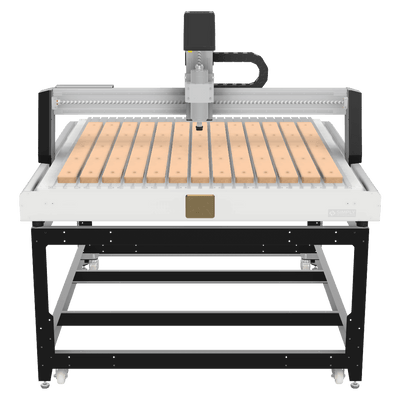

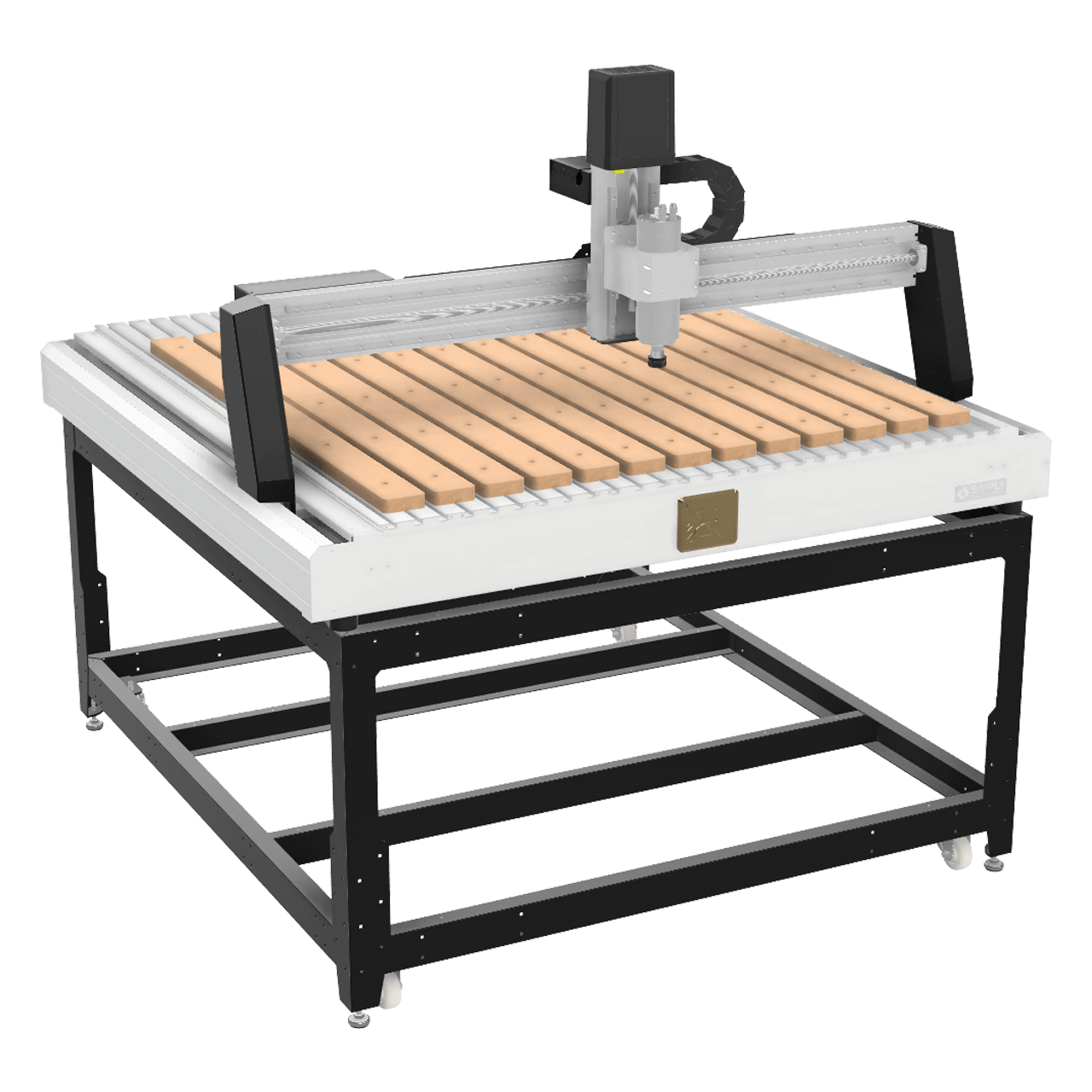

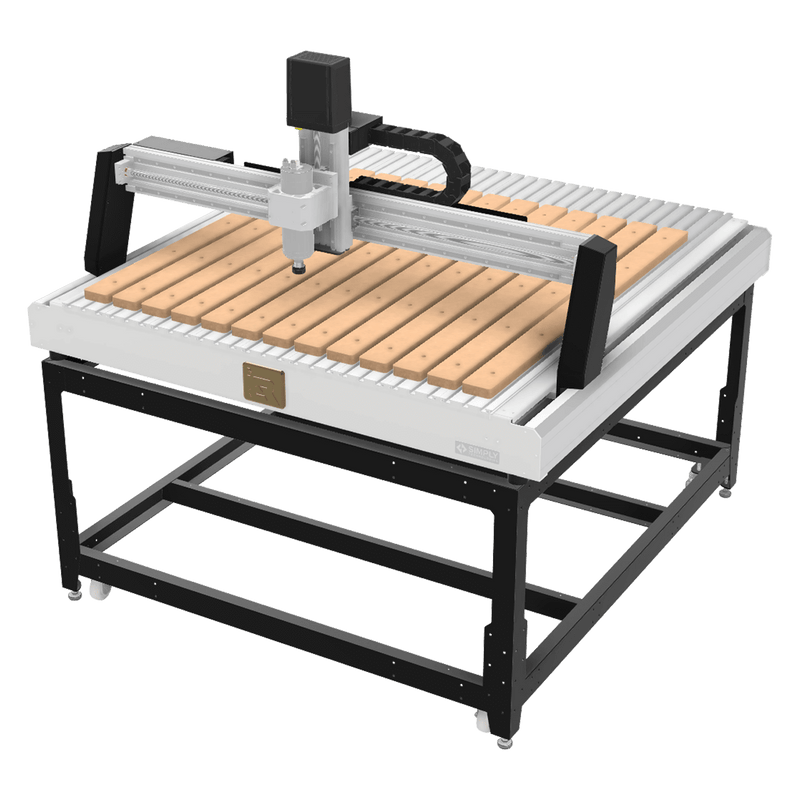

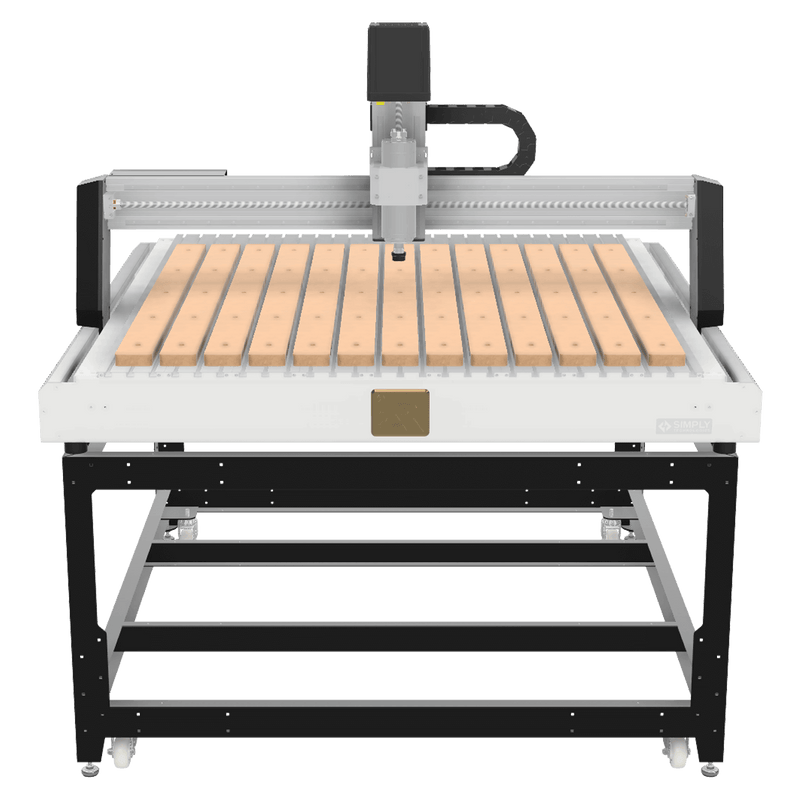

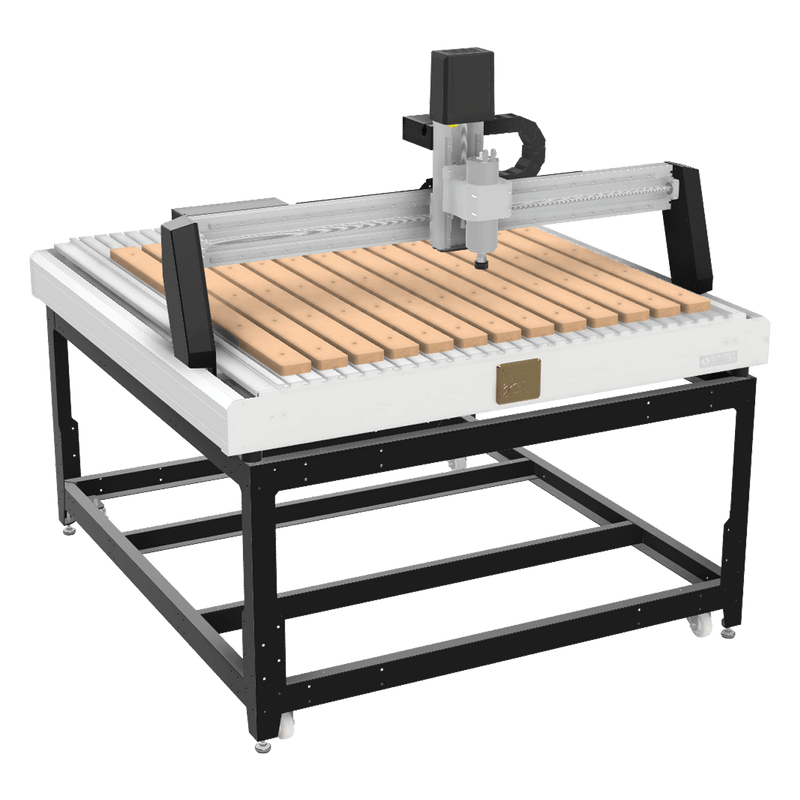

| DISCOVERY 16 Stand | |
| 1/4” Collet + 1/2” Collet | |
| Hold Down Clamps - Set of 2 (CNCHDC2) |
