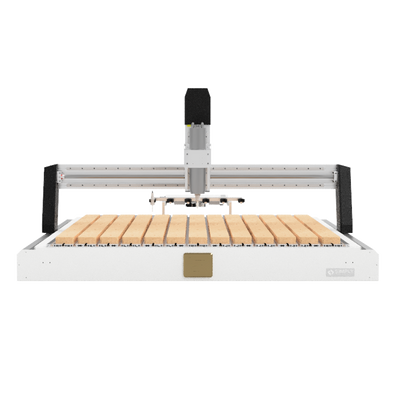

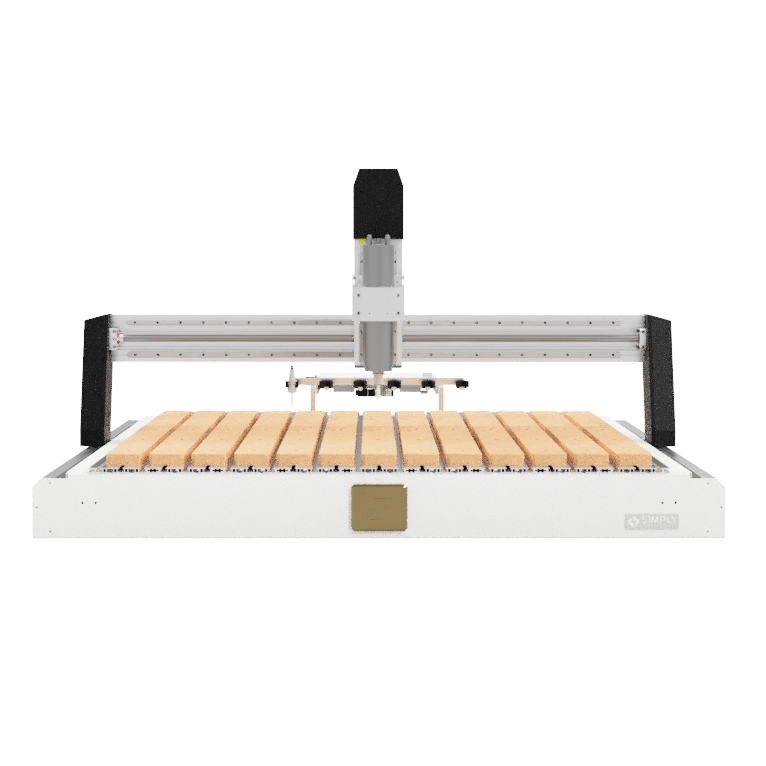

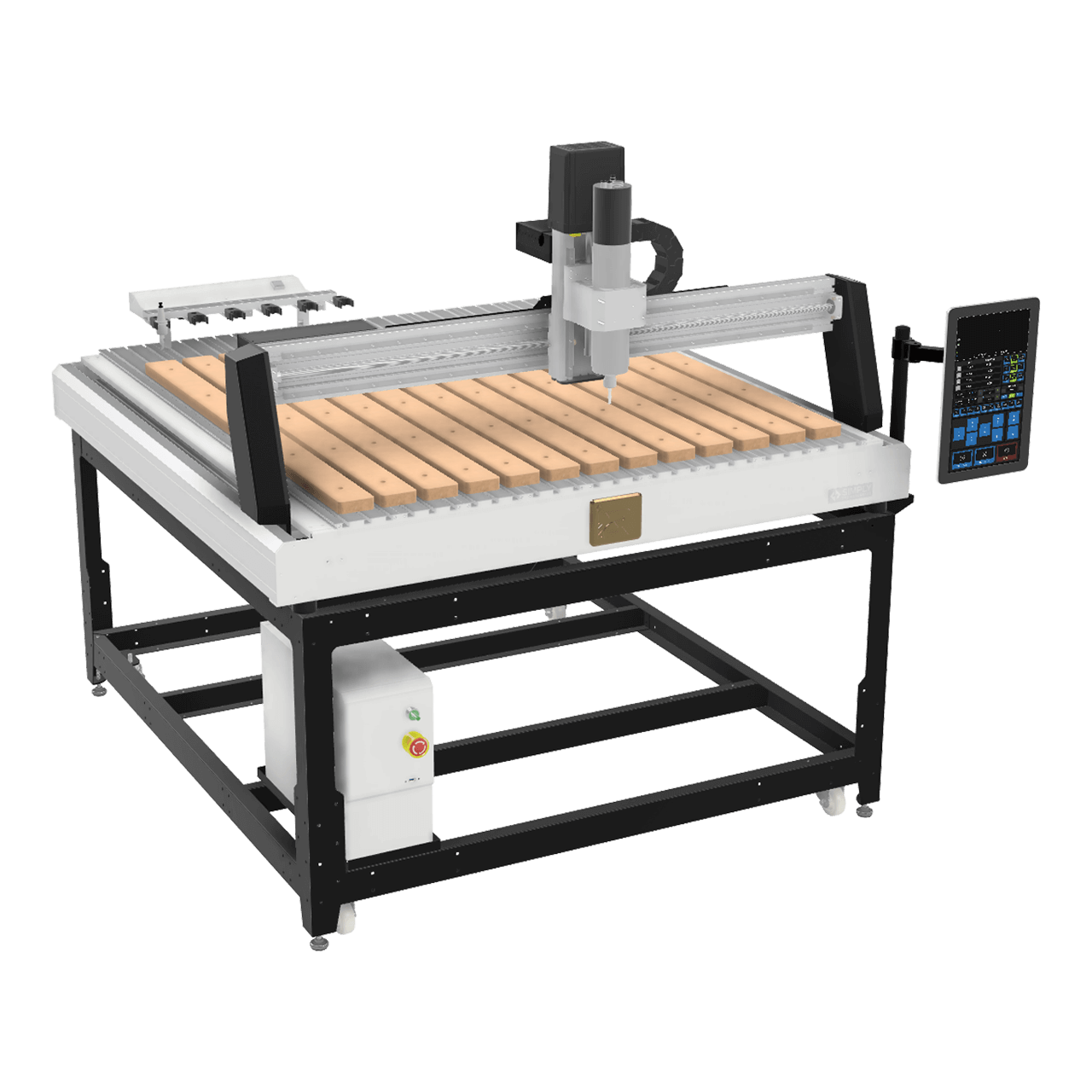

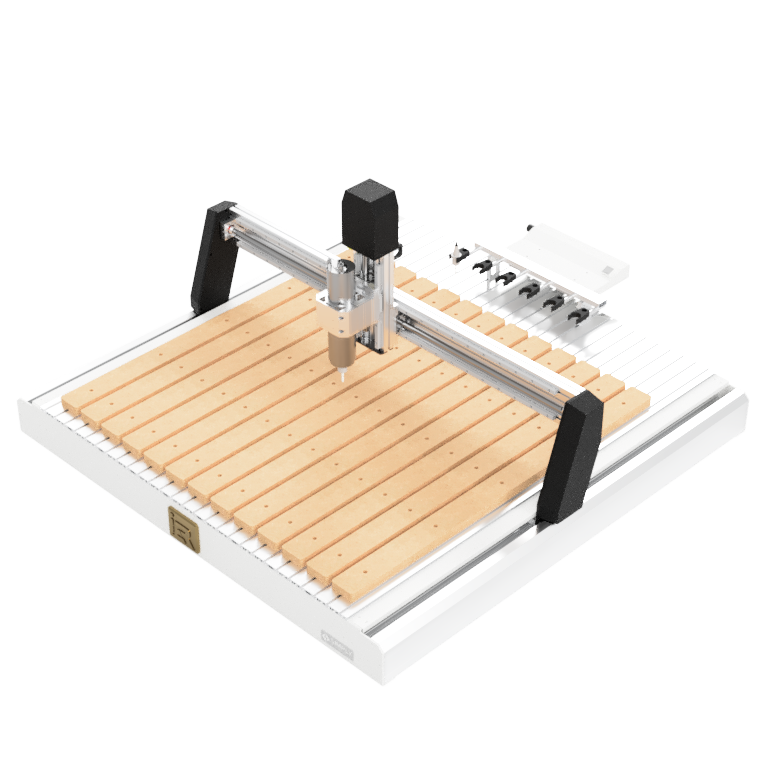

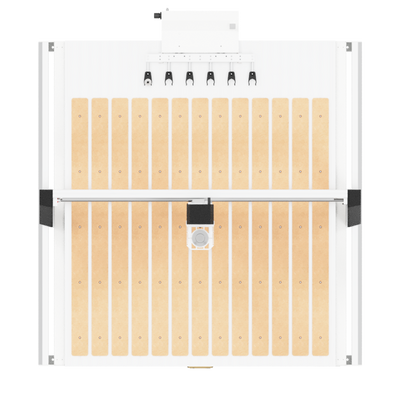

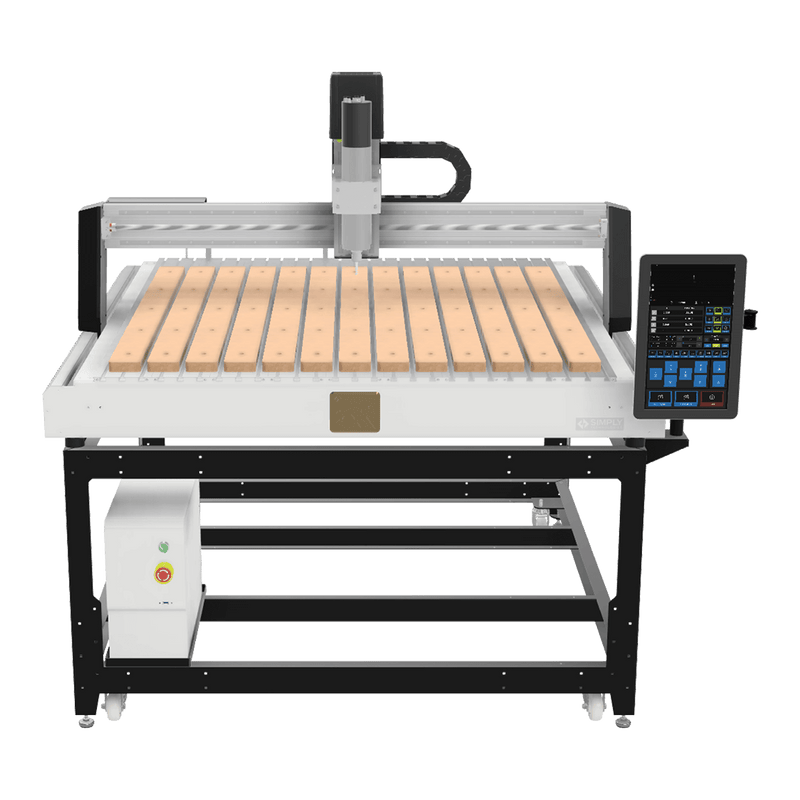

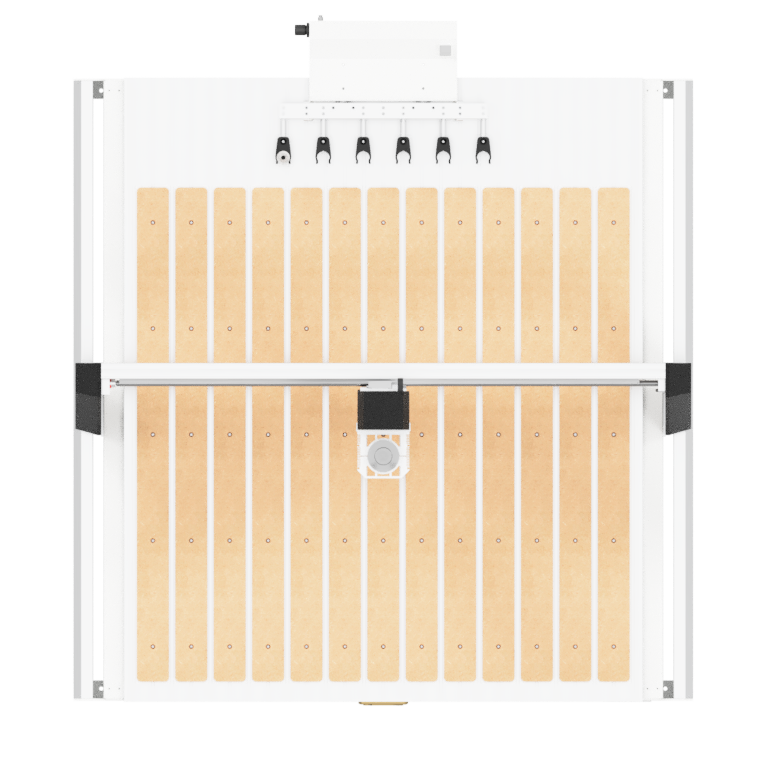

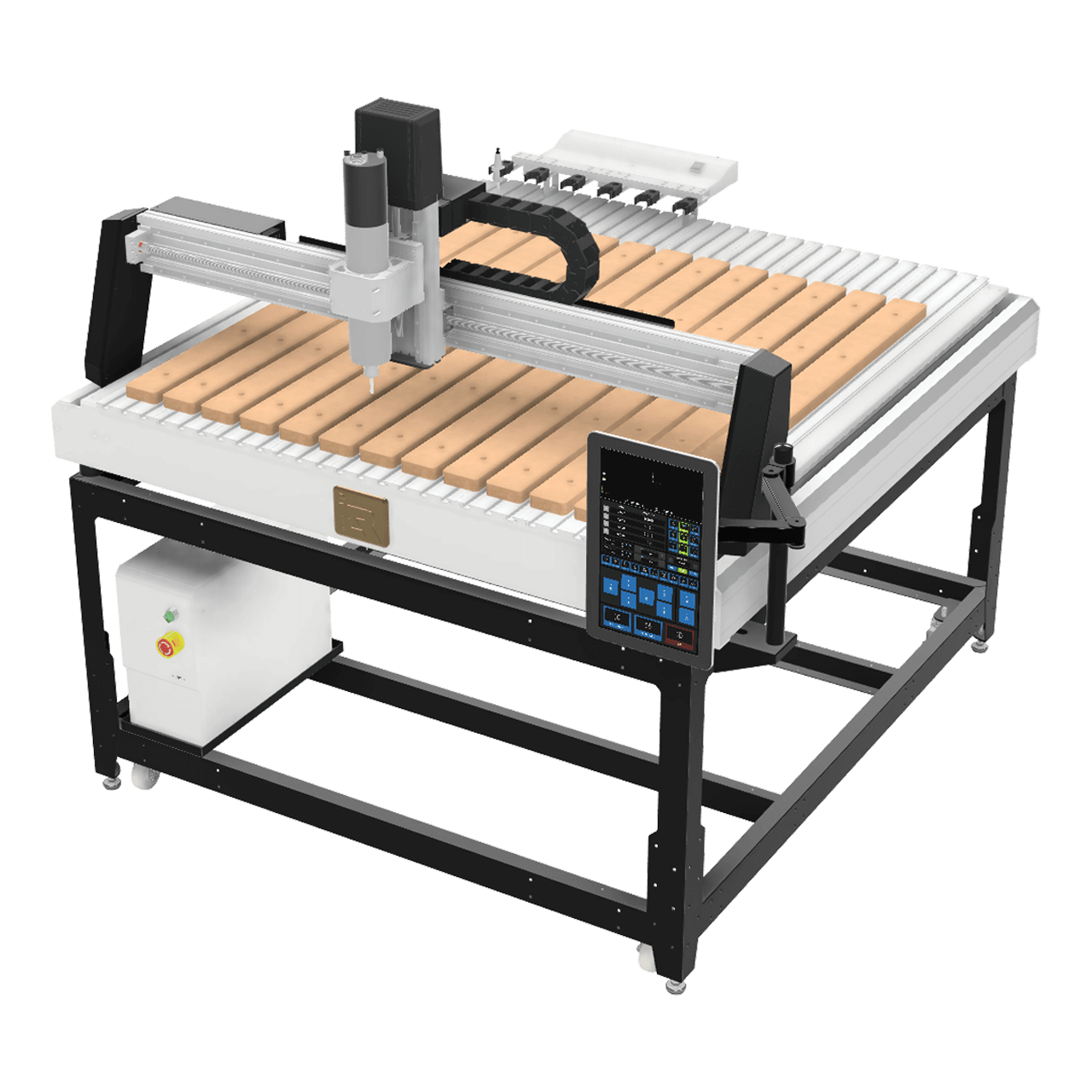

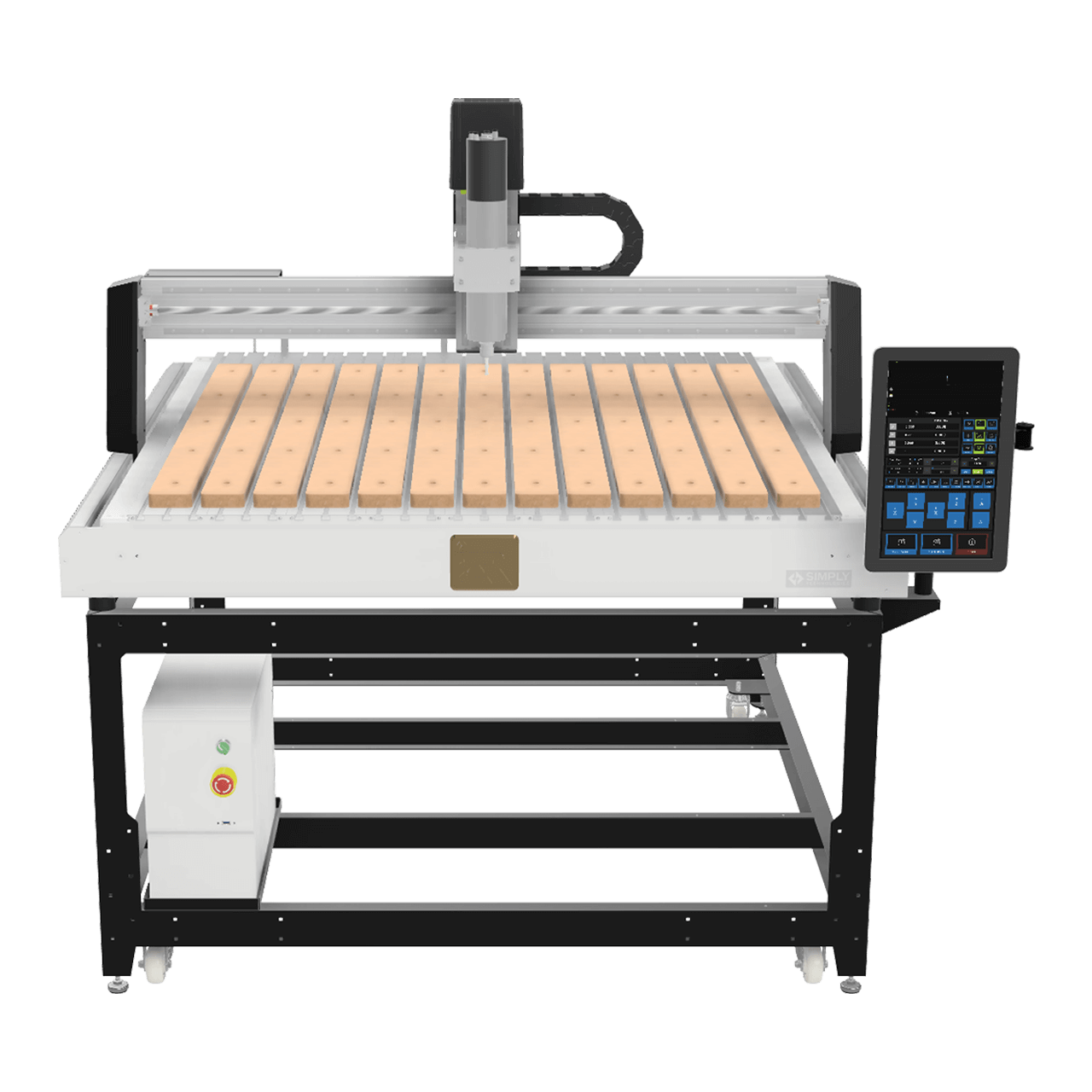

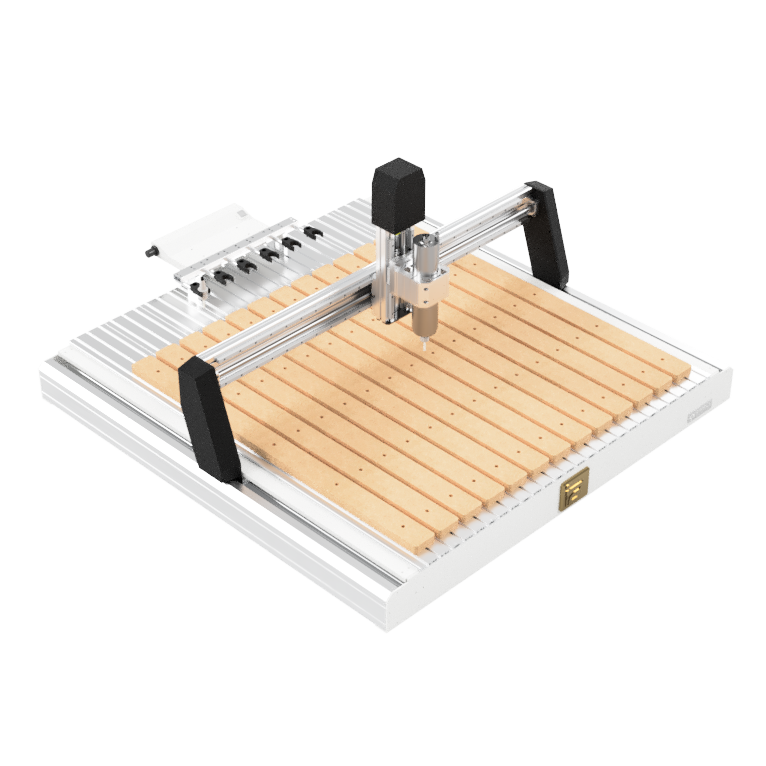

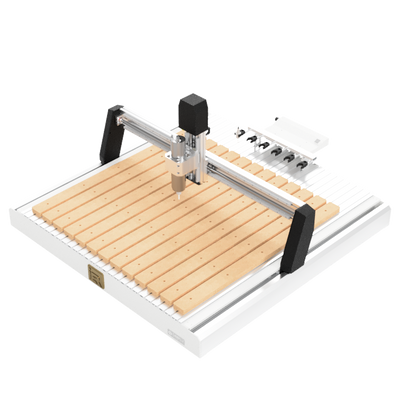

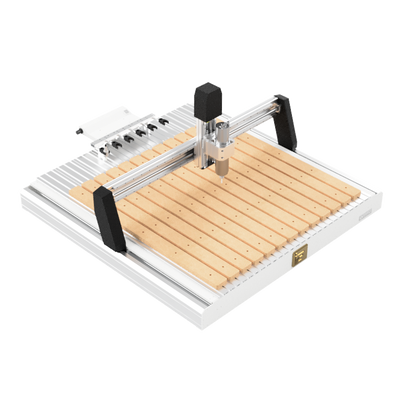

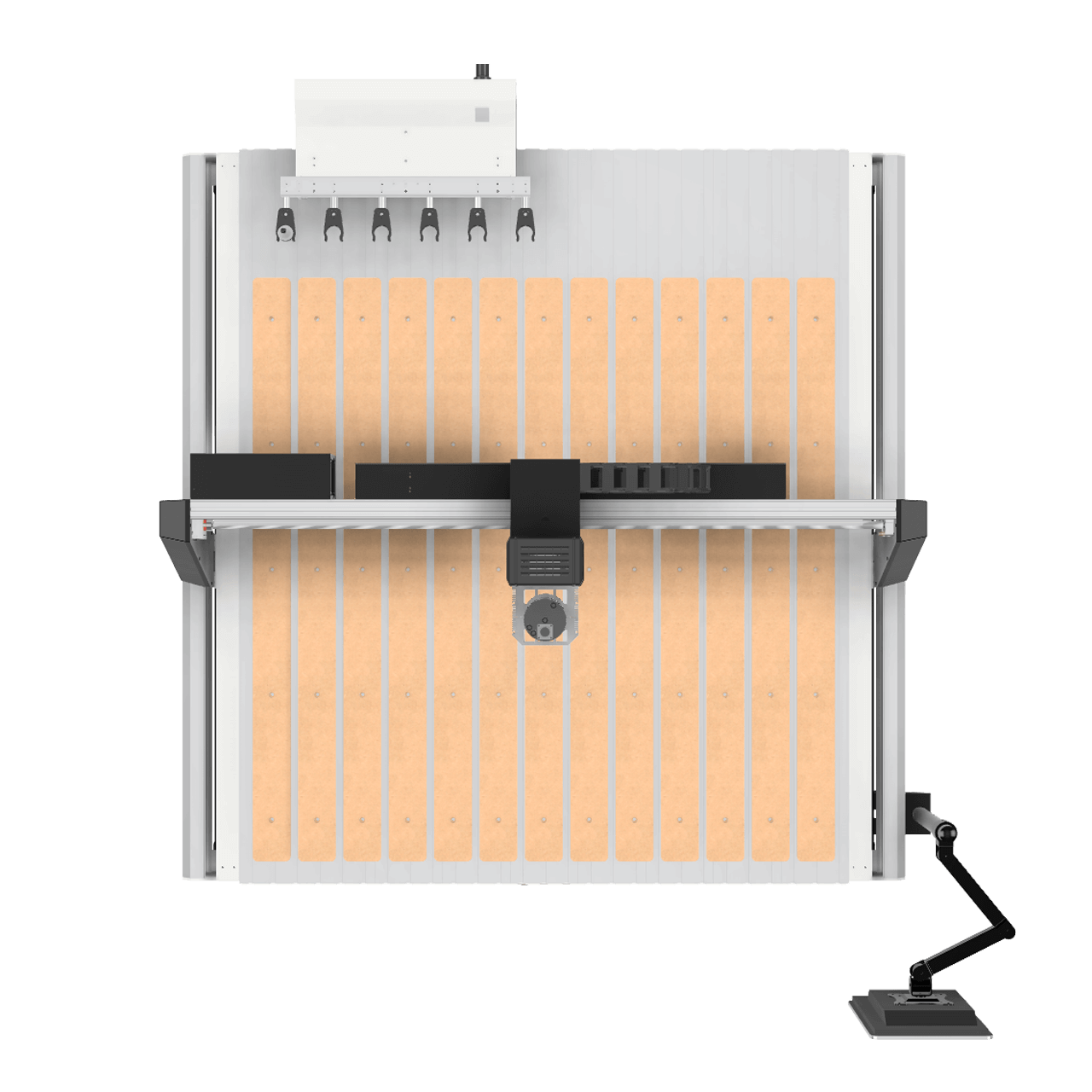

Simply Technologies - DISCOVERY 16ATC CNC with Automatic Tool Changer, 48″ x 48″ - Model: DISCOVERY16ATC
Couldn't load pickup availability
Item out of stock? - Call us and we'd be happy to reserve one for you when the next batch arrives!
Questions? - We are here to help!
Call us at 1-877-231-342
or local at 204-231-3429
*SHIPPING BEGINS MAY 2026*
Unlock automated precision for big-format projects with the DISCOVERY 16ATC. Built on the proven 48″ × 48″ Discovery platform, this model adds a six-position automatic tool changer to drastically cut downtime and eliminate manual tool swaps – ideal for furniture, signage, cabinet making, and production work. It combines rigid prismatic guides, an industrial-grade iCNC controller with wireless file transfer, and a powerful 3HP water-cooled spindle to deliver reliable performance at a disruptive price point. Automation meets value for woodworkers, makers, and small shops ready to level up their workflow.
The Discovery Series offers a powerful and reliable CNC solution for creators, educators, and small businesses looking to take their digital fabrication to the next level. Our Discovery lineup includes five distinct models: Discovery 1 (12″ x 12″), Discovery 2 (24″ x 12″), Discovery 8 (24″ x 48″), and Discovery 16 (48″ x 48″).
Every model in the Discovery Series features precision ball screws, linear guideways, and an industrial-grade eCNC controller with a 7″ touchscreen for easy, hands-on operation. The Discovery 1 and 2 are equipped with a 1HP spindle, while the Discovery 8 and 16 feature robust 3HP spindles, providing ample power for demanding woodworking and light production tasks. Whether you are building signs, furniture, prototypes, or passion projects, the Discovery Series is your gateway into professional-grade CNC performance – built simply.
| X-Axis Travel | 48" (1220mm) |
| Y-Axis Travel | 48" (1220mm) |
| Z-Axis Travel | 7.87” (200mm) |
| Spindle Type | 3HP ATC Water Cooled |
| Spindle Configuration | ISO20 ATC (1/4” & 1/2”) |
| Controller | iCNC (15.6” Touch Screen) |
| Rapid Feed Rate | 150ipm (3.81m/min) |
| Resolution | ± 0.00393" (0.10mm) |
| Power Requirements | 220V, 50-60Hz, 10A, 1-Phase |
| Machine Base | High Rigidity Aluminum Extrusion |
| Working Table | High Rigidity Aluminum Extrusion |
| Gantry Bridge | High Rigidity Aluminum Extrusion |
| Gantry Supports | Steel Plate |
| Machine Dimensions | 63.13” L x 61.02” W x 33.64” H (1603.5mm x 1550mm x 854.5mm) |
| Machine Weight | |
| Shipping Dimensions | |
| Shipping Weight | |
| Accessories Included | Tool Touch-Off Puck |
| Wrench Set | |

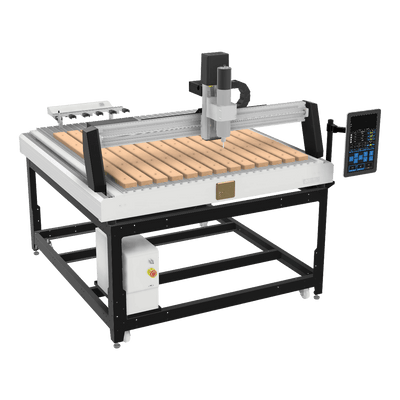

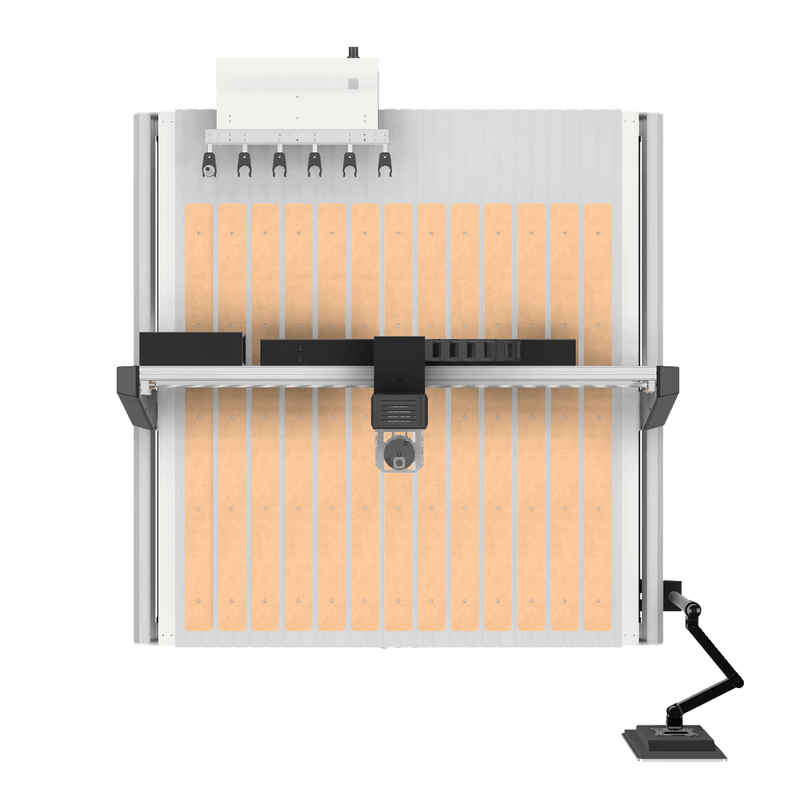

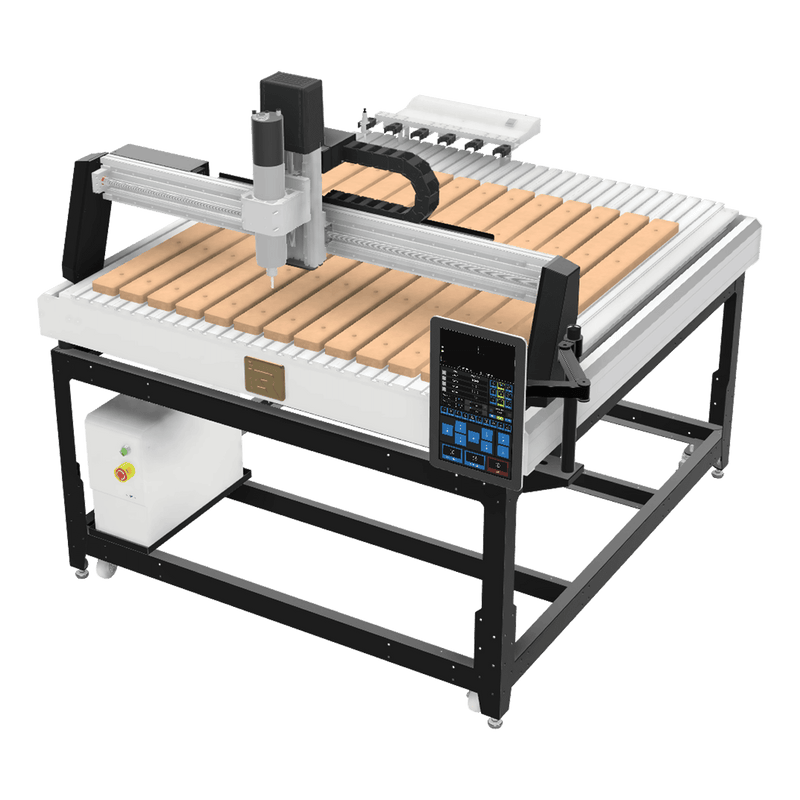

| DISCOVERY 16 Stand | |
| 1/4” Collet + 1/2” Collet | |
| Hold Down Clamps - Set of 2 (CNCHDC2) |
