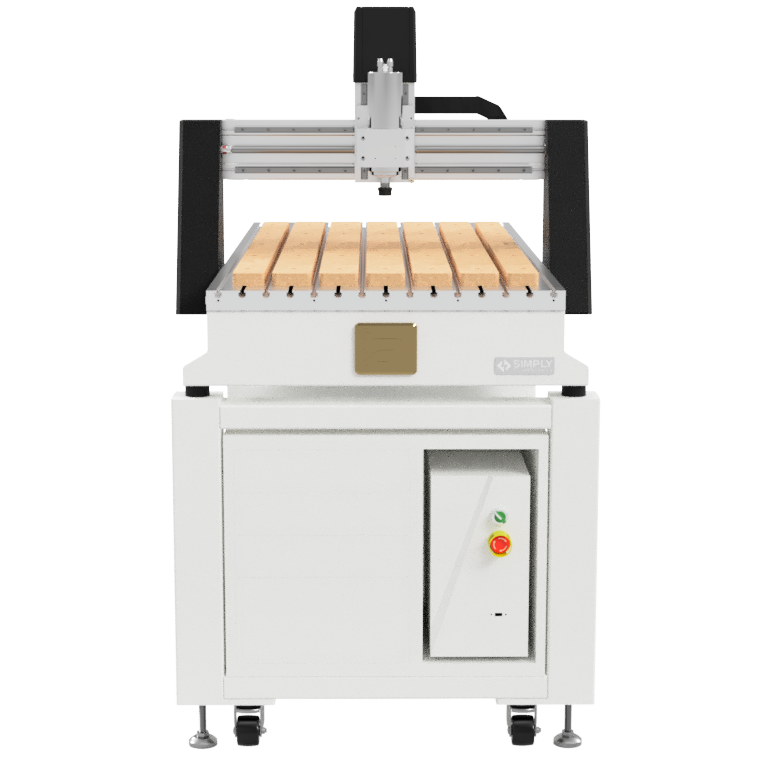

Simply Technologies - PERFORMANCE 8 CNC, 24″ x 48″ - Model: PERF8
Couldn't load pickup availability
Item out of stock? - Call us and we'd be happy to reserve one for you when the next batch arrives!
Questions? - We are here to help!
Call us at 1-877-231-342
or local at 204-231-3429

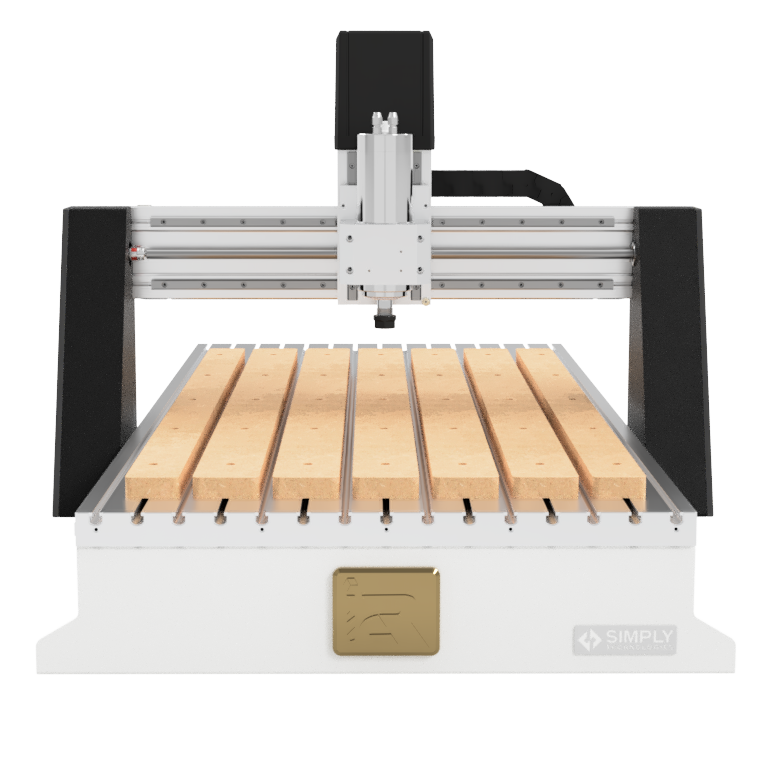

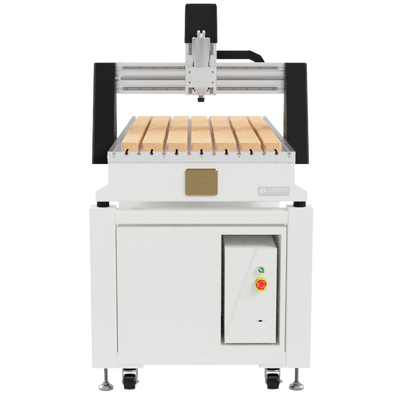

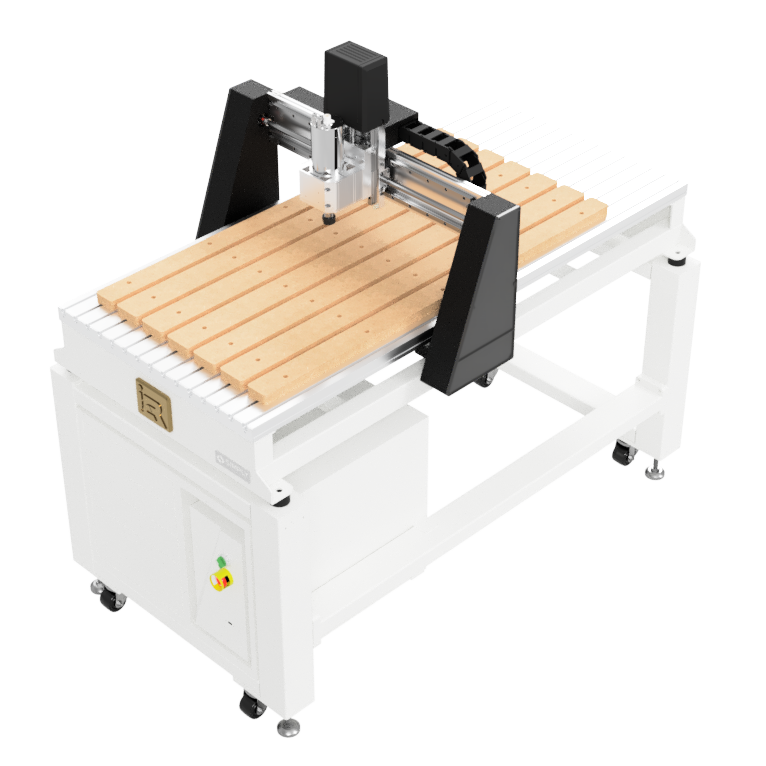

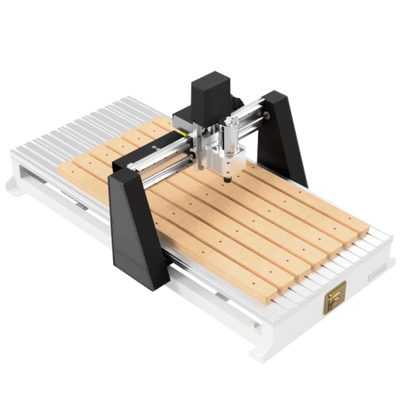

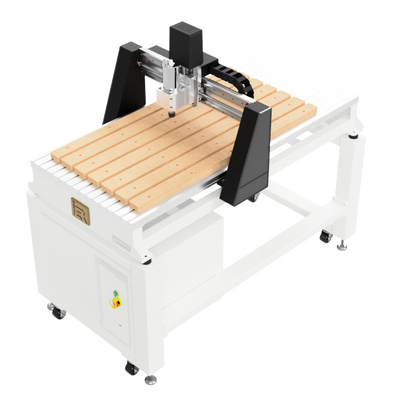

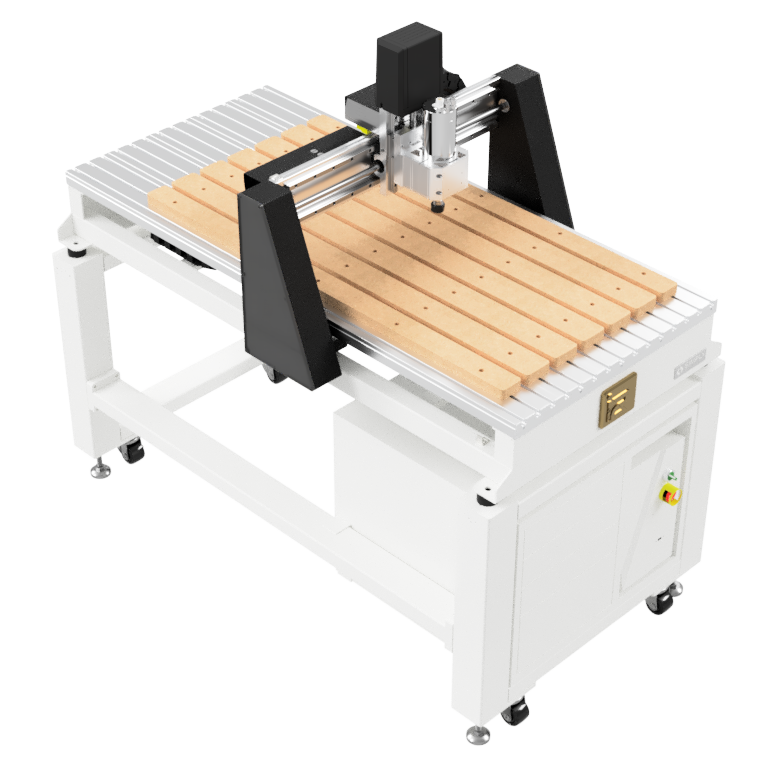

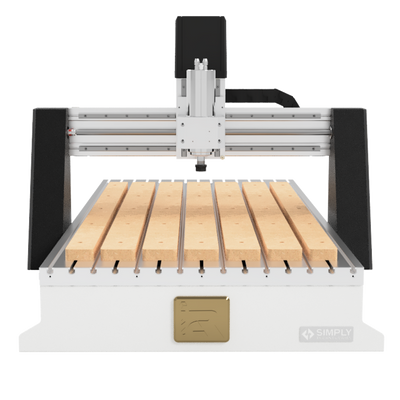

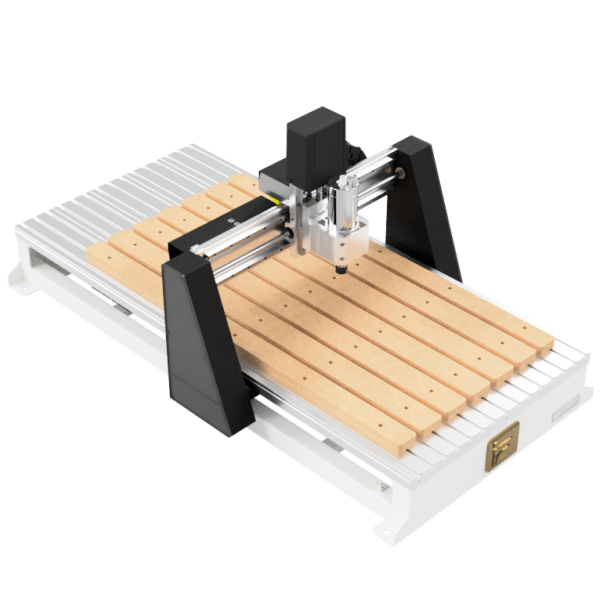

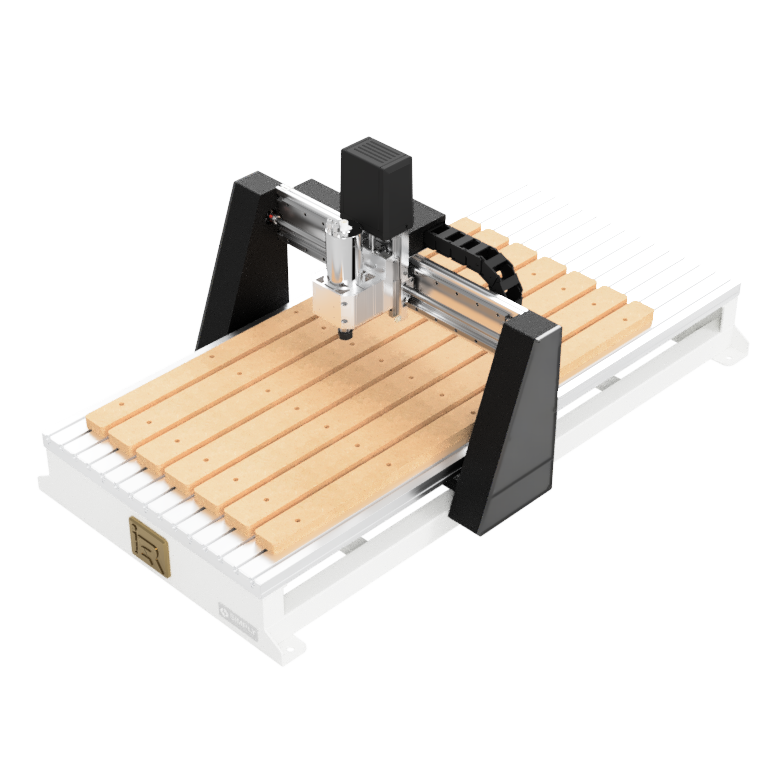

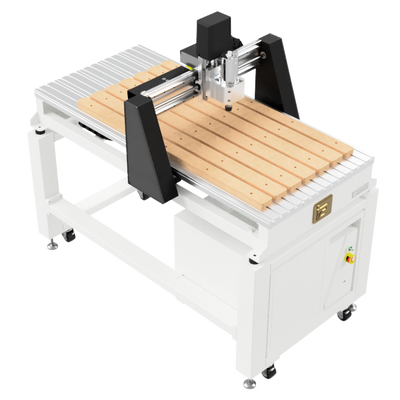

The PERFORMANCE 8 is a full-size production CNC with a 24″ × 48″ work area, built for shops that need industrial strength without industrial complexity. It features the iCNC controller with a 15.6″ touchscreen, delivering wireless file transfer, intuitive operation, and seamless machine control. Powered by a 3HP water-cooled spindle and supported by a welded steel frame with precision motion components, the PERFORMANCE 8 excels at cabinetry, furniture parts, signage, and daily commercial workflows.
The Performance Series CNC machines are engineered for precision, power, and versatility, making them the ideal choice for small manufacturers, professional woodworkers, and advanced hobbyists. Featuring 4-axis capability and rotary machining, this series is designed to handle complex, high-precision cutting applications with ease.
Each Performance Series machine is built on a rigid, all-welded steel frame and equipped with precision ball screws, prismatic guides, and a high-clearance gantry for smooth and accurate motion. The 3HP electro-spindle with integrated liquid cooling ensures consistent performance, reduced wear, and quiet operation, while the prewired rotary kit option allows for expanded 3D machining capabilities.
The Performance Series is powered by an iCNC Controller, featuring an advanced 15.6” touch screen interface, real-time visual toolpath display, and remote machine operation from any Android device, enhancing user experience and efficiency.
With four available footprint options (24” x 36”, 24” x 48”, 48″ x 24″, 48″ x 48″) and optional Auto Tool Changer, the Performance Series CNC machines provide the ideal balance of size and power, making them perfect for demanding projects requiring superior accuracy and reliability. The integrated MDF spoil board can be milled flat, ensuring a true perpendicular cutting surface, essential for precision work.
For those seeking industrial performance in a compact format, the Performance Series CNC is the ultimate solution.
| X Axis Travel | 24″ (610mm) |
| Y Axis Travel | 47.63″ (1210mm) |
| Z Axis Travel | 5.9″ (150mm) |
| Table Work Area | 24″ x 48″ |
| Spindle Type | 3HP Water Cooled |
| Spindle Configuration | ER20 (1/4″ & 1/2″) |
| Controller | iCNC |
| On-Board Memory | Yes |
| Rapid Feed Rate | 300ipm (5m/min) |
| Tool Touch-Off | Included |
| Onboard Cooling | Included |
| Machine Base | Welded Steel |
| Rotary Axis | Yes |
| Resolution | ± 0.00393″ (0.10mm) |
| Precision Linear Guides | X / Y / Z |
| Precision Ball Screw Transmission | X / Y / Z |
| Power Requirements | 220V, 50-60Hz, 10A, 1-Phase |
| Working Table | High Rigidity Aluminum Extrusion |
| Gantry Bridge | High Rigidity Aluminum Extrusion |
| Gantry Supports | Aluminum Alloy Gravity Cast |
| Max Gantry Clearance | 6.5″ (165.1mm) |
| Clearance Above Spoil Board | 5.5″ (139.7mm) |
| Machine Dimensions | 62.99″ L x 37.36″ W x 30.27″ H |
