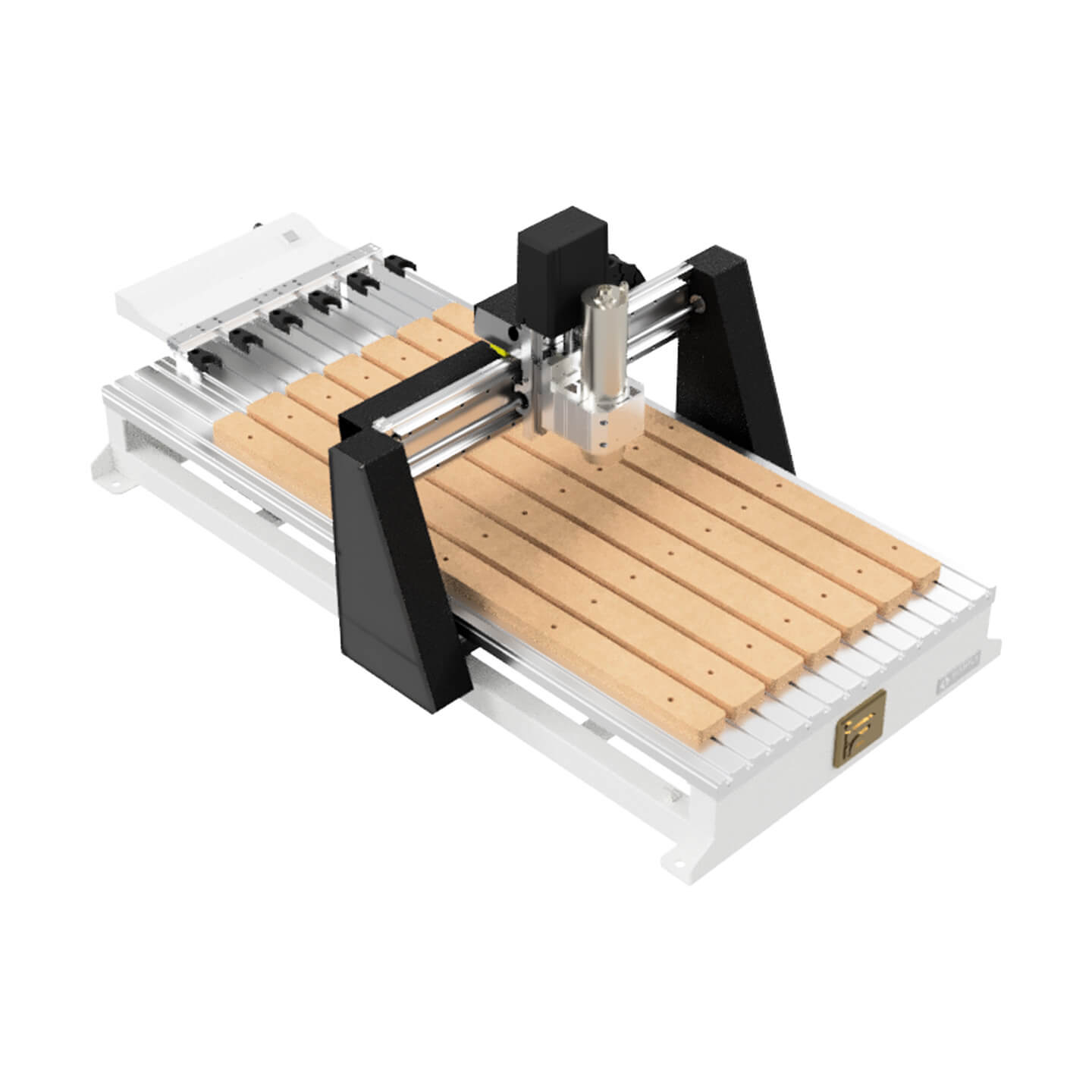

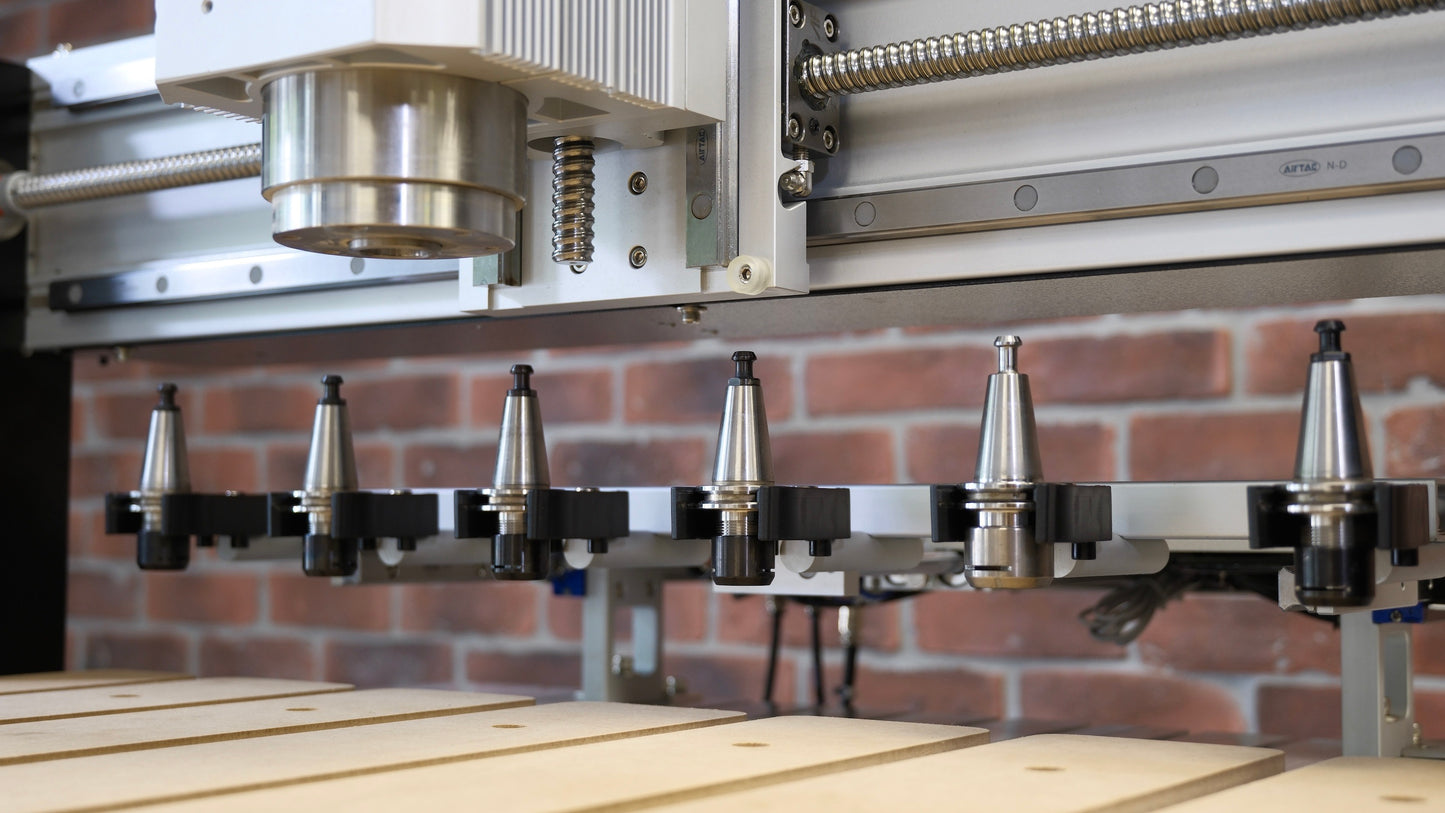

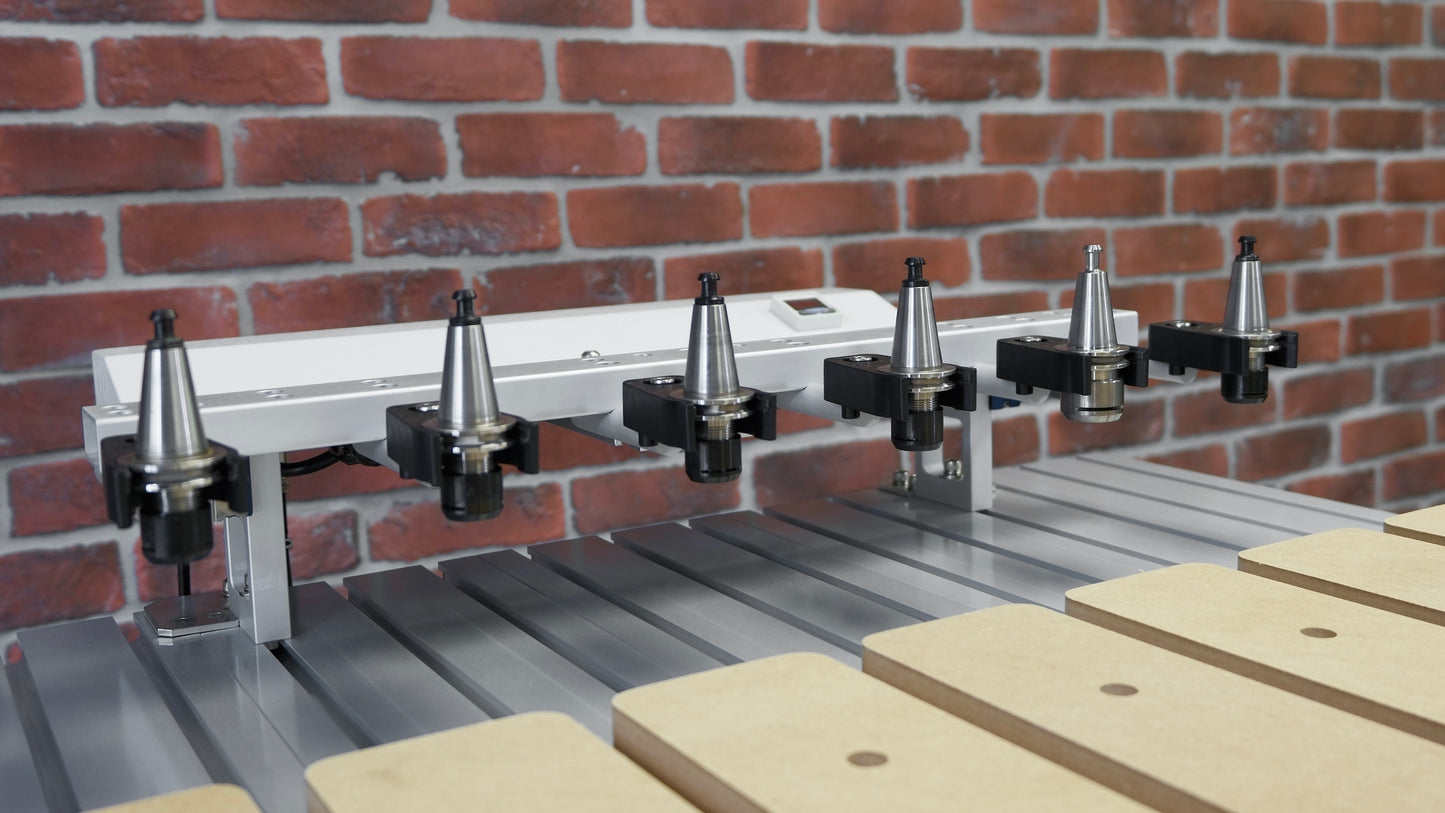

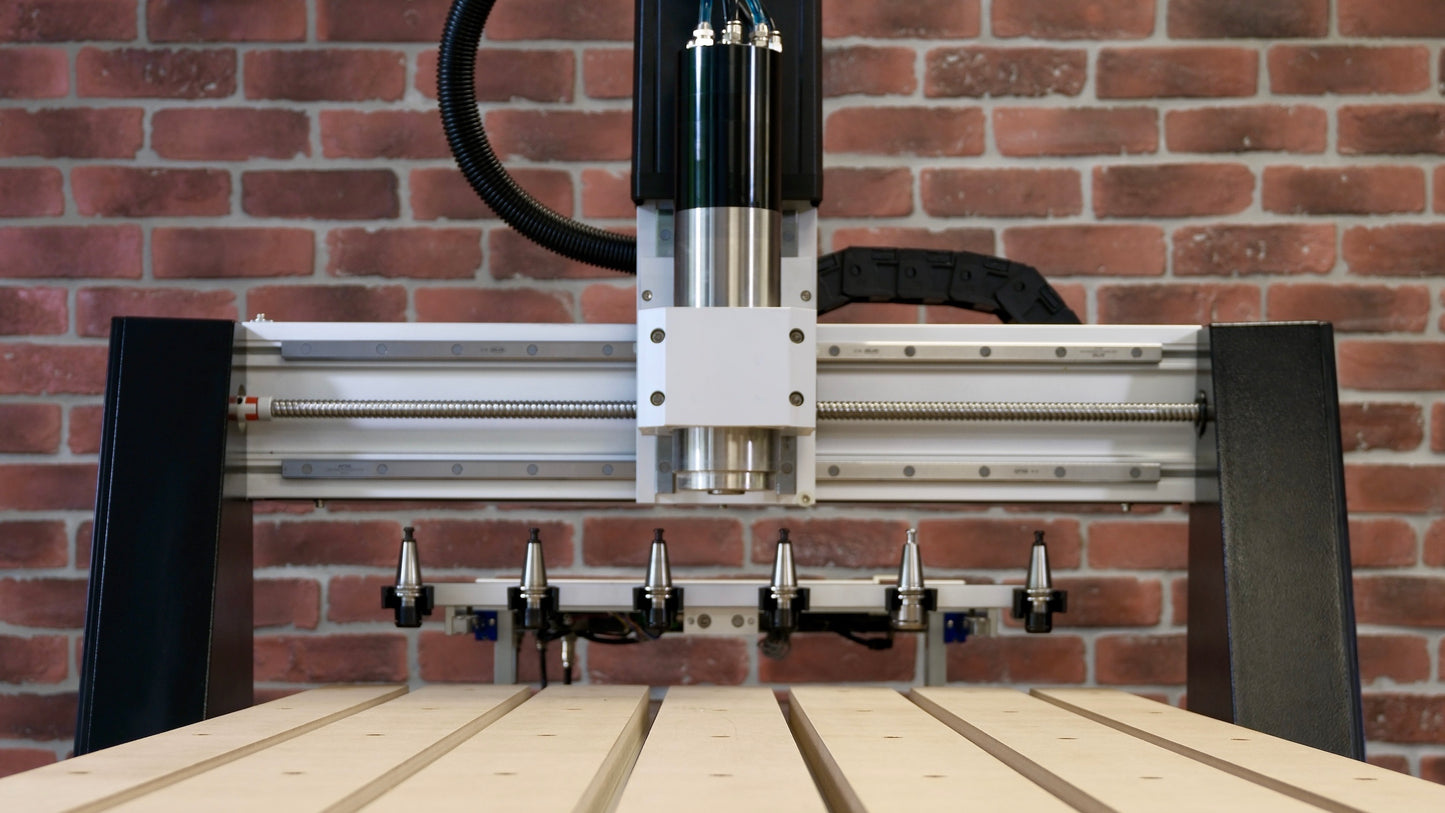

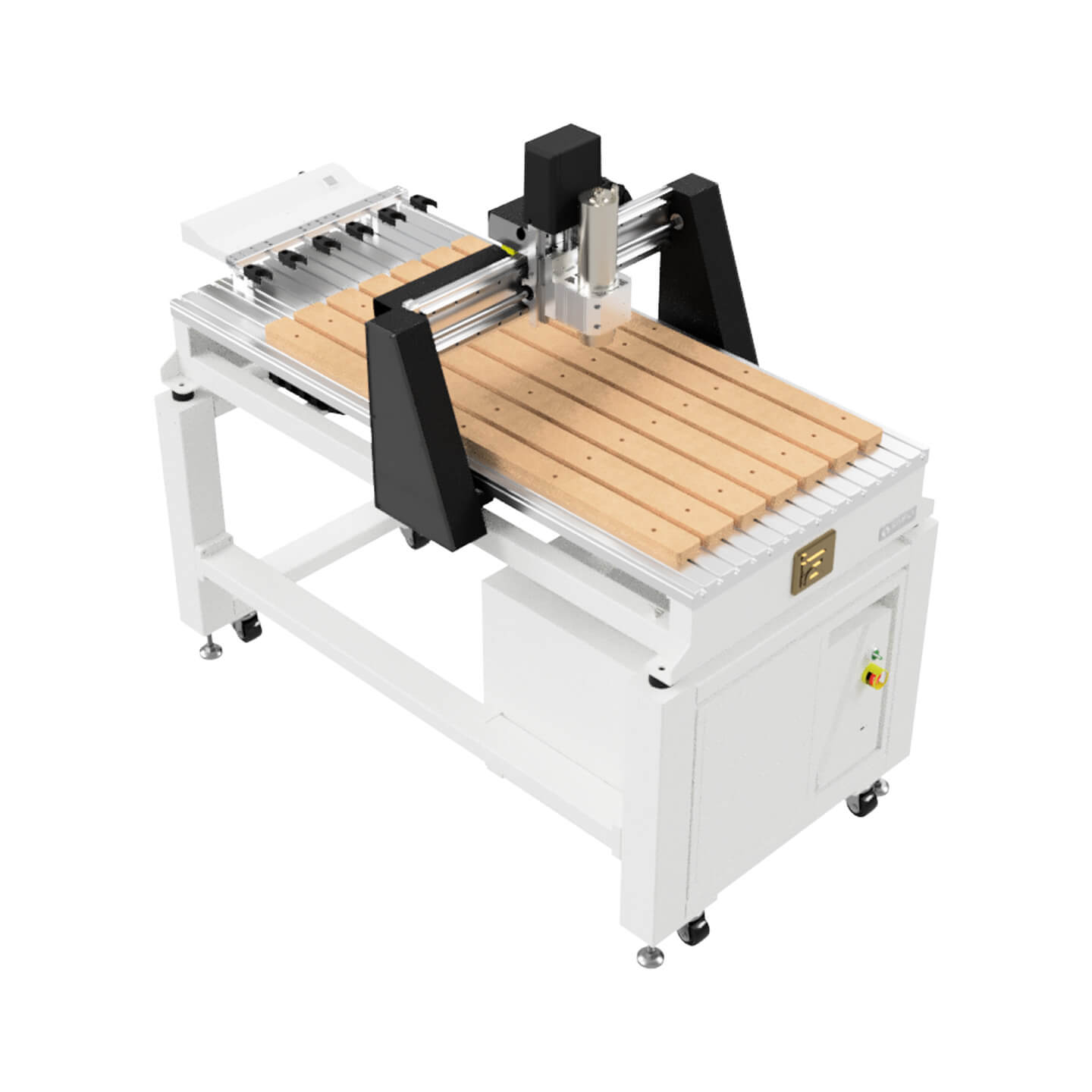

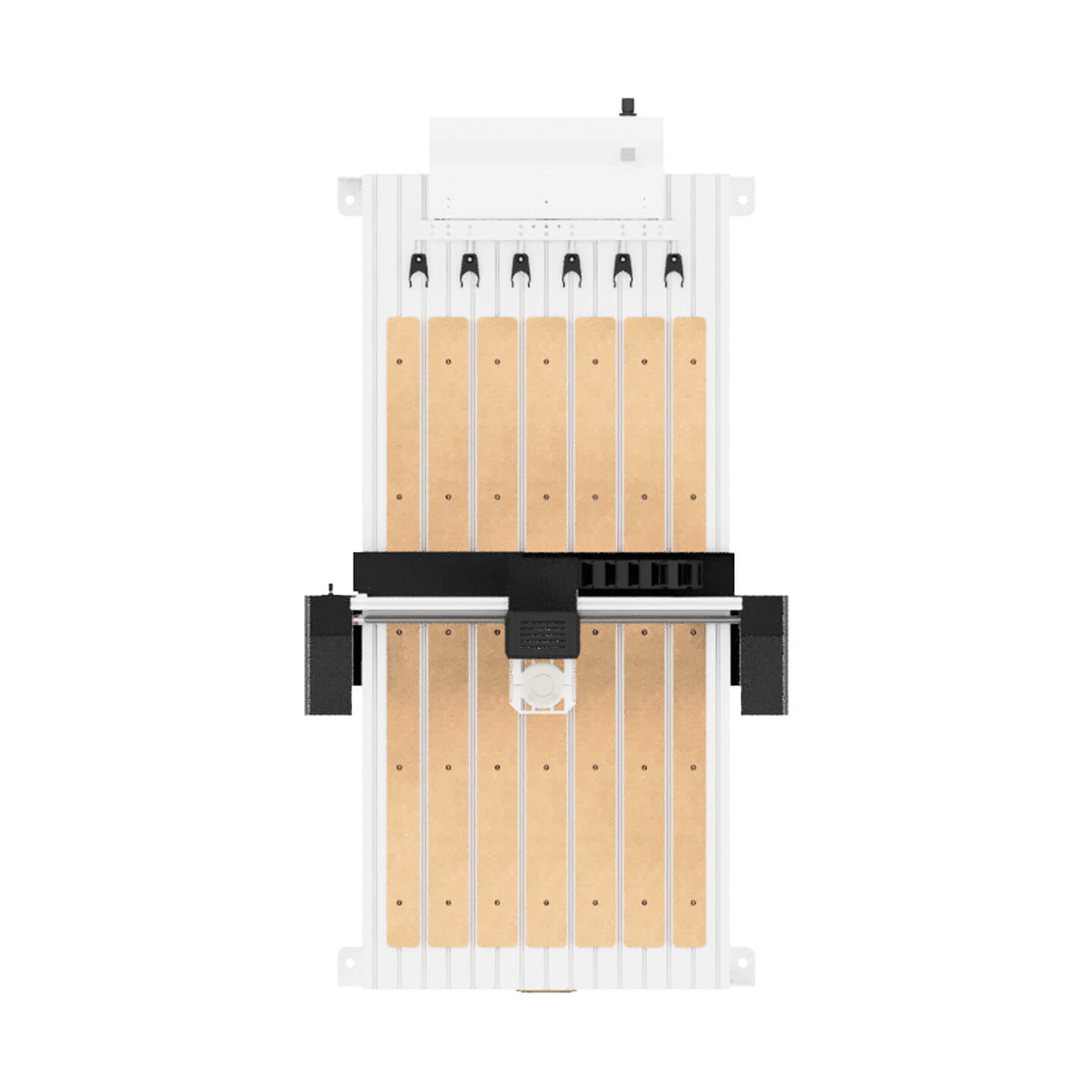

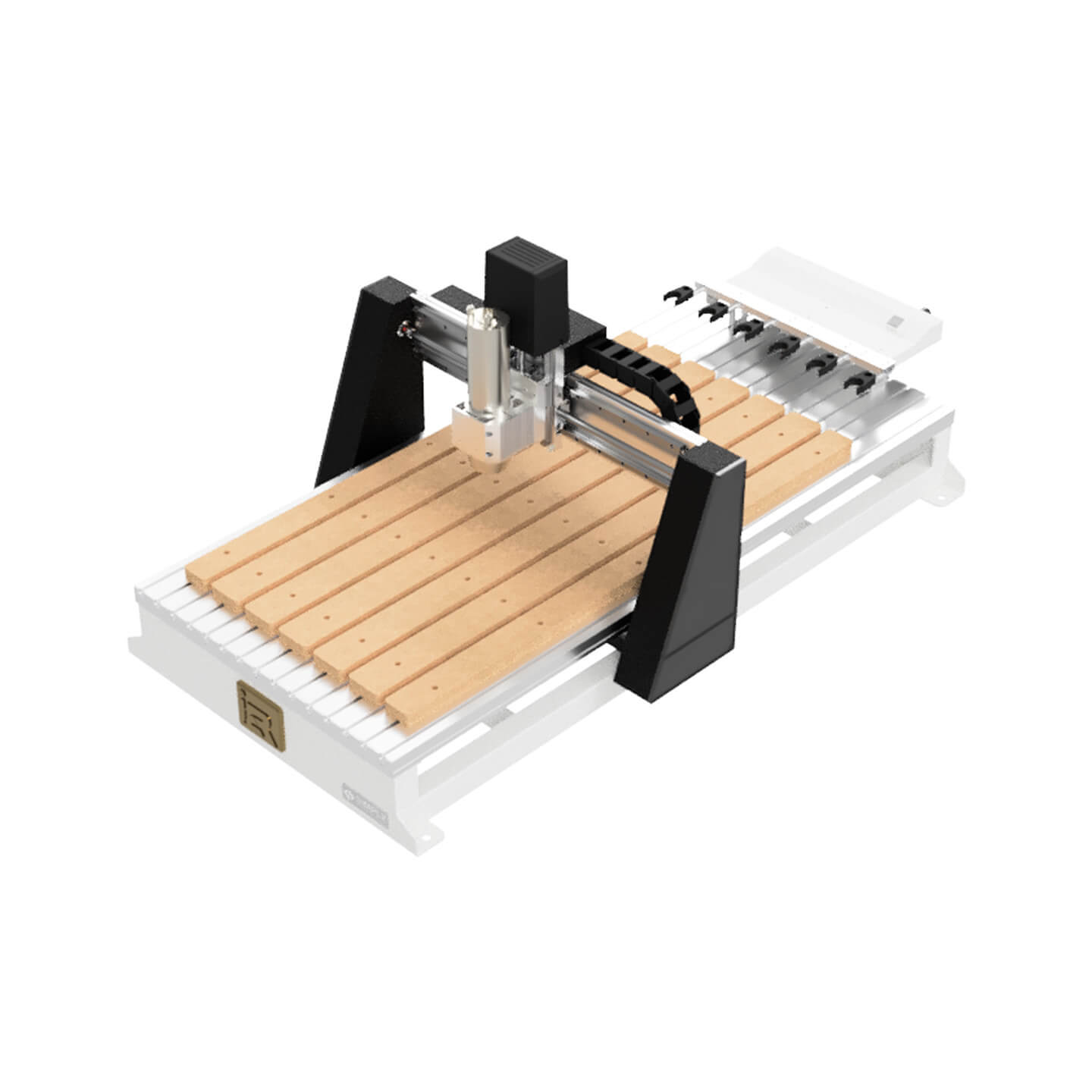

The PERFORMANCE 8ATC brings true production automation to a 24″ × 48″ platform with a built-in automatic tool changer for fast, hands-free tool swaps. It features the iCNC controller with a 15.6″ touchscreen, delivering wireless file transfer, intuitive operation, and full machine integration for professional workflows. Built on a welded steel frame with a 3HP liquid-cooled spindle and precision motion system, the 8ATC is ideal for cabinetry, furniture, signage, and shops that need speed, consistency, and repeatability.
The Performance Series CNC machines are engineered for precision, power, and versatility, making them the ideal choice for small manufacturers, professional woodworkers, and advanced hobbyists. Featuring 4-axis capability and rotary machining, this series is designed to handle complex, high-precision cutting applications with ease.
Each Performance Series machine is built on a rigid, all-welded steel frame and equipped with precision ball screws, prismatic guides, and a high-clearance gantry for smooth and accurate motion. The 3HP electro-spindle with integrated liquid cooling ensures consistent performance, reduced wear, and quiet operation, while the prewired rotary kit option allows for expanded 3D machining capabilities.

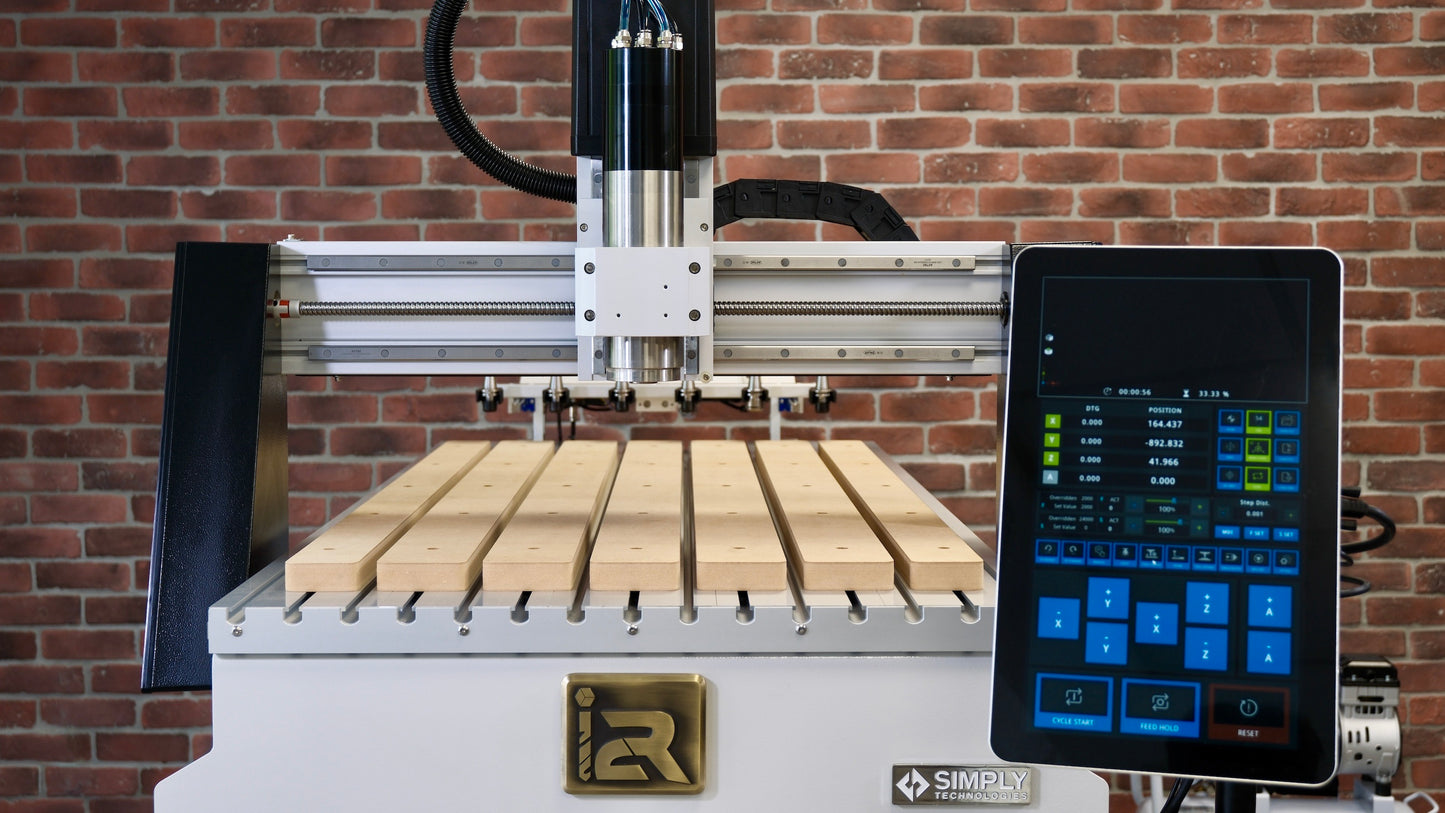

The Performance Series is powered by an iCNC Controller, featuring an advanced 15.6” touch screen interface, real-time visual toolpath display, and remote machine operation from any Android device, enhancing user experience and efficiency.

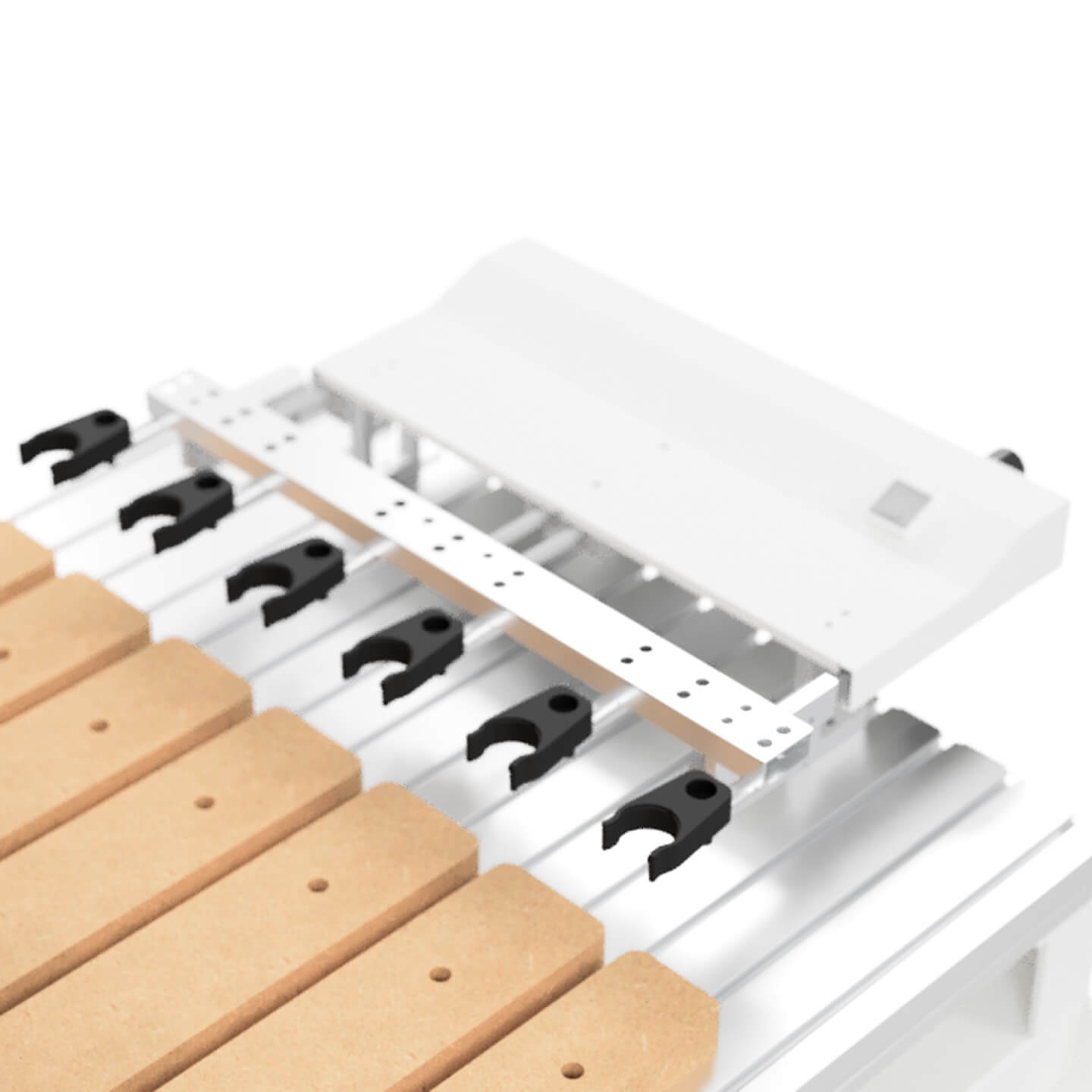

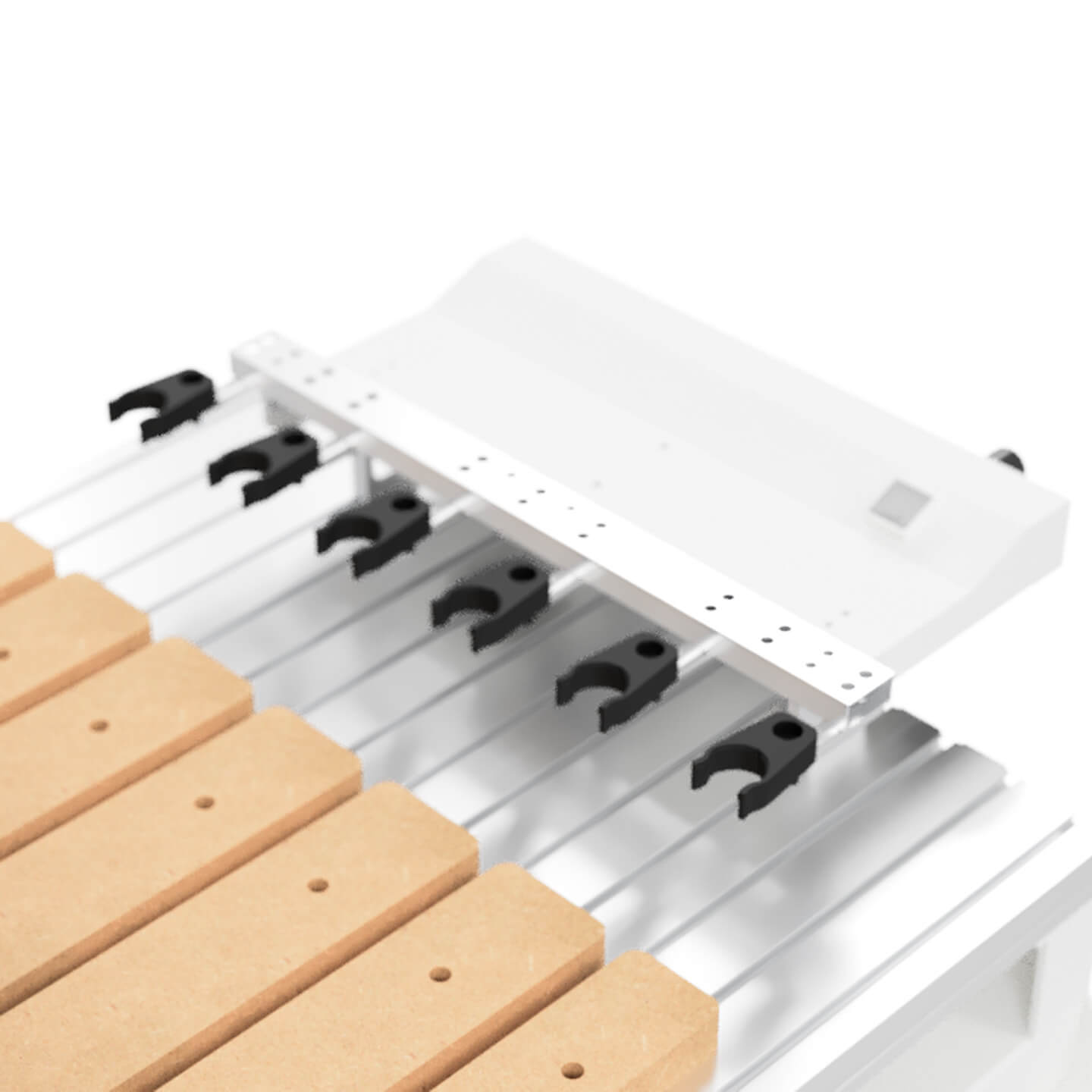

With four available footprint options (24” x 36”, 24” x 48”, 48″ x 24″, 48″ x 48″) and optional Auto Tool Changer, the Performance Series CNC machines provide the ideal balance of size and power, making them perfect for demanding projects requiring superior accuracy and reliability. The integrated MDF spoil board can be milled flat, ensuring a true perpendicular cutting surface, essential for precision work.
For those seeking industrial performance in a compact format, the Performance Series CNC is the ultimate solution.
| X-Axis Travel | 24" (610mm) |
| Y-Axis Travel | 47.63" (1210mm) |
| Z-Axis Travel | 5.9" (150mm) |
| Spindle Type | 3HP ATC Water Cooled |

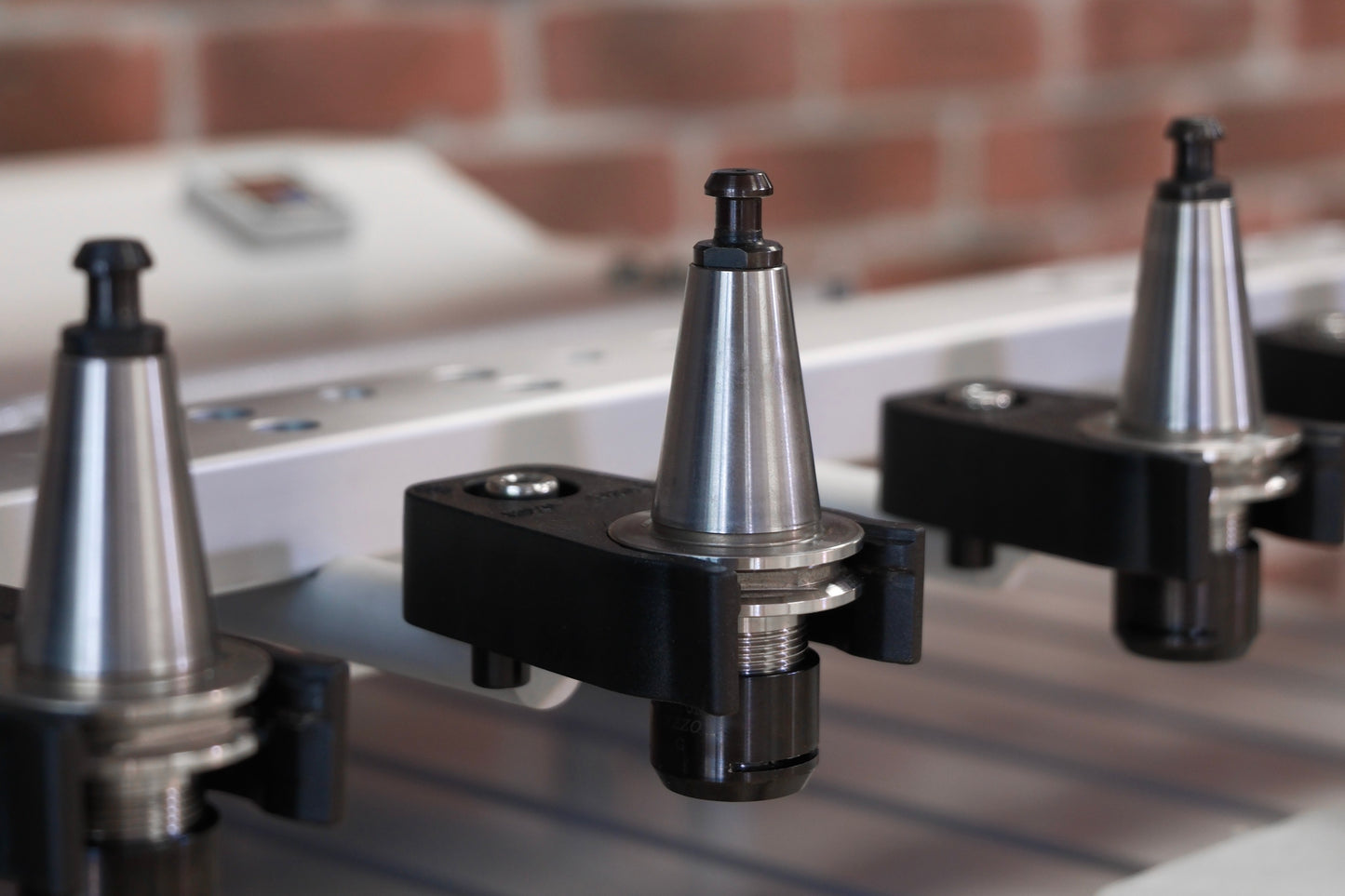

| Spindle Configuration | ISO20 ATC (1/4” & 1/2”) |
| Controller | iCNC (15.6” Touch Screen) |
| Rapid Feed Rate | 300ipm (5m/min) |
| Resolution | ± 0.00393" (0.10mm) |
| Power Requirements | 220V, 50-60Hz, 10A, 1-Phase |
| Machine Base | Welded Steel |
| Working Table | High Rigidity Aluminum Extrusion |
| Gantry Bridge | High Rigidity Aluminum Extrusion |
| Gantry Supports | Aluminum Alloy Gravity Cast |
| Machine Dimensions | 68.9"L x 37.36"W x 30.27”H (1750mm x 950mm x 770mm) |
| Machine Weight | 375.7 lbs (170.4 kgs) |
| Shipping Dimensions | 65"L x 39"W x 33”H (1650mm x 990mm x 838mm) |
| Shipping Weight | |
| Accessories Included | Tool Touch-Off Puck |
| 1/4” Collet + 1/2” Collet | |
| ATC Tool Holder | |
| Hold Down Clamps - Set of 2 (CNCHDC2) | |
| Wrench Set | |
| iCNC Monitor Arm | |
| Grease Gun | |
| Liquid Cooled Module |
