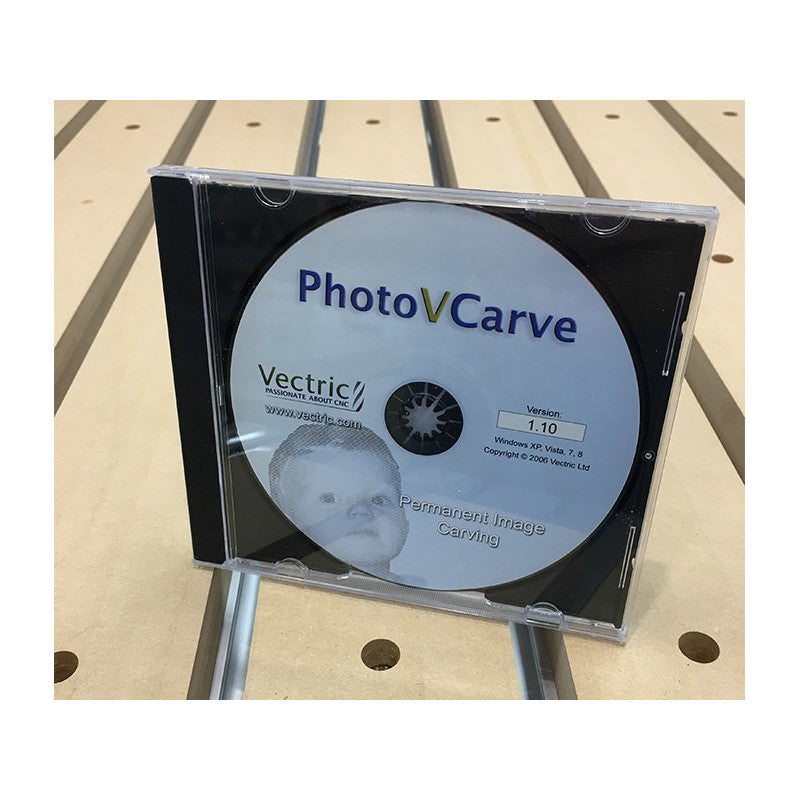

Axiom - PhotoVCarve Software
Couldn't load pickup availability
Item out of stock? - Call us and we'd be happy to reserve one for you when the next batch arrives!
Questions? - We are here to help!
Call us at 1-877-231-342
or local at 204-231-3429
PhotoVCarve has been developed to allow CNC machines to carve and engrave in a way that until now could only be done using an expensive laser marking systems.
Per Vectric all sales are final, no returns
* Compatible with Windows XP and above1. V-Groove Machining
PhotoVCarve creates lines of grooves that vary in width and depth to represent the detail in a photograph or image. The quality of the finished result is very dependant upon a high level of contrast between the material surface and the machined grooves. This information is very important to remember when cutting designs using the PhotoVCarve software.
PhotoVCarve machines dark areas in a photograph with wide groove and the lighter areas to have narrower ones. The software automatically calculates the toolpaths based on the cutter selected and maximum depth of groove required.
2. 3D Lithophane Machining
Lithophanes are 3D photographs that when viewed in normal lighting look a little dull and lifeless. But when back lit transform into stunning 3D pictures with depth and detail that cannot be seen in a flat 2D photograph.
Lithophanes originate from a process developed back in the mid 1800's for mass producing 3D pictures in porcelain. A 3D design was hand engraved into a thin sheet of bees wax that was placed over a lighted candle to show the effect of light passing through the wax. This master design was then used to make a mold for casting designs in porcelain. Varying levels of light to pass through the porcelain depending upon the thickness
3. 3D Grayscale Machining
PhotoVCarve automatically converts a grayscale image into a 3D height map that can then be carved.
The example below shows how the grayscale image for a 3D model can be converted to a 3D height map and machined using a Ball nose cutter.
For more information visit www.vectric.com
Download trial version here
